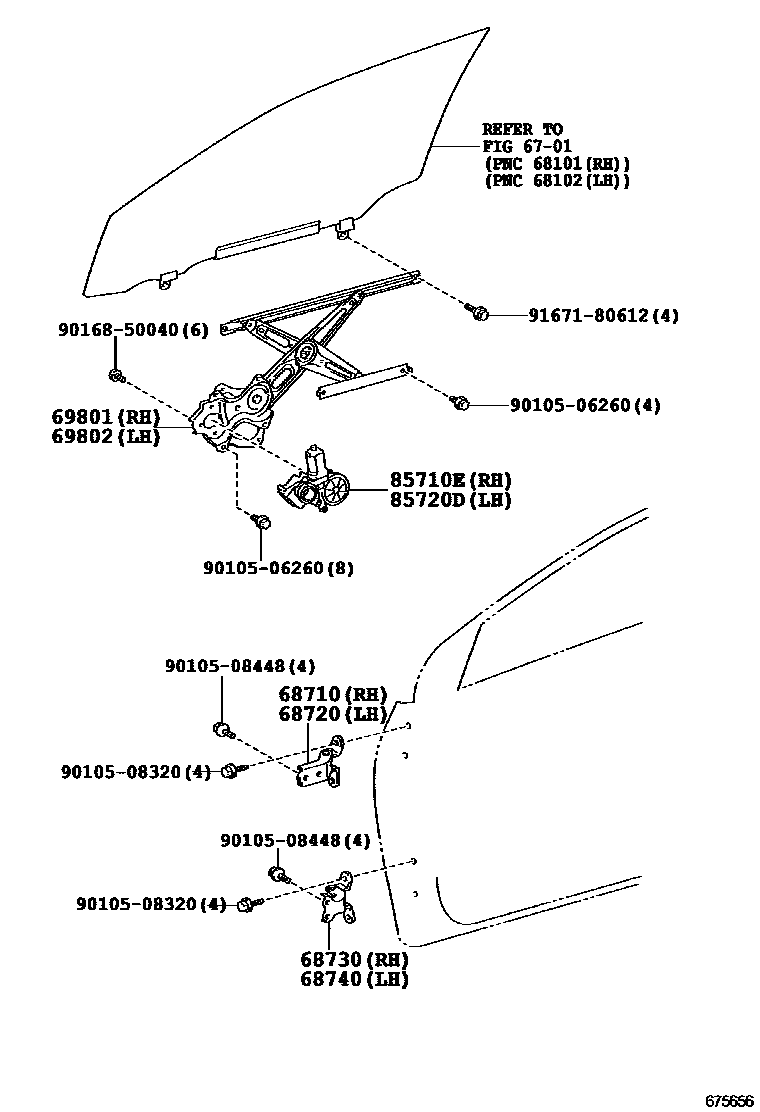

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iZZE142..SEG..HTWCF200803-201105

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iZZE14#200803-201105

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02110iZZE142..SEG..HTWCF200803-201105

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02110iZZE142..SEG..HTWCF200803-201105

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02250iZRE14#;ZZE142..CNG200803-201105

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02260iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201105

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02350iZZE142..SEG..HTWCF200803-201105

main85710-0D100iZZE14#..CE,XLI200803-201403

LOW GRADE PACKAGE

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02330iZZE14#200803-201105

9010506260

main90105-06260

9010508320

main90105-08320

9010508448

main90105-08448

9016850040

main90168-50040

9167180612

main91671-80612

14 parts on this diagram · 1 diagram in section
