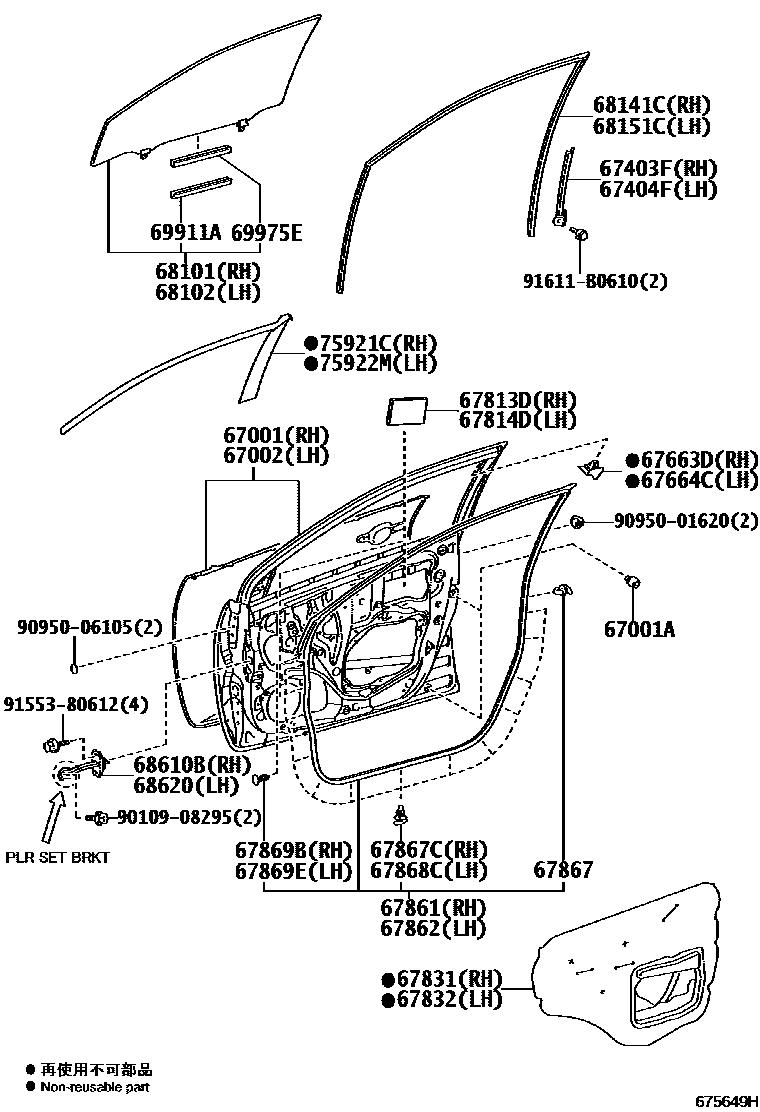

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02901iZZE142..CNG200803-201105

sub67001-12A30

67001ACUSHION, FRONT DOOR PANEL

main90541-09138iZZE14#200803-200807

sub90541-09124

main90541-09143iZZE142..SEG..HTWCF200808-201105

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02901iZZE142..SEG..HTWCF200803-201105

sub67002-12A30

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02130iZZE142..SEG..HTWCF200803-201105

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02130iZZE142..SEG..HTWCF200803-201105

67663DGARNISH, DOOR FRAME, RH

main67663-48010iZZE142..SEG..HTWCF200803-201105

67664CGARNISH, DOOR FRAME, LH

main67664-48010iZRE143200803-201105

67813DSHEET, QUARTER PANEL SILENCER, RH

main67813-12030iZRE14#,ZZE142201305

main67817-47010iZZE142..CNG200803-201304

67814DSHEET, QUARTER PANEL SILENCER, LH

main67813-12030iZRE14#,ZZE142201305

main67817-47010iZRE143200803-201304

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02260iZRE14#;ZZE142..CNG200803-201105

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02260iZZE142..SEG..HTWCF200803-201105

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02240iZZE142..SEG..HTWCF200803-201105

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02240iZZE142..SEG..HTWCF200803-201105

67867CLIP, DOOR WEATHERSTRIP

main90467-04034iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201105

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iZRE143200803-201105

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iZZE142..SEG..HTWCF200803-201105

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iZZE142..SEG..HTWCF200803-201105

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iZRE143200803-201105

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02300iZZE14#..BZ,MXC200803-200910

*TEM,T=3.5,GREEN

sub68101-02301

main68101-02301iZZE142..SEG..HTWCF200911-201109

*TEM,T=3.5,GREEN

sub68101-02302

main68101-02302iZRE14#201110-201205

*TEM,T=3.5,GREEN

sub68101-02303

main68101-02303iZRE14#,ZZE142201206

*TEM,T=3.5,GREEN

main68101-02330iZZE142..VEN200809-200910

*TEM,T=3.5,GREEN

sub68101-02331

main68101-02331iZZE142..HTWC..VEN200911-201109

*TEM,T=3.5,GREEN

sub68101-02332

main68101-02332iZZE142201110-201206

*TEM,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02300iZZE14#..BZ,MXC200803-200910

*TEM,T=3.5,GREEN

sub68102-02301

main68102-02301iZRE143200911-201109

*TEM,T=3.5,GREEN

sub68102-02302

main68102-02302iZRE14#201110-201205

*TEM,T=3.5,GREEN

sub68102-02303

main68102-02303iZRE14#,ZZE142201206

*TEM,T=3.5,GREEN

main68102-02330iZZE142..VEN200809-200910

*TEM,T=3.5,GREEN

sub68102-02331

main68102-02331iZZE142200911-201109

*TEM,T=3.5,GREEN

sub68102-02332

main68102-02332iZZE142201110-201206

*TEM,T=3.5,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-02270iZZE142..SEG..HTWCF200803-201004

main68141-02300iZRE143201004-201403

main68141-12560iZZE142..CNG200809-201105

68151CRUN, FRONT DOOR GLASS, LH

main68151-02250iZZE142..SEG..HTWC;ZRE143,ZZE14#..(ALT,CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201004

main68151-02280iZRE143201004-201403

main68151-12260iZZE142..CNG200809-201105

68610BCHECK ASSY, FRONT DOOR, RH

main68610-02230iZZE142..CNG200803-201105

main68610-02230iZRE14#;ZZE142..CNG201103-201310

PLR SET BRKT:BLACK

main68610-02231iZRE14#,ZZE142201310

PLR SET BRKT:SILVER

68620CHECK ASSY, FRONT DOOR, LH

main68610-02230iZZE142..SEG..HTWCF200803-201105

main68610-02230iZRE14#;ZZE142..CNG201103-201310

PLR SET BRKT:BLACK

main68610-02231iZRE14#,ZZE142201310

PLR SET BRKT:SILVER

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-13010iZZE14#200803-200910

main69955-47010iZZE142..SEG..HTWCF200911-201206

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-16020iZZE14#200803-200910

main69975-47010iZZE142..SEG..HTWCF200911-201206

75921CTAPE, BLACK OUT, NO.1 RH

main75921-02140iZZE142..CNG200809-201105

main75921-02310iZRE14#201305-201403

75922MTAPE, BLACK OUT, NO.1 LH

main75922-02140iZZE142200809-201105

main75922-02310iZRE14#201305-201403

9010908295

main90109-08295

9095001620

main90950-01620

9095006105

main90950-06105

9155380612

main91553-80612

91611B0610

main91611-B0610

33 parts on this diagram · 2 diagrams in section
