SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
sub55713-02090
5701
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
6105
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211CRAIL, ROOF SIDE, RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
LOW GRADE PACKAGE
61611PANEL, QUARTER, RH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61951BRACKET, SIDE TRIM, RH
62152BPAD, COWL SIDE SILENCER, NO.2
62554BPAD, PILLAR, NO.4
62623EPAD, QUARTER WHEEL HOUSE, INNER REAR RH
64194BPAD, BACK PANEL SILENCER, UPPER
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
LOW GRADE PACKAGE
75941ASTRIPE, CENTER PILLAR, RH
8826612C00CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-12C00
9017906308
main90179-06308
9054111010
main90541-11010
9151580818
main91515-80818
91671A0614
main91671-A0614

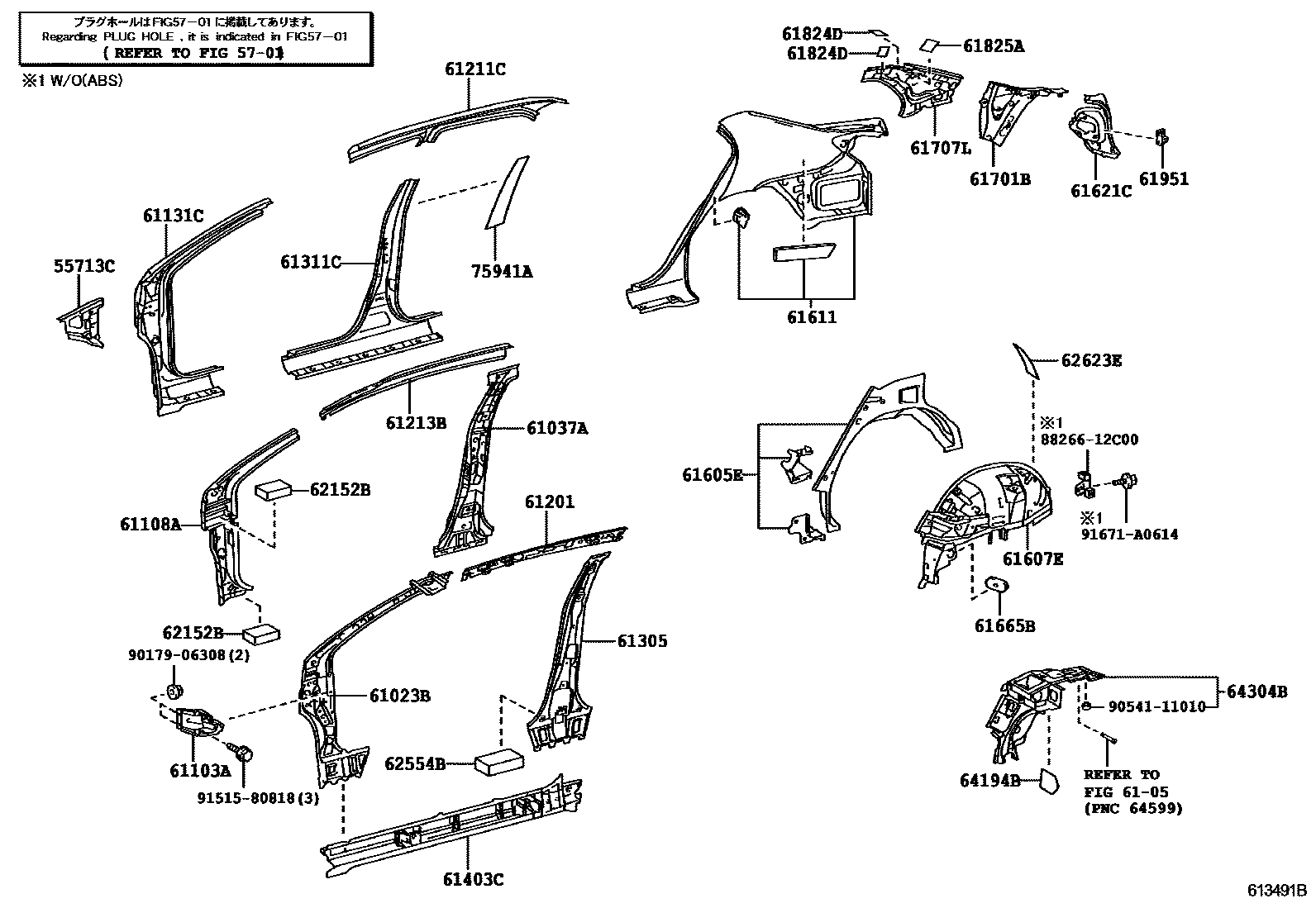

35 parts on this diagram · 2 diagrams in section
