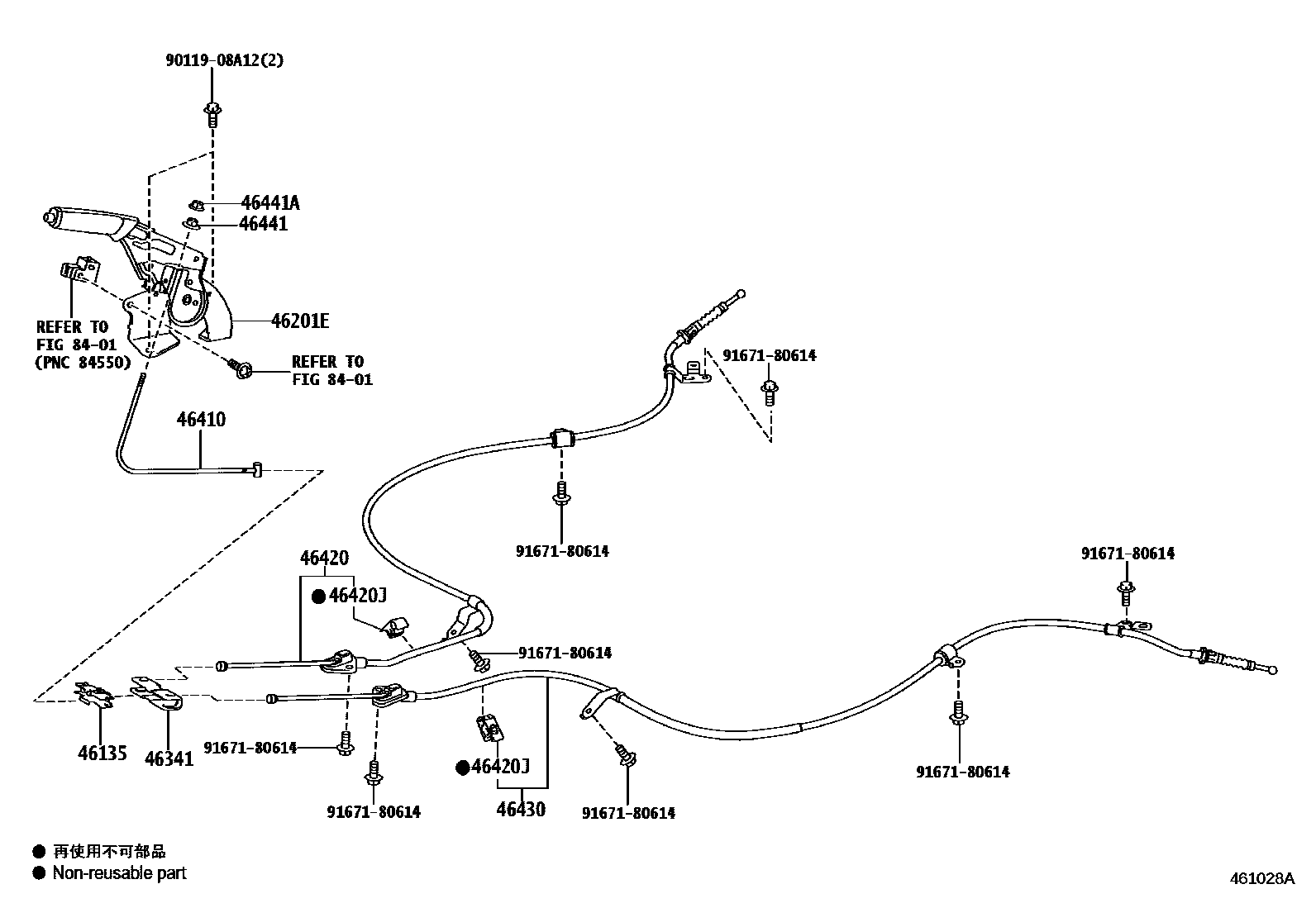

PARKING BRAKE & CABLE

46135STOPPER, PARKING BRAKE CABLE END

main46135-12010iZRE143200803-201105

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02420-B1iZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201403

DK.GRAY,TRIM1#

main46201-02420-E0iZZE142..MXC200803

ASH BROWN,TRIM4#

main46201-02430-B1iZRE14#..ALT,SEG201103-201403

DK.GRAY,TRIM4#

main46201-02430-E0iZRE143..ALT200803-201103

ASH BROWN,TRIM4#

main46201-12370-B0iZZE142..GLI200809-201010

DK.GRAY,TRIM1#

sub46201-12370

main46201-12370-C0iZZE142..GLI..HTWC201010-201411

BLACK,TRIM1#

sub46201-12370

main46201-12450-B0iZZE142..XEI..VEN200809-201010

DK.GRAY,TRIM1#

sub46201-12450

main46201-12450-C0iZZE142..XEI201010-201411

BLACK,TRIM1#

sub46201-12450

46341EQUALIZER, PARKING BRAKE

main46341-12040iZZE142..CNG200803-201105

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02160iZRE14#201308-201403

main46410-02170iZRE143200803-201307

sub46410-02160

main46410-12320iZZE142200809-201105

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02220iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201204

sub46420-12681

main46420-02350iZRE14#,ZZE142201204

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-02040iZZE14#200810-200901

(L)

main46402-12020iZZE142..SEG..HTWCF200803-201105

(J)

main46402-12020iZRE14#;ZZE142..CNG201103

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02200iZZE14#200810-200901

(L)

main46430-02220iZZE14#200803-200808

sub46430-02221

main46430-02221iZZE14#200809-200810

main46430-02230iZZE142..SEG..HTWCF200901-201203

sub46430-02360

main46430-02360iZRE14#,ZZE142201204

main46430-12570iZZE14#200810-200901

(J)

sub46430-12571

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZZE142..SEG..HTWCF200803-201105

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iZRE143,ZZE14#200803-201104

8401

9011908A12

main90119-08A12

9167180614

main91671-80614

12 parts on this diagram · 1 diagram in section
