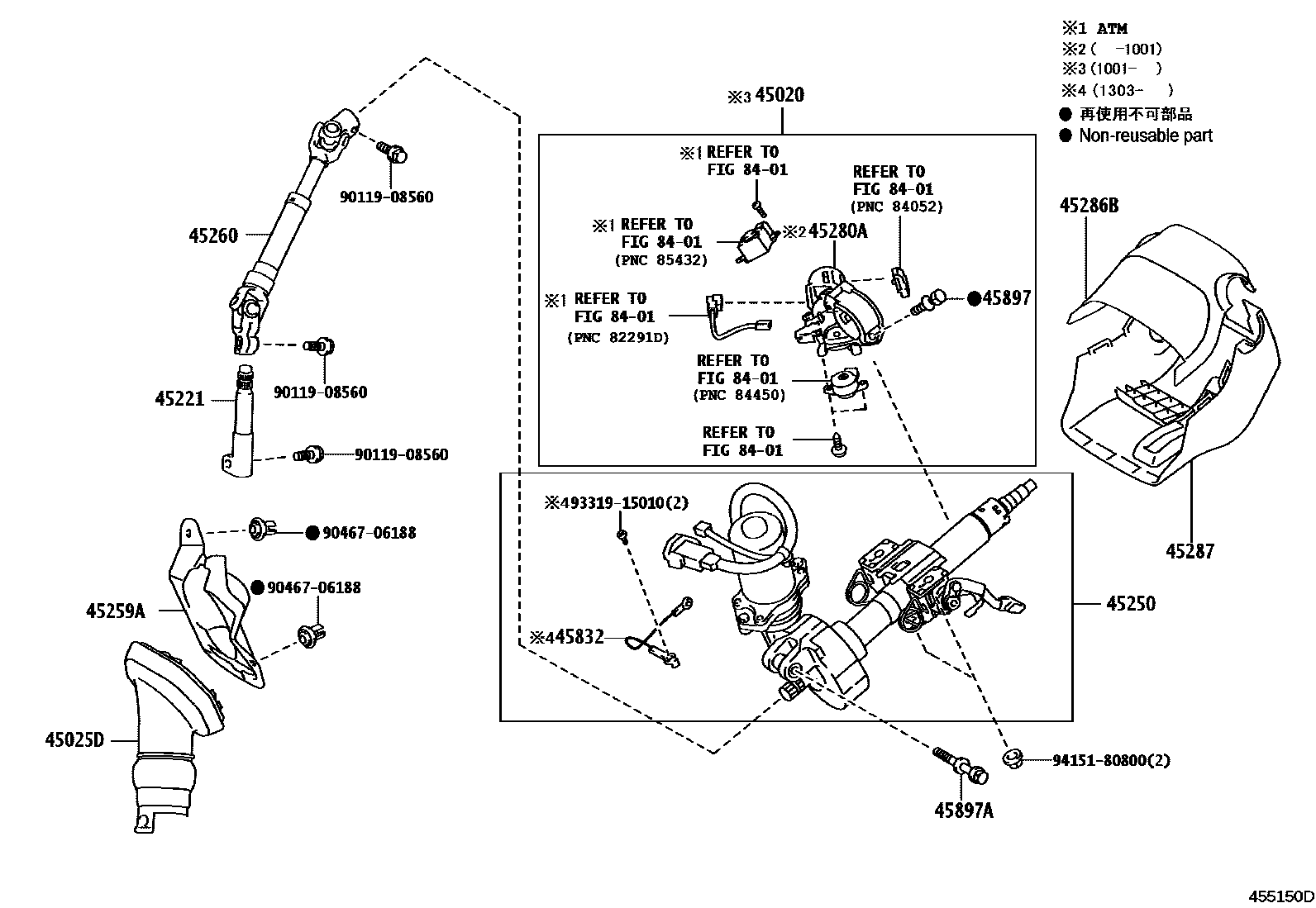

STEERING COLUMN & SHAFT

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-02230iZZE14#..MTM201001-201006

sub45020-02231

sub45897-12050

main45020-02231iZZE14#..MTM..(HTWC,HTWCF)201007-201105

main45020-02240iZZE142..SEG..HTWCF201001-201006

sub45020-02241

sub45897-12050

main45020-02241iZZE14#..ATM..(HTWC,HTWCF)201007-201105

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02170iZZE142..SEG..HTWCF200803-201105

45221SHAFT, STEERING INTERMEDIATE

main45221-12350iZZE142..SEG..HTWCF200803-201105

45250COLUMN ASSY, STEERING

main45250-12E02iZZE142..SEG..HTWCF200803-201105

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02150iZZE142..SEG..HTWCF200803-201105

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12620iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201206

main45260-12650iZRE14#,ZZE142201207-201302

sub45260-12780

main45260-12780iZRE14#,ZZE142201303

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-02110iZZE14#..ATM200803-201001

main45280-02120iZZE14#..MTM200803-201001

45286BCOVER, STEERING COLUMN, UPR

main45286-02380-B0iZZE142..CNG200803-201105

MD.GRAY,TRIM1#

main45286-02380-B1iZZE142..CNG;ZRE14#..GLI,XEI,XLI201103-201411

DK.GRAY,TRIM1#

main45286-02380-B1iZRE14#..ALT,SEG201103-201403

DK.GRAY,TRIM4#

main45286-02380-E0iZZE142..(CE,SEG)..HTWC200803-201103

ASH BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-02370-B0iZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201105

MD.GRAY,TRIM1#

main45287-02370-B1iZRE14#..ALT,SEG201103-201403

DK.GRAY,TRIM4#

main45287-02370-B1iZZE142..CNG;ZRE14#..GLI,XEI,XLI201103-201411

DK.GRAY,TRIM1#

main45287-02370-E0iZZE142..(CE,SEG)..HTWC200803-201103

ASH BROWN,TRIM4#

45832CABLE, TILT STEERING SUPPORT BOND

main45832-21010iZRE14#,ZZE142201303

45897BOLT, STEERING LOCK SET

main45897-12020iZZE14#200803-201001

main45897-12050iZRE143201001-201105

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZZE142..SEG..HTWCF200803-201105

8401

9011908560

main90119-08560

9046706188

main90467-06188

9331915010

main93319-15010

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
