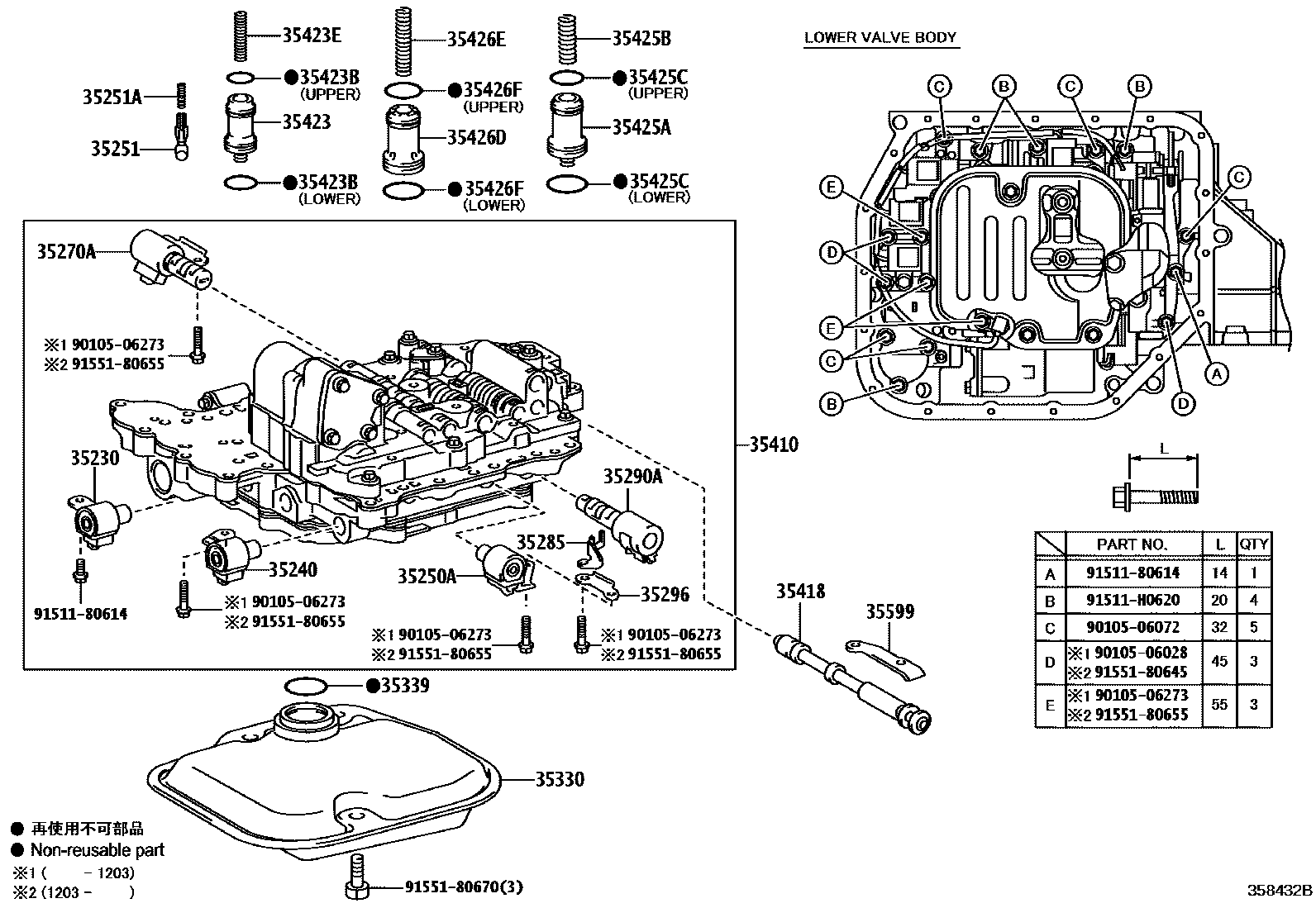

VALVE BODY & OIL STRAINER (ATM)

0001 1U341E 0002 1U241E 0003 1U341E 0004 1U341E 0005 1U241E

35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

main35230-33030iZRE143¥13,400201003-201403

main35230-52020iZZE142..SEG..HTWCF¥16,000200803-201201

sub35230-52021¥11,100

main35230-52021iZRE142,ZZE142..ATM¥11,100201201

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-21010iZRE143¥13,400201003-201403

main35240-52050iZZE142..SEG..HTWCF¥16,000200803-201201

sub35240-52051¥11,100

main35240-52051iZRE142,ZZE142..ATM¥11,100201201

35250ASOLENOID ASSY, TRANSMISSION, NO.3

main35250-52080iZZE142..SEG..HTWCF¥11,100200803-201105

35251BODY, CHECK BALL

main35251-30020iZZE142..SEG..HTWCF¥1,020200803-201105

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iZZE142..SEG..HTWCF¥90200803-201105

35270ASOLENOID ASSY, TRANSMISSION 3WAY LOCK UP

main35270-52011iZZE142..SEG..HTWCF¥3,790200803-201105

35285PLATE, SOLENOID LOCK

main35285-33050iZRE143¥320201003-201403

main35285-52030iZZE142..ATM..CNG¥260200803-201105

35290ASOLENOID ASSY, LINE PRESSURE CONTROL

main35290-52040iZRE142..ATM;ZZE142..ATM..CNG¥7,700200803-201105

35296PLATE, SOLENOID LOCK, NO.3

main35296-12010iZZE142..SEG..HTWCF¥130200803-201105

main35296-33030iZRE143¥340201003-201403

35330STRAINER ASSY, VALVE BODY OIL

main35330-0W020iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)¥4,390200803-201203

sub35330-0W021¥3,040

main35330-0W021iZRE142,ZZE142..ATM¥3,040201203

main35330-28010iZRE143¥3,780201003-201403

35339GASKET, OIL STRAINER

main90301-32010iZZE142..SEG..HTWCF¥230200803-201403

main90301-32015iZRE142,ZZE142..ATM¥190201307

35410BODY ASSY, TRANSMISSION VALVE

main35410-12790iZRE142..ATM¥116,000201103-201301

sub35410-12791¥80,100

sub35330-0W021¥3,040

main35410-12791iZRE142..ATM¥80,100201301-201403

main35410-33180iZRE143¥96,200201003-201403

main35410-52160iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803-201301

sub35410-52161

sub35330-0W021¥3,040

main35410-52161iZZE142..ATM201301

35418VALVE, MANUAL

main35418-21011iZRE143¥2,720201003-201403

main35418-52020iZRE142..ATM;ZZE142..ATM..CNG¥1,950200803-201105

35423PISTON, B-2 ACCUMULATOR

main35403-52020iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)¥820200803-201105

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-20010iZZE142..ATM..CNG¥190200803-201105

UPPER

main90301-29011iZRE142..ATM;ZZE142..ATM..CNG¥190200803-201105

LOWER

35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

main90501-18119iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)¥220200803-201105

35425APISTON, C-2 ACCUMULATOR

main35405-52020iZRE142..ATM;ZZE142..ATM..CNG¥880200803-201105

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-24036iZRE142..ATM;ZZE142..ATM..CNG¥200200803-201105

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-22010iZZE142..SEG..HTWCF¥190200803-201105

UPPER

main90301-35004iZRE142..ATM;ZZE142..ATM..CNG¥190200803-201105

LOWER

35426DPISTON, C-3 ACCUMULATOR

main35406-21010iZRE143¥1,830201003-201403

main35426-52020iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)¥2,170200803-201105

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-23149iZZE142..SEG..HTWCF¥290200803-201105

main90905-01035iZRE143¥270201003-201403

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-24016iZRE142..ATM;ZZE142..ATM..CNG¥190200803-201105

UPPER

main90301-29011iZZE142..ATM..CNG¥190200803-201105

LOWER

main90301-30007iZRE143¥230201003-201403

35599COVER, MANUAL DETENT SPRING

main35599-21010iZRE143¥320201003-201403

main35599-52010iZRE142..ATM;ZZE142..ATM..CNG¥260200803-201105

9010506028

main90105-06028¥80

9010506072

main90105-06072¥110

9010506273

main90105-06273¥170

9151180614

main91511-80614¥100

91511H0620

main91511-H0620¥110

9155180645

main91551-80645¥130

9155180655

main91551-80655¥80

9155180670

main91551-80670¥80

31 parts on this diagram · 5 diagrams in section
