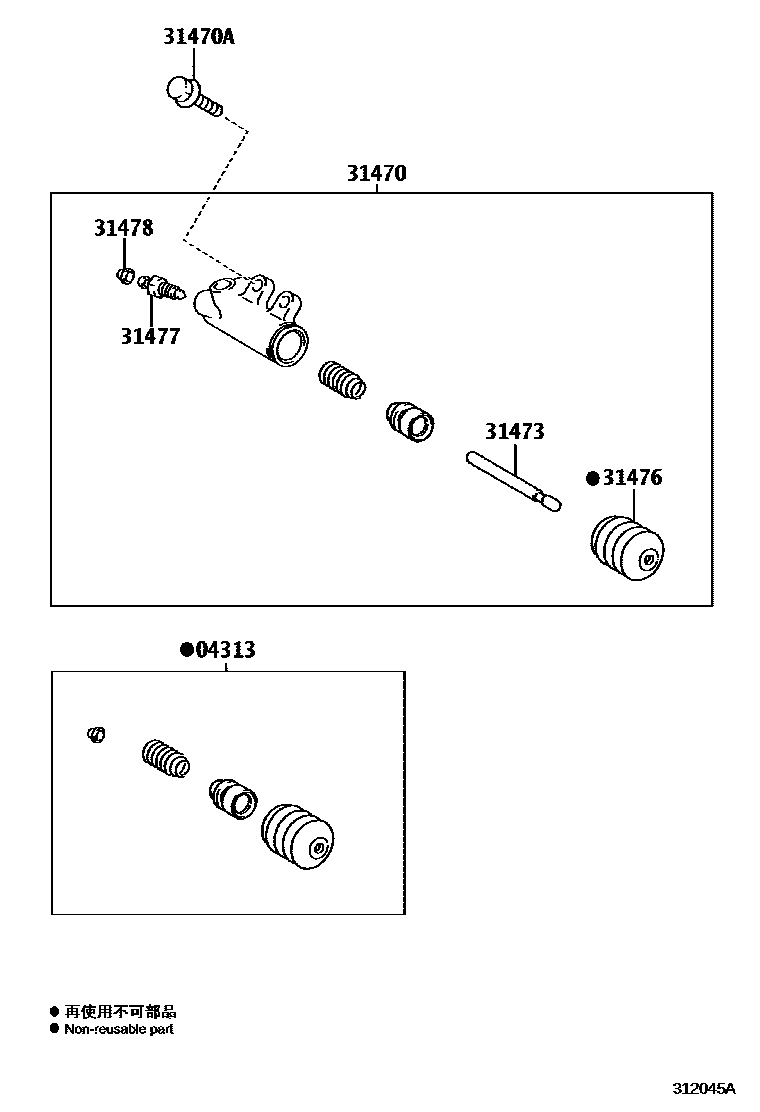

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17040iZZE142..MTM..CNG¥860200803-201105

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12140iZZE142..MTM..CNG¥7,400200803-201105

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iZZE14#..MTM¥170200803-201411

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE142..MTM..CNG¥470200803-201105

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iZZE142..MTM..CNG¥230200803-201105

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iZZE142..MTM..CNG¥200200803-201105

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iZZE142..MTM..CNG¥160200803-201105

7 parts on this diagram · 2 diagrams in section
