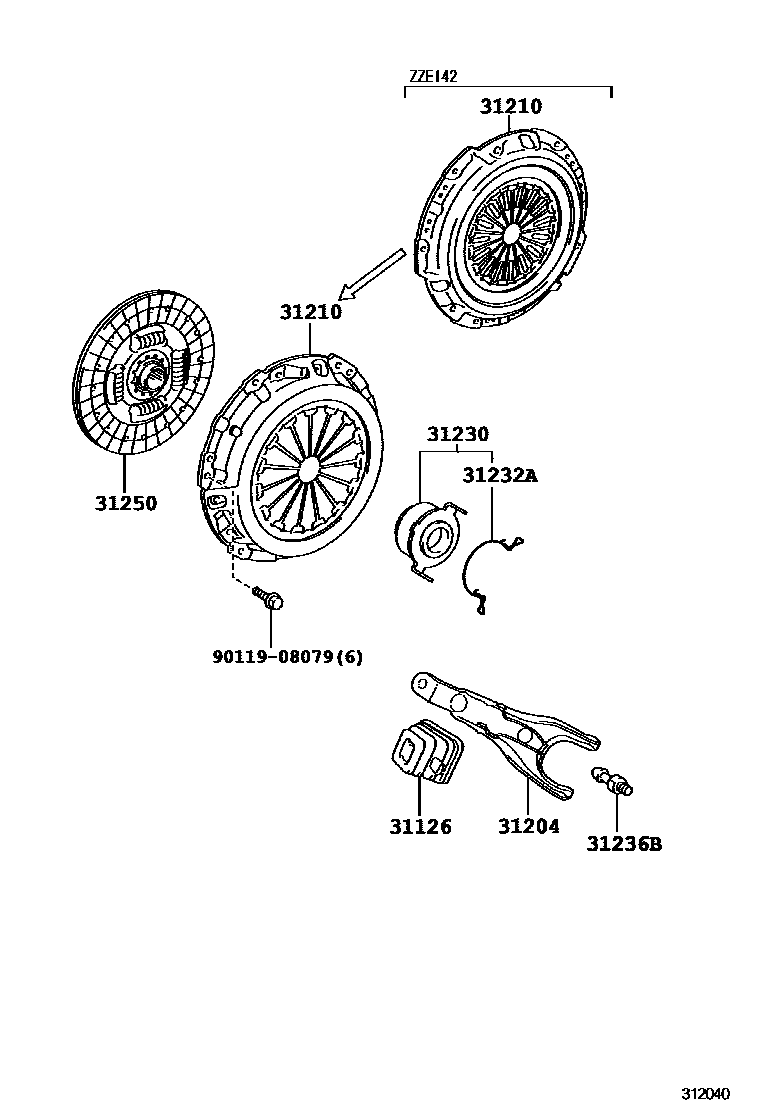

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZZE142..MTM..CNG200803-201105

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZE14#..MTM..(HTWC,HTWCF)200803-201105

31210COVER ASSY, CLUTCH

main31210-02280iZRE142..MTM201103-201403

MARK 31210-02280

main31210-02310iZZE142..MTM..VEN200809-201010

main31210-12310iZZE142..MTM200803-201105

main31210-12340iZRE142..MTM201103-201111

MARK 31210-12340

main31210-52052iZZE141..MTM200803

sub31210-52053

31230BEARING ASSY, CLUTCH RELEASE

main31230-12191iZZE142..MTM..CNG200803-201105

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZZE14#..MTM..(HTWC,HTWCF)200803-201105

31236BSUPPORT, RELEASE FORK

main31236-12020iZZE142..MTM..CNG200803-201105

31250DISC ASSY, CLUTCH

main31250-02280iZRE142..MTM201103-201111

TYPE A:REFER ILLUST.

main31250-02281iZRE142..MTM201111-201403

TYPE A:REFER ILLUST.

sub31250-02282

main31250-12600iZRE142..MTM201103-201111

TYPE B:REFER ILLUST.

sub31250-12601

main31250-52050iZZE142..MTM200803-201105

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section
