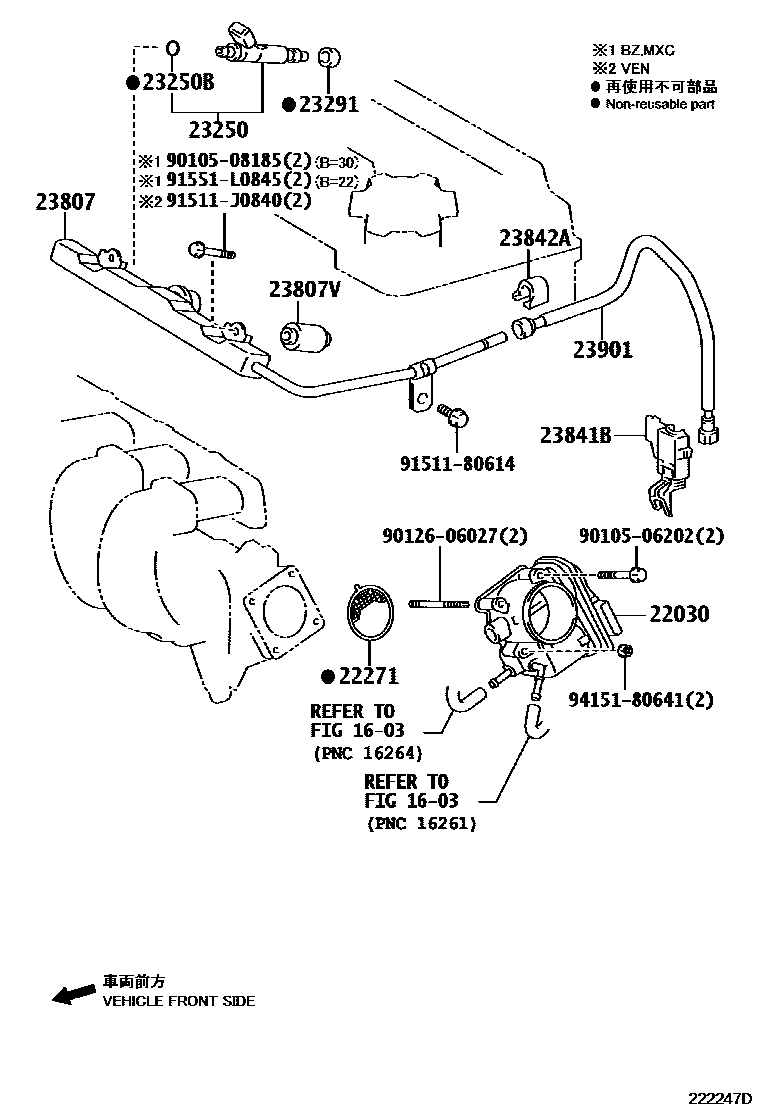

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-22041i1ZZFE..ZZE142..CNG200803-201105

main22030-22051i3ZZFE..ZZE141200803

22271GASKET, THROTTLE BODY

main22271-0D060i3ZZFE..ZZE141200803

sub22271-21060

main22271-22090i1ZZFBE..ZZE142..XEGLI200803-201105

main22271-75031i2ZRFE..ZRE142200803-201403

23250INJECTOR ASSY, FUEL

main23209-0D030i3ZZFE..ZZE141200803

main23209-22080i1ZZFBE..ZZE142..XEGLI200803-201003

main23209-22090i1ZZFE..ZZE142200803-201105

main23209-39146i2ZRFE..ZRE142201103-201403

main23209-39205i2ZRFBE,3ZRFBE..ZRE14#201003-201403

23250BRING, O(FOR FUEL INJECTOR)

main90301-07030i3ZZFE..ZZE141200803

main90301-07037i1ZZFBE..ZZE142..SEG200803-201105

23291INSULATOR, INJECTOR VIBRATION

main23291-22010i3ZZFE..ZZE141200803

main23291-22020i1ZZFE..ZZE142..CNG200803-201105

main23291-28020i3ZRFBE..ZRE143201003-201403

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22030i1ZZFE,3ZZFE..ZZE14#200803-200808

sub23807-22061

main23807-22050i1ZZFBE..ZZE142..SEG200803-201003

sub23807-22061

main23807-22060i1ZZFE..ZZE142200808-201208

sub23807-22061

main23807-22061i1ZZFE..ZZE142201208

main23814-37050i2ZRFE..ZRE142201103-201108

sub23814-37051

main23814-37051i2ZRFE..ZRE142201108-201403

main23814-37070i2ZRFBE,3ZRFBE..ZRE14#201003-201403

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i3ZRFBE..ZRE143201003-201403

main90561-08055i1ZZFE..ZZE142..CNG200803-201105

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i3ZRFBE..ZRE143200803-201301

main23841-37090i1ZZFE,2ZR#,3ZRFBE..ZRE14#,ZZE142201302

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i1ZZFBE..ZZE142..SEG200803-201105

23901TUBE SUB-ASSY, FUEL

main23901-0D110i1ZZFE,3ZZFE..ZZE14#..HTWC200803

main23901-0T080i2ZRFE..ZRE142201103-201403

main23901-22220i1ZZFBE..ZZE142..SEG200803-201003

main23901-22240i2ZRFBE,3ZRFBE..ZRE14#201003-201403

9010506202

main90105-06202

9010508185

main90105-08185

9012606027

main90126-06027

9151180614

main91511-80614

91511J0840

main91511-J0840

91551L0845

main91551-L0845

9415180641

main94151-80641

18 parts on this diagram · 6 diagrams in section
