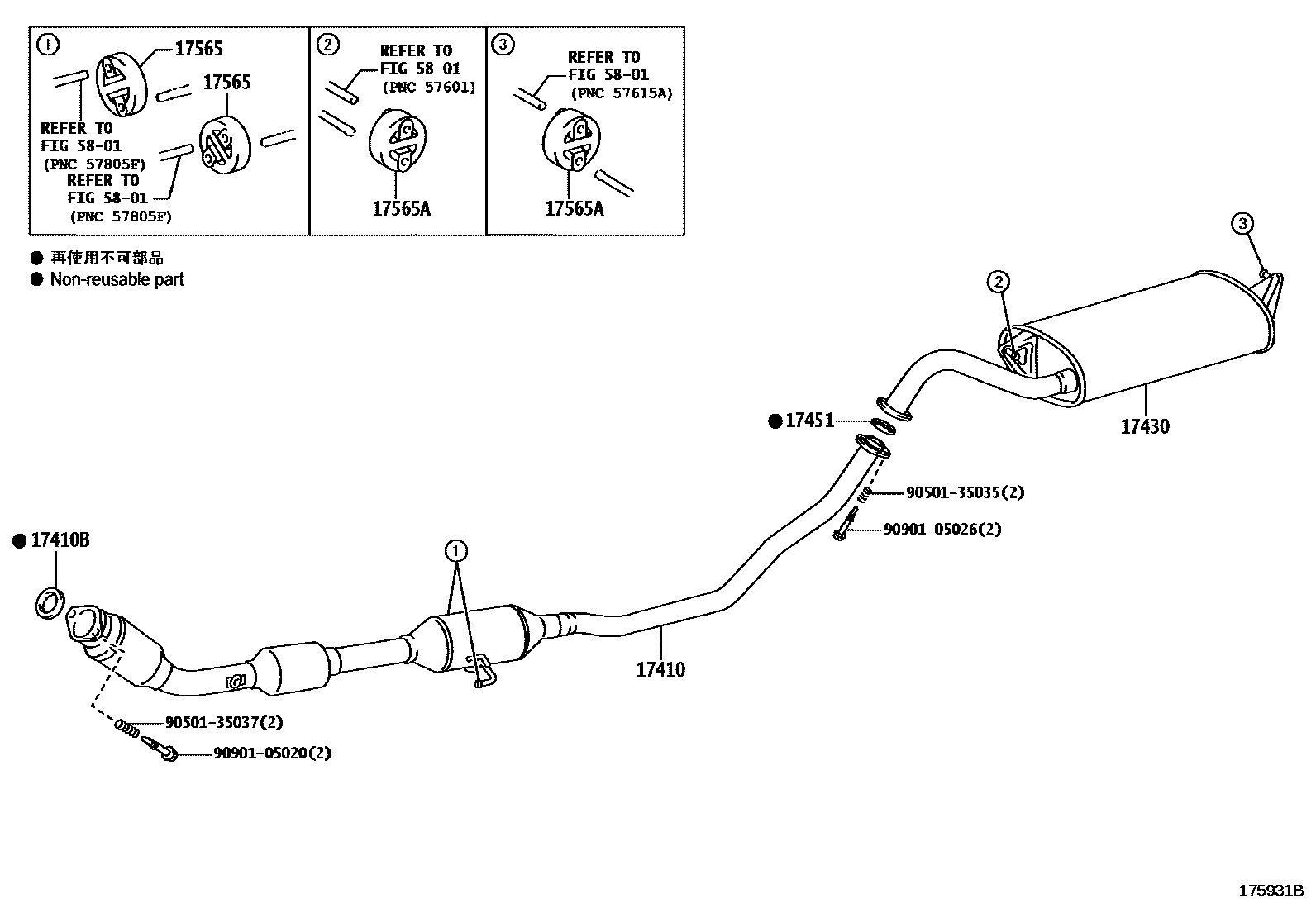

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D480i1ZZFBE..ZZE142..SEG200803-201003

sub17410-0D530

main17410-0D520i1ZZFE..ZZE142..CNG200903-201105

main17410-0T180i3ZRFBE..ZRE143201003-201403

main17410-0T420i2ZRFBE..ZRE142201103-201403

main17410-0T480i2ZRFE..ZRE142..XLI201103-201403

COLOMBIA SPEC

main17410-0T490i2ZRFE..ZRE142..SEG,XEI201103-201202

sub17410-0T600

main17410-0T600i2ZRFE..ZRE142..SEG,XEI201203-201403

17410BGASKET, EXHAUST PIPE

main17451-22070i1ZZFE..ZZE142..CNG¥1,450200803-201105

main17451-28070i2ZR#,3ZRFBE..ZRE14#¥1,510201003-201403

sub17451-28040¥1,510

17430PIPE ASSY, EXHAUST, TAIL

main17430-0D490i1ZZFE..ZZE142..CNG200803-201105

main17430-0T130i2ZR#,3ZRFBE..ZRE14#201003-201403

17451GASKET, EXHAUST PIPE

main17451-23041i1ZZFBE..ZZE142..SEG¥1,150200803-201009

sub17451-23042¥790

main17451-23042i1ZZFE..ZZE142¥790201010-201105

sub17451-23043¥720

main17451-28031i3ZRFBE..ZRE143¥2,170201003-201102

sub17451-28032¥1,360

main17451-28032i2ZR#,3ZRFBE..ZRE14#¥1,360201103-201403

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i1ZZFBE..ZZE142..SEG¥570200803-201105

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i1ZZFBE..ZZE142..SEG¥670200803-201105

5801

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

9090105020

main90901-05020¥230

9090105026

main90901-05026¥310

11 parts on this diagram · 1 diagram in section
