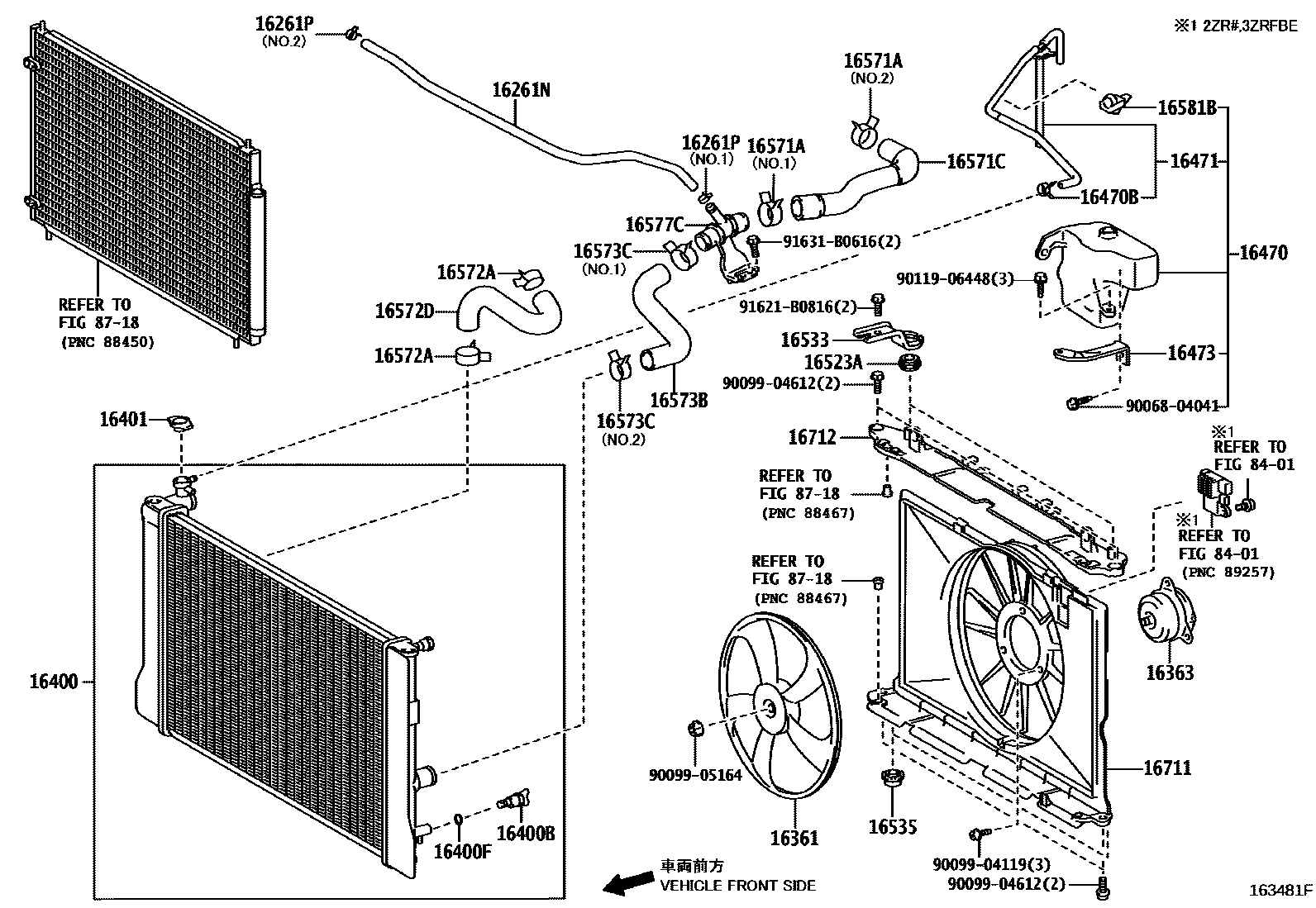

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16261HOSE, WATER BY-PASS

main16261-0D122i1ZZFE..ZZE142..BZ,MXC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803-201105

MADE IN EUROPE

main16261-0D231i1ZZFE..ZZE142200901-201105

MADE IN BRAZIL

main16261-0T070i2ZR#,3ZRFBE..ZRE14#201304-201403

(L)

main16261-22142i1ZZFE..ZZE142..BZ,MXC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803-201105

MADE IN JAPAN

main16261-22142i1ZZFE..ZZE142..HTWC..VEN200809

main16261-37021i3ZRFBE..ZRE143201003-201101

sub16261-37022

main16261-37022i2ZR#,3ZRFBE..ZRE14#201304-201403

(J)

main16261-37022i3ZRFBE..ZRE143201101-201304

16261NHOSE, WATER BY-PASS, NO.2

main16261-0D190i1ZZFBE..ZZE142..SEG200803-201007

sub16261-0D191

main16261-0D191i3ZRFBE..ZRE143201008-201210

main16261-0D192i1ZZFE,2ZR#,3ZRFBE..ZRE14#,ZZE142201210

16261PCLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15022i3ZRFBE..ZRE143200803-201210

main90467-15022i1ZZFE..ZZE142..CNG;2ZR#,3ZRFBE..ZRE14#201103

NO.2

main96136-41901i1ZZFE,2ZR#,3ZRFBE..ZRE14#,ZZE142201210

NO.1

16361FAN

main16361-0D240i1ZZFE..ZZE142..CNG200803-201105

main16361-0T090i3ZRFBE..ZRE143201003-201403

16363MOTOR, COOLING FAN

main16363-0D160i3ZRFBE..ZRE143201308-201403

main16363-0H030i1ZZFE..ZZE142..HTWC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200907-201105

(L)

main16363-0T100i2ZR#..ZRE142201308-201403

main16363-22100i3ZRFBE..ZRE143201003-201307

main16363-22120i2ZR#..ZRE142201103-201307

main16363-28150i1ZZFBE..ZZE142..SEG200907-201105

(J)

main16363-28150i1ZZ#,3ZZFE..ZZE14#200803-200907

16400RADIATOR ASSY

main16410-0D460i2ZR#..ZRE142..MTM;1ZZFE..ZZE142..MTM..CNG200803-201105

main16410-0D470i1ZZFBE..ZZE142..SEG200803-201105

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i1ZZFE,2ZR#,3ZRFBE..ZRE14#,ZZE142201308

sub16417-21280

main16417-21280i3ZRFBE..ZRE143200803-201308

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1ZZFBE..ZZE142..SEG200803-201105

16401CAP SUB-ASSY, RADIATOR

main16401-22010i3ZRFBE..ZRE143200803-201105

16470TANK ASSY, RADIATOR RESERVE

main16470-0D090i3ZRFBE..ZRE143200803-201105

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90466-11003i1ZZFBE..ZZE142..SEG200803-201210

16471CAP SUB-ASSY, RESERVE TANK

main16405-0D140i1ZZFBE..ZZE142..SEG200803-201105

16473SUPPORT(FOR RADIATOR RESERVE TANK)

main16473-64260i1ZZFE..ZZE142..CNG200803-201105

16523ACUSHION, RADIATOR SUPPORT

main16523-0D100i3ZRFBE..ZRE143200803-201105

(L)

sub16523-21050

main16523-21050i1ZZFE..ZZE142..HTWC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803-201105

(J)

16533SUPPORT, RADIATOR, UPPER

main16533-0D100i1ZZFBE..ZZE142..SEG200803-201105

(L)

sub16533-22070

main16533-22070i1ZZFE..ZZE142..HTWC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803-201105

(J)

16535SUPPORT, RADIATOR, LOWER

main16535-0D160i1ZZ#,3Z#..ZRE143,ZZE14#200803-201106

(L)

sub16535-0D161

main16535-0D161i1ZZFE,2ZR#,3ZRFBE..ZRE14#,ZZE142201106

(L)

sub16535-21091

main16535-21090i1ZZFE..ZZE142..CNG200803-200907

(J)

sub16535-21091

main16535-21091i1ZZ#,3Z#..ZRE143,ZZE14#200907

(J)

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main96136-43901i1ZZFE..ZZE142..CNG200803-201105

NO.2

main96136-44301i1ZZFE..ZZE142..CNG200803-201105

NO.1

16571CHOSE, RADIATOR, NO.1

main16571-0D310i1ZZFBE..ZZE142..SEG200803-201007

sub16571-0D311

main16571-0D311i1ZZFE..ZZE142..CNG201008-201105

main16571-0T110i3ZRFBE..ZRE143201003-201403

main16571-37100i2ZR#..ZRE142201103-201403

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96136-44301i1ZZFBE..ZZE142..SEG200803-201105

16572DHOSE, RADIATOR, NO.2

main16572-0D260i1ZZFE..ZZE142;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803-201008

sub16572-0D261

main16572-0D261i1ZZFE..ZZE142..CNG201009-201105

main16572-0T100i3ZRFBE..ZRE143201003-201403

main16572-37090i2ZR#..ZRE142201103-201403

16573BHOSE, RADIATOR, NO.3

main16573-0D090i1ZZFBE..ZZE142..SEG200803-201007

sub16573-0D091

main16573-0D091i1ZZFE..ZZE142..CNG201008-201105

GASOLINE SPEC

main16573-0D091i1ZZ#,3ZZFE..ZZE14#..HTWC,HTWCF201008-201103

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main96136-44301i1ZZFE..ZZE142..CNG;2ZR#,3ZRFBE..ZRE14#200803-201105

NO.1

16577CPIPE, RADIATOR

main16577-22031i1ZZFE,2ZR#,3ZRFBE..ZRE14#,ZZE142201210

main16577-22040i3ZRFBE..ZRE143200803-201210

sub16577-22H01

sub16577-22H02

sub16577-22H03

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-22100i1ZZFE..ZZE142..CNG200906-201105

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-22140i1ZZFBE..ZZE142..SEG200803-201105

16711SHROUD, FAN

main16711-0D300i1ZZFBE..ZZE142..SEG200803-201105

main16711-0T070i3ZRFBE..ZRE143201003-201306

sub16711-0T071

main16711-0T071i3ZRFBE..ZRE143201306-201403

main16711-0T120i2ZR#..ZRE142201103-201403

16712SHROUD, FAN, NO.2

main16712-0D190i1ZZFE..ZZE142..HTWC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803-201303

sub16712-0D191

main16712-0D191i1ZZFE,2ZR#,3ZRFBE..ZRE14#,ZZE142201304

8401

8718

9006804041

main90068-04041

9009904119

main90099-04119

9009904612

main90099-04612

9009905164

main90099-05164

9011906448

main90119-06448

91621B0816

main91621-B0816

91631B0616

main91631-B0616

36 parts on this diagram · 5 diagrams in section
