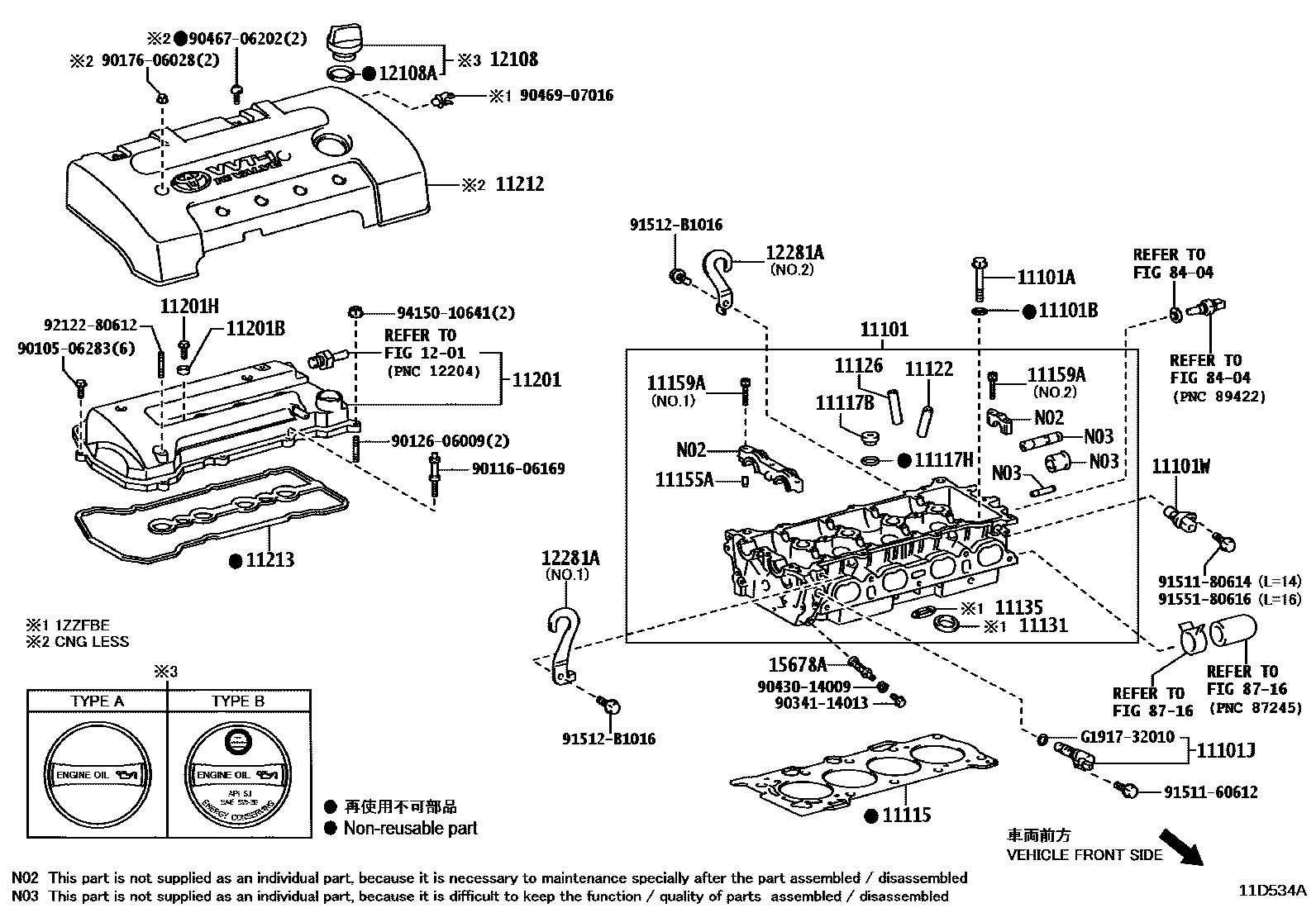

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
(L),NO.1
(L),NO.2
(J),NO.1
NO.1
(J),NO.2
NO.2
11101WSENSOR, CRANK POSITION, NO.1
11115GASKET, CYLINDER HEAD
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2
NO.1
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
11201HBOLT(FOR CYLINDER HEAD COVER)
11212COVER, CYLINDER HEAD, NO.2
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
1201
12108CAP SUB-ASSY, OIL FILLER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12108AGASKET(FOR OIL FILLER CAP)
PNC 12108=TYPE B
PNC 12108=TYPE A
12281AHANGER, ENGINE, NO.1
NO.2
NO.1
W/O(PAINTED)
15678AFILTER, OIL CONTROL VALVE
8404
8716
9010506283
9011606169
9012606009
9017606028
9034114013
9043014009
9046706202
9046907016
9151160612
9151180614
91512B1016
9155180616
9212280612
9415010641
G191732010
41 parts on this diagram · 4 diagrams in section
