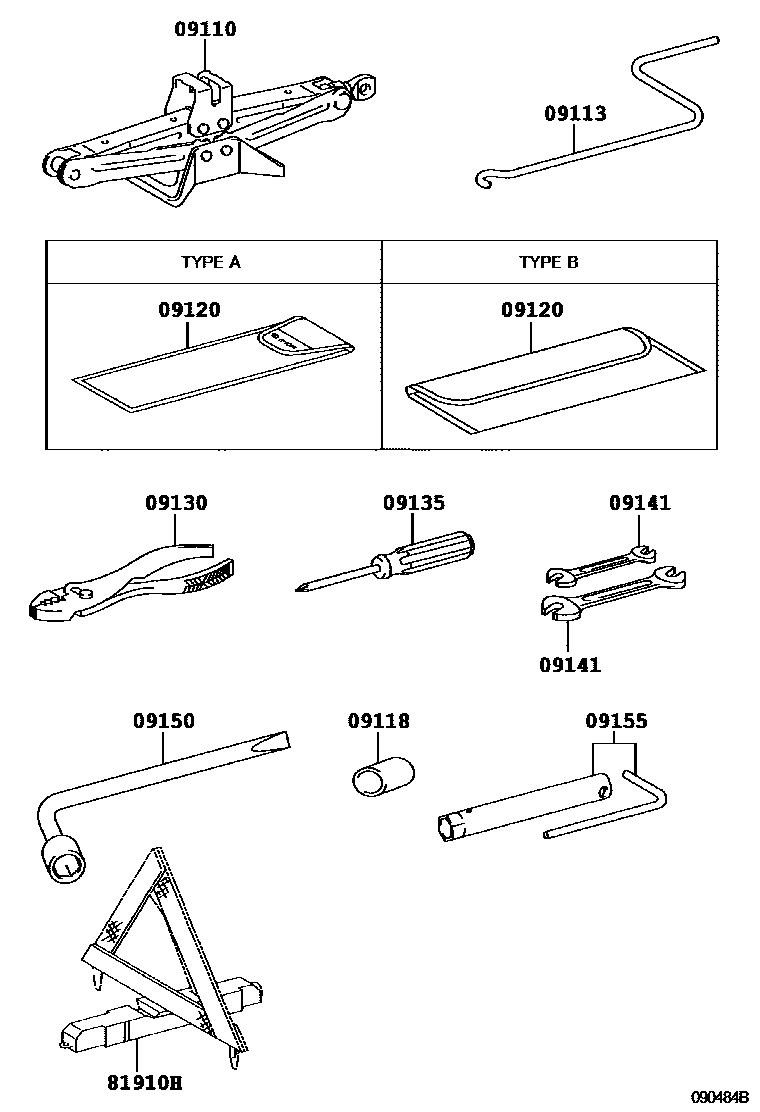

STANDARD TOOL

09110JACK ASSY

main09111-02050iZZE142..SEG..HTWCF200803-201204

sub09111-02160

main09111-02080iZZE142..CNG200809-201303

main09111-02081iZZE142201303

main09111-02160iZRE14#201205-201403

09113HANDLE, JACK

main09113-02040iZRE143200803-201403

main09113-02060iZZE142201205

main09113-52010iZZE142200809-201204

09118COVER, JACK

main09118-02010iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201403

09120BAG, TOOL

main09120-02040iZZE141..ATM200803-201003

LATIN AMERICA SPEC,TYPE A:REFER ILLUST.

main09120-02040iZZE141..ATM200803-201403

TYPE A:REFER ILLUST.

main09120-02070iZZE142..SEG..HTWCF200803-201403

TYPE B:REFER ILLUST.

main09120-10040iZZE142..CNG200809-201105

TYPE B:REFER ILLUST.

09130PLIERS

main99913-11500iZZE142..CNG200809-201105

09135DRIVER, SCREW

main99915-10700iZZE142..HTWC..VEN200809-201105

09141SPANNER

main99914-10810iZZE142..CNG200809-201105

8 X 10

main99914-11214iZZE142..CNG200809-201105

12 X 14

09150WRENCH, HUB NUT BOX

main09150-02010iZRE143,ZZE14#..BZ,MXC200803-201403

main09150-40010iZZE142..VEN200809-201411

09155WRENCH, SPARK PLUG

main09155-74010iZZE142..VEN200809-201411

81910HREFLECTOR ASSY, REFLEX

main81910-02010iZZE141..ATM200803-201003

LATIN AMERICA SPEC

main81910-02010iZRE14#..HTWCF200803-201403

10 parts on this diagram · 1 diagram in section
