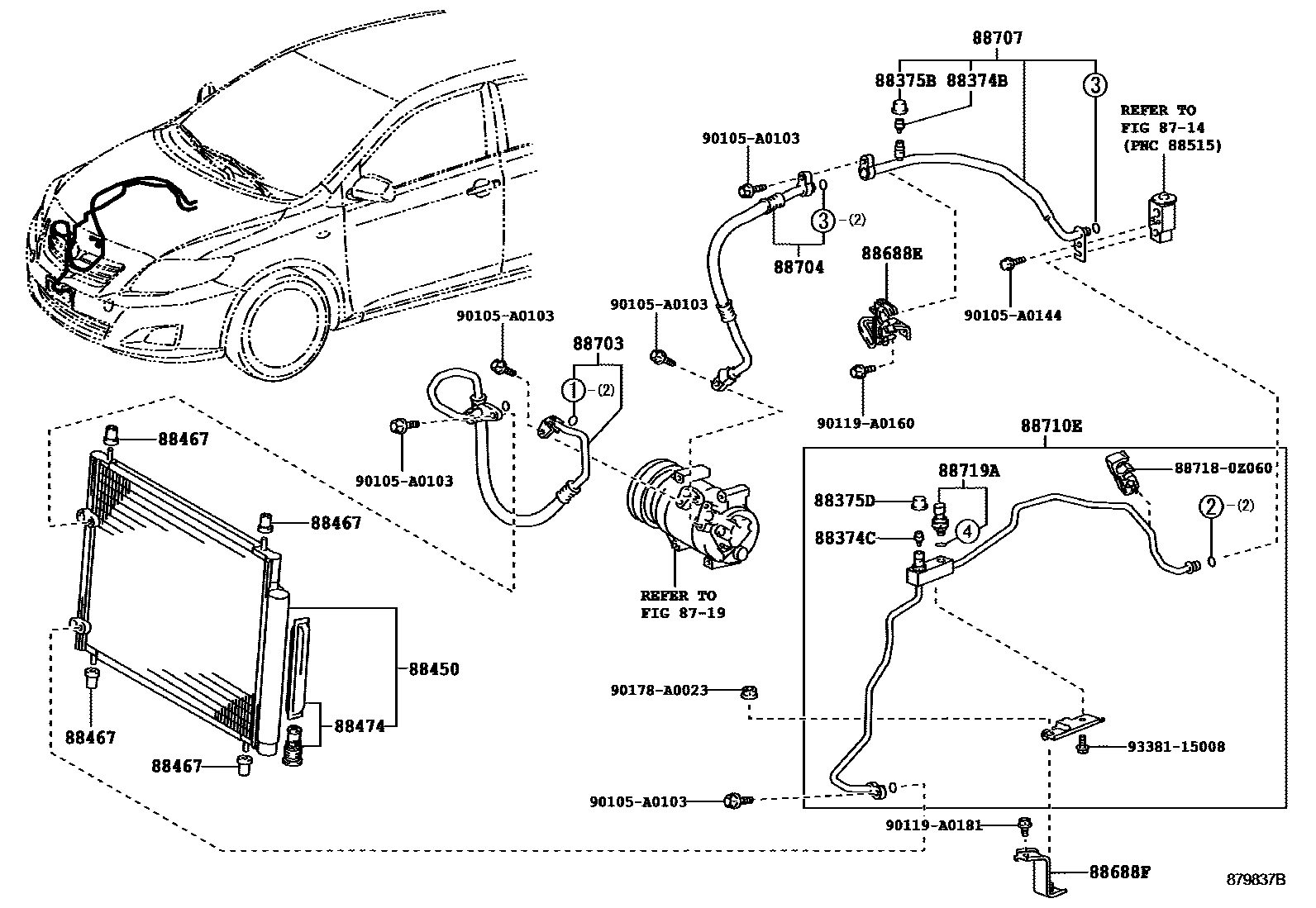

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iZRE142..NAP..CE200801-201012

AIR CONDITIONER-MANUAL

88374CVALVE, SERVICE, NO.2

main88374-30010iAZE141,ZRE142..NAP..(LE,S,STD,XRS)200801-201012

AIR CONDITIONER-MANUAL

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iAZE141,ZRE142..NAP..(LE,S,STD,XRS)200801-201012

AIR CONDITIONER-MANUAL

88375DCAP, SERVICE VALVE, NO.2

main88375-02060iAZE141,ZRE142..NAP..(LE,S,STD,XRS)200801-201012

AIR CONDITIONER-MANUAL

sub88375-0E020

88450CONDENSER ASSY, W/RECEIVER

main88450-02330iAZE141,ZRE142..NAP..(LE,S,STD,XRS)200801-201308

AIR CONDITIONER-MANUAL

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iAZE141,ZRE142..NAP..(LE,S,STD,XRS)200801-201308

AIR CONDITIONER-MANUAL

88474DRYER, COOLER

main88474-17010iAZE141,ZRE142..NAP..(LE,S,STD,XRS)200801-201012

AIR CONDITIONER-MANUAL

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-0Z160iAZE141,ZRE142..NAP..(LE,S,STD,XRS)200801-201012

AIR CONDITIONER-MANUAL

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-0Z230iZRE142..NAP..CE200801-201012

AIR CONDITIONER-MANUAL

88703HOSE SUB-ASSY, DISCHARGE

main88703-02460iZRE142..NAP..(LE,S,STD)200801-201012

AIR CONDITIONER-MANUAL

main88703-02470iAZE141..NAP200801-201012

main88703-02690iZRE142..NAP..(LE,S,STD)201012

AIR CONDITIONER-MANUAL

88704HOSE SUB-ASSY, SUCTION

main88704-02690iZRE142..NAP..(LE,S,STD)200801-201012

AIR CONDITIONER-MANUAL

main88704-02700iAZE141..NAP200801-201012

88707PIPE SUB-ASSY, SUCTION

main88707-02070iZRE142..NAP..CE200801-201012

AIR CONDITIONER-MANUAL

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0Z020iAZE141,ZRE142..NAP..(LE,S,STD,XRS)200801-201012

AIR CONDITIONER-MANUAL

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAZE141,ZRE142..NAP..(LE,S,STD,XRS)200801-201012

AIR CONDITIONER-MANUAL

887180Z060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0Z060

90105A0103

main90105-A0103

90105A0144

main90105-A0144

90119A0160

main90119-A0160

90119A0181

main90119-A0181

90178A0023

main90178-A0023

9338115008

main93381-15008

23 parts on this diagram · 5 diagrams in section
