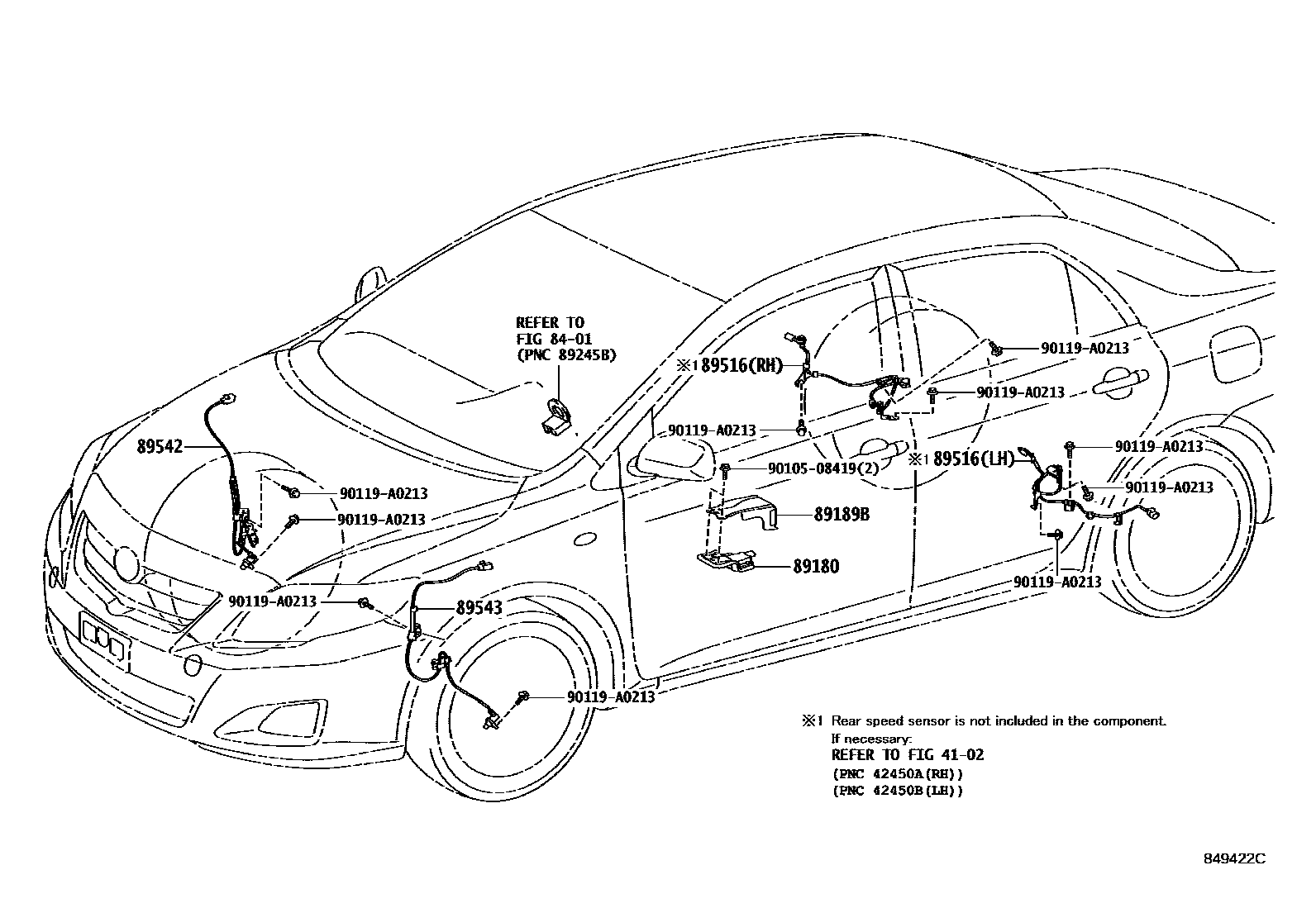

ABS & VSC

4102

8401

89180SENSOR ASSY, YAWRATE

main89180-12090iAZE141..NAP200801-200912

main89180-12110iZRE142..NAP..CND200912-201012

VSC-WITH (W/CUT OFF SW) V2P

main89180-12150iZRE142..NAP..(LE,STD)..USA201111

MEXICO SPEC

89189BBRACKET, YAWRATE SENSOR

main89189-02070iAZE141..NAP200801-201012

89516WIRE, SKID CONTROL SENSOR

main89516-02130iAZE141,ZRE142..NAP200801-201012

RH

sub89516-02131

main89516-02140iAZE141,ZRE142..NAP200801-201012

LH

sub89516-02141

89542SENSOR, SPEED, FRONT RH

main89542-02090iAZE141,ZRE142..NAP200801-201012

sub89542-02150

89543SENSOR, SPEED, FRONT LH

main89543-02090iAZE141,ZRE142..NAP200801-201012

sub89543-02150

9010508419

main90105-08419

90119A0213

main90119-A0213

9 parts on this diagram · 1 diagram in section
