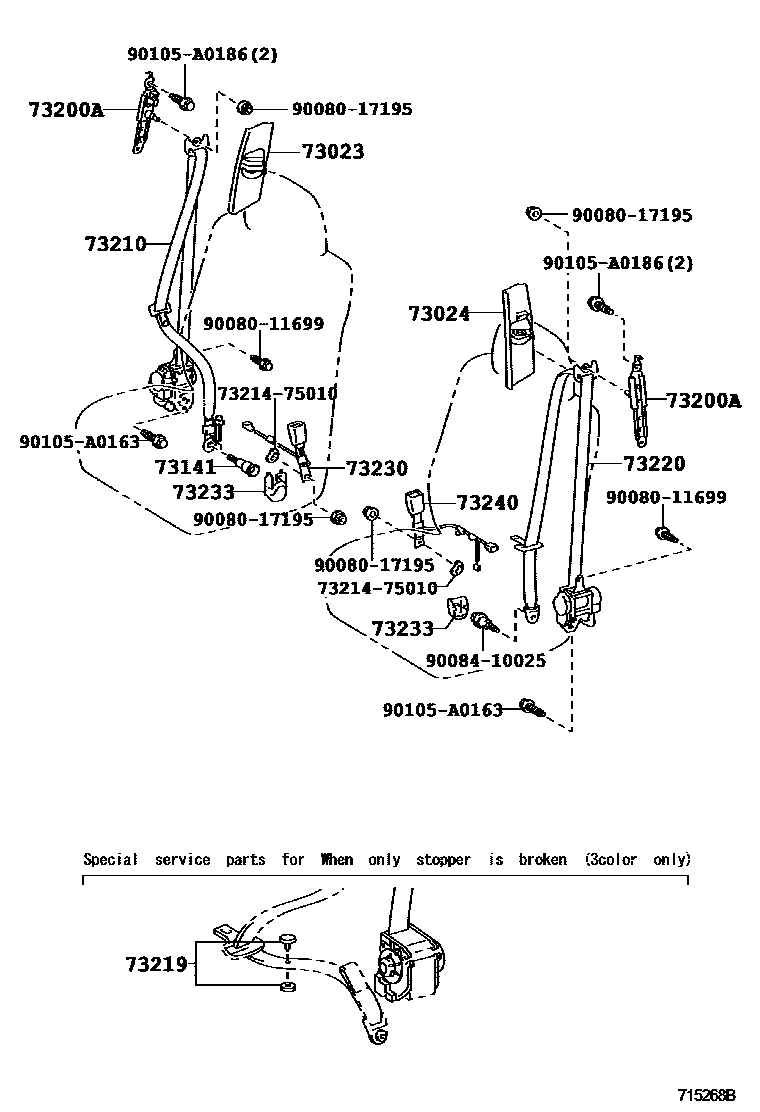

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06030-B1iAZE141,ZRE142..NAP200801-201308

LT.GRAY,TRIM1#

main73023-06030-B1iZRE142..NAP..LE201012-201308

LT.GRAY,TRIM16,18

main73023-06030-E0iZRE142..NAP..(CE,STD)200801-201308

GREGE,TRIM4#

main73023-06030-E0iZRE142..NAP..LE201012-201308

GREGE,TRIM18,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06030-B1iZRE142..NAP..LE201012-201308

LT.GRAY,TRIM16,18

main73024-06030-B1iAZE141,ZRE142..NAP200801-201308

LT.GRAY,TRIM1#

main73024-06030-E0iZRE142..NAP..(CE,STD)200801-201308

GREGE,TRIM4#

main73024-06030-E0iZRE142..NAP..LE201012-201308

GREGE,TRIM18,4#

73141BASE, FRONT SEAT BELT ANCHOR

main73141-12030iAZE141,ZRE142..NAP200801-201012

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-06040iAZE141,ZRE142..NAP200801-201012

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02310-B0iZRE142..NAP..LE201012-201308

DK.GRAY,TRIM1#

main73210-02310-B0iZRE142..NAP..LE201012-201308

DK.GRAY,TRIM18

main73210-02310-B1iZRE142..NAP..(CE,STD)201012-201308

GRAY,TRIM16

main73210-02310-B1iZRE142..NAP..(CE,STD)201012-201308

GRAY,TRIM1#

main73210-02310-E0iZRE142..NAP..LE201012-201308

GREGE,TRIM4#

main73210-02310-E0iZRE142..NAP..(CE,STD)201012-201308

GREGE,TRIM18,4#

main73210-02350-B0iAZE141,ZRE142..NAP..(S,XRS)200801-200802

DK.GRAY,TRIM1#

sub73210-02351

main73210-02350-B1iZRE142..NAP..(CE,LE,STD)200801-200802

GRAY,TRIM1#

sub73210-02351

main73210-02350-E0iZRE142..NAP..(CE,LE,STD)200801-200802

GREGE,TRIM4#

sub73210-02351

main73210-02351-B0iAZE141,ZRE142..NAP..(S,XRS)200803-201012

DK.GRAY,TRIM1#

main73210-02351-B1iZRE142..NAP..(CE,LE,STD)200803-201012

GRAY,TRIM1#

main73210-02351-E0iZRE142..NAP..(CE,LE,STD)200803-201012

GREGE,TRIM4#

73219STOPPER, TONGUE PLATE

main73219-02010iAZE141,ZRE142..NAP200801-201012

BLACK

main73219-02020iAZE141,ZRE142..NAP200801-201012

GRAY

main73219-02030iAZE141,ZRE142..NAP200801-201012

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02290-B0iAZE141,ZRE142..NAP..(S,XRS)201012-201308

DK.GRAY,TRIM18

main73220-02290-B0iZRE142..NAP..LE201012-201308

DK.GRAY,TRIM1#

main73220-02290-B1iZRE142..NAP..LE201012-201308

GRAY,TRIM1#

main73220-02290-B1iZRE142..NAP..LE201012-201308

GRAY,TRIM16

main73220-02290-E0iZRE142..NAP..(CE,STD)201012-201308

GREGE,TRIM4#

main73220-02290-E0iZRE142..NAP..LE201012-201308

GREGE,TRIM18,4#

main73220-02320-B0iAZE141,ZRE142..NAP..(S,XRS)200801-201012

DK.GRAY,TRIM1#

main73220-02320-B1iZRE142..NAP..(CE,LE,STD)200801-201012

GRAY,TRIM1#

main73220-02320-E0iZRE142..NAP..(CE,LE,STD)200801-201012

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02310-B0iZRE142..NAP..LE200801-201308

DK.GRAY,TRIM1#

main73230-02310-B0iZRE142..NAP..LE201012-201308

DK.GRAY,TRIM18

main73230-02310-B1iZRE142..NAP..(CE,STD)201012-201308

GRAY,TRIM16

main73230-02310-B1iZRE142..NAP..(CE,LE,STD)200801-201308

GRAY,TRIM1#

main73230-02310-E0iZRE142..NAP..LE201012-201308

GREGE,TRIM18,4#

main73230-02310-E0iZRE142..NAP..(CE,LE,STD)200801-201308

GREGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-12020-B1iZRE142..NAP..LE200801-201308

DK.GRAY,TRIM1#,RH SEAT

main73233-12020-B1iAZE141,ZRE142..NAP..(CE,S,STD,XRS)201012-201308

DK.GRAY,TRIM16,18,RH SEAT

main73233-12020-E0iZRE142..NAP..LE200801-201308

GREGE,TRIM4#,RH SEAT

main73233-12020-E0iZRE142..NAP..LE201012-201308

GREGE,TRIM18,4#,RH SEAT

main73233-12050-B0iZRE142..NAP..LE201012-201308

DK.GRAY,TRIM16,18,LH SEAT

sub73233-60020

main73233-12050-B0iAZE141,ZRE142..NAP200801-201308

DK.GRAY,TRIM1#,LH SEAT

sub73233-60020

main73233-12050-E0iZRE142..NAP..(CE,STD)200801-201308

GREGE,TRIM4#,LH SEAT

sub73233-60020

main73233-12050-E0iZRE142..NAP..LE201012-201308

GREGE,TRIM18,4#,LH SEAT

sub73233-60020

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-02050-B0iAZE141,ZRE142..NAP..(S,XRS)200801-201308

DK.GRAY,TRIM1#

main73240-02050-B0iZRE142..NAP..LE201012-201308

DK.GRAY,TRIM18

main73240-02050-B1iZRE142..NAP..(CE,STD)201012-201308

GRAY,TRIM16

main73240-02050-B1iZRE142..NAP..(CE,LE,STD)200801-201308

GRAY,TRIM1#

main73240-02050-E0iZRE142..NAP..(CE,LE,STD)200801-201308

GREGE,TRIM4#

main73240-02050-E0iZRE142..NAP..(CE,STD)201012-201308

GREGE,TRIM18,4#

main73240-02070-B0iZRE142..NAP..LE200801-201012

FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GRAY,TRIM1#

main73240-02070-B0iZRE142..NAP..LE..CND201012-201308

FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GRAY,TRIM16

main73240-02070-E0iZRE142..NAP..LE..CND201012-201308

FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GREGE,TRIM18,4#

main73240-02070-E0iZRE142..NAP..LE200801-201012

FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9008011699

main90080-11699

9008017195

main90080-17195

9008410025

main90084-10025

90105A0163

main90105-A0163

90105A0186

main90105-A0186

16 parts on this diagram · 2 diagrams in section
