FRONT SEAT & SEAT TRACK

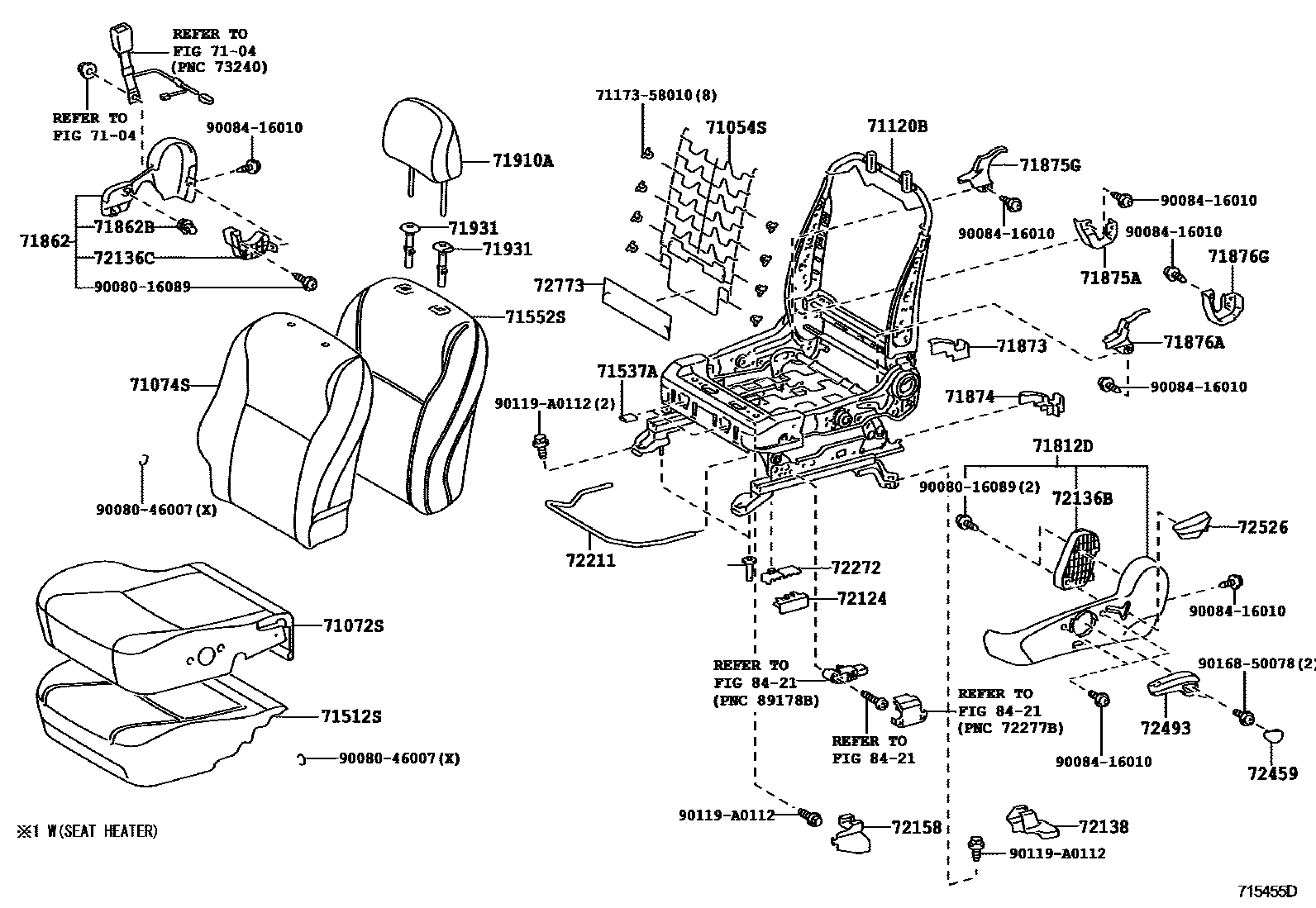

Parts diagram
7104
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-02150i200801-200902
SRS AIR BAG-WITH(DRIVER & PASSENGER)
main71053-02160i200801-201308
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-02K10-B1i200801-200907
GRAY,TRIM1#
main71072-02K10-E1i200801-200907
GREGE,TRIM4#
main71072-02K11-B3i200907-201012
GRAY,TRIM1#
sub71072-02K12
main71072-02K11-E3i200907-201012
GREGE,TRIM4#
sub71072-02K12
main71072-02K30-B1i200801-201012
GRAY,TRIM1#
sub71072-02K31
main71072-02K30-E1i200801-201012
GREGE,TRIM4#
sub71072-02K31
main71072-02K40-B1i200801-201012
DK. GRAY,TRIM1#
main71072-02K50-B1i200801-201012
DK. GRAY,TRIM1#
main71072-02V30-B2i201012-201112
GRAY,TRIM1#
main71072-02V31-B2i201112-201308
DK. GRAY,TRIM1#
main71072-02V31-B2i201303-201308
DK. GRAY,TRIM17
main71072-02V31-B3i201303-201308
DK GRAY W/ ORANGE ACCENT,TRIM19
main71072-02V80-B2i201012-201208
GRAY,TRIM1#
main71072-02V80-E2i201012-201208
GREGE,TRIM4#
main71072-02V81-B2i201208-201308
GRAY,TRIM1#
main71072-02V81-E2i201208-201308
GREGE,TRIM4#
main71072-02V90-B2i201012-201208
GRAY,TRIM1#
main71072-02V90-E1i201012-201208
GREGE,TRIM4#
main71072-02V91-B2i201208-201308
GRAY,TRIM16
main71072-02V91-E1i201208-201308
GREGE,TRIM18,4#
main71072-02W00-B1i201012-201308
DK. GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-02Q80-B0i200801-200912
DK. GRAY,TRIM1#
sub71074-02Q81
main71074-02Q81-B0i200912-201012
DK. GRAY,TRIM1#
main71074-02Q90-B0i200801-200902
GRAY,TRIM1#
main71074-02Q90-E0i200801-200902
GREGE,TRIM4#
main71074-02R20-B1i200801-200907
GRAY,TRIM1#
main71074-02R20-E1i200801-200907
GREGE,TRIM4#
main71074-02R21-B3i200907-201012
GRAY,TRIM1#
sub71074-02R22
main71074-02R21-E3i200907-201012
GREGE,TRIM4#
sub71074-02R22
main71074-02R30-B0i200801-200902
GRAY,TRIM1#
main71074-02R30-B0i200801-200902
SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71074-02R30-E0i200801-200902
SRS AIR BAG-WITH(DRIVER & PASSENGER),GREGE,TRIM4#
main71074-02R30-E0i200801-200902
GREGE,TRIM4#
main71074-02R40-B1i200902-200912
LE,GRAY,TRIM1#
main71074-02R40-B1i200801-200912
GRAY,TRIM1#
main71074-02R40-E1i200801-200912
GREGE,TRIM4#
main71074-02R40-E1i200902-200912
LE,GREGE,TRIM4#
main71074-02R41-B1i200912-201012
GRAY,TRIM1#
sub71074-02R42
main71074-02R41-B1i200912-201012
LE,GRAY,TRIM1#
sub71074-02R42
main71074-02R41-E1i200912-201012
GREGE,TRIM4#
sub71074-02R42
main71074-02R41-E1i200912-201012
LE,GREGE,TRIM4#
sub71074-02R42
main71074-02R50-B0i200801-200902
DK. GRAY,TRIM1#
main71074-02R60-B1i200801-200912
DK. GRAY,TRIM1#
sub71074-02R61
main71074-02R61-B1i200912-201012
DK. GRAY,TRIM1#
main71074-02S50-B2i201012-201112
GRAY,TRIM1#
main71074-02S51-B2i201303-201308
DK. GRAY,TRIM17
main71074-02S51-B2i201112-201308
DK. GRAY,TRIM1#
main71074-02S51-B3i201303-201308
DK GRAY W/ ORANGE ACCENT,TRIM19
main71074-0Z320-B1i201012-201308
DK. GRAY,TRIM1#
main71074-0Z330-B2i201012-201208
GRAY,TRIM1#
main71074-0Z330-E2i201012-201208
GREGE,TRIM4#
main71074-0Z331-B2i201208-201308
GRAY,TRIM1#
main71074-0Z331-E2i201208-201308
GREGE,TRIM4#
main71074-0Z340-B2i201012-201208
GRAY,TRIM1#
main71074-0Z340-E1i201012-201208
GREGE,TRIM4#
main71074-0Z341-B2i201208-201308
GRAY,TRIM16
main71074-0Z341-E1i201208-201308
GREGE,TRIM18,4#
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-02150i200801-201308
main71120-02190i200801-200902
SRS AIR BAG-WITH(DRIVER & PASSENGER)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-02250i200801-201308
71537APROTECTOR, FRONT SEAT CUSHION
main71537-AA020i200801-201308
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-02401i200801-200902
SRS AIR BAG-WITH(DRIVER & PASSENGER)
main71552-02411i200801-201308
main71552-02530i200801-201012
LEATHER PACKAGE
main71552-02530i201012-201308
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-02370-B0i200801-201308
DK.GRAY,TRIM1#
main71812-02370-B1i200801-201308
GRAY,TRIM1#
main71812-02370-B1i201012-201308
GRAY,TRIM16
main71812-02370-E0i200801-201308
GREGE,TRIM4#
main71812-02370-E0i201012-201308
GREGE,TRIM18,4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-02160-B0i200801-201308
DK.GRAY,TRIM1#
main71862-02160-B1i201012-201308
GRAY,TRIM16
main71862-02160-B1i200801-201308
GRAY,TRIM1#
main71862-02160-E0i200801-201308
GREGE,TRIM4#
main71862-02160-E0i201012-201308
GREGE,TRIM18,4#
71862BCLIP(FOR FRONT SEAT SHIELD, LH)
main71769-33020i200801-201308
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-02100i200801-201308
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-02100i200801-201308
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-02130-B0i201012-201308
DK.GRAY,TRIM1#
main71875-02130-B1i201012-201308
GRAY,TRIM16
main71875-02130-B1i201012-201308
GRAY,TRIM1#
main71875-02130-E0i201012-201308
GREGE,TRIM18,4#
main71875-02130-E0i201012-201308
GREGE,TRIM4#
main71875-AA060i200801-201012
FRONT SEAT SLIDE-240MM,D:POWER(8WAY),PASSENGER
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-02130-B0i200801-201012
DK.GRAY,TRIM1#
main71875-02130-B1i200801-201012
FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GRAY,TRIM1#,PASSENGER
main71875-02130-B1i200801-201012
GRAY,TRIM1#
main71875-02130-E0i200801-201012
FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GREGE,TRIM4#,PASSENGER
main71875-02130-E0i200801-201012
GREGE,TRIM4#
main71875-AA060i201012-201308
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-02130-B0i201012-201308
DK.GRAY,TRIM1#
main71876-02130-B1i201012-201308
GRAY,TRIM16
main71876-02130-B1i201012-201308
GRAY,TRIM1#
main71876-02130-E0i201012-201308
GREGE,TRIM18,4#
main71876-02130-E0i201012-201308
GREGE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-02130-B0i200801-201308
DK.GRAY,TRIM1#
main71876-02130-B1i201012-201308
GRAY,TRIM16
main71876-02130-B1i200801-201012
FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GRAY,TRIM1#,PASSENGER
main71876-02130-B1i200801-201308
GRAY,TRIM1#
main71876-02130-E0i201012-201308
GREGE,TRIM18,4#
main71876-02130-E0i200801-201308
GREGE,TRIM4#
main71876-02130-E0i200801-201012
FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GREGE,TRIM4#,PASSENGER
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-AA060i200801-201012
FRONT SEAT SLIDE-240MM,D:POWER(8WAY),PASSENGER
main71876-AA060i201012-201308
71910AHEADREST ASSY, FRONT SEAT
main71910-02B30-B1i200801-200912
DK. GRAY,TRIM1#
main71910-02B31-B1i200912-201009
DK. GRAY,TRIM1#
sub71910-02F70
main71910-02B50-B0i200801-200912
DK. GRAY,TRIM1#
main71910-02B51-B0i200912-201009
DK. GRAY,TRIM1#
sub71910-02F60
main71910-02B70-B1i200801-200907
GRAY,TRIM1#
main71910-02B70-E1i200801-200907
GREGE,TRIM4#
main71910-02B80-B1i200801-200912
GRAY,TRIM1#
main71910-02B80-E1i200801-200912
GREGE,TRIM4#
main71910-02B81-B1i200912-201009
GRAY,TRIM1#
sub71910-02F50
main71910-02B81-E1i200912-201009
GREGE,TRIM4#
sub71910-02F50
main71910-02F50-B0i201009-201208
GRAY,TRIM1#
sub71910-02F51
main71910-02F50-E0i201009-201208
GREGE,TRIM4#
sub71910-02F51
main71910-02F51-B0i201208-201308
GRAY,TRIM16
main71910-02F51-B0i201208-201308
GRAY,TRIM1#
main71910-02F51-E0i201208-201308
GREGE,TRIM4#
main71910-02F51-E0i201208-201308
GREGE,TRIM18,4#
main71910-02F60-B0i201009-201308
DK. GRAY,TRIM1#
main71910-02F70-B0i201009-201308
DK. GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-B0i200801-201308
W(LOCK),DK.GRAY,TRIM1#
sub71930-44020
sub71930-02370
main71930-44020-B2i200801-201308
W(LOCK),GRAY,TRIM1#
sub71930-44020
sub71930-02370
main71930-44020-B2i201012-201308
W(LOCK),GRAY,TRIM16
sub71930-44020
sub71930-02370
main71930-44020-E0i201012-201308
W(LOCK),GREGE,TRIM18,4#
sub71930-44020
sub71930-02370
main71930-44020-E0i200801-201308
W(LOCK),GREGE,TRIM4#
sub71930-44020
sub71930-02370
main71931-47010-B2i200801-201308
W/O(LOCK),DK.GRAY,TRIM1#
sub71931-47010
sub71931-42020
main71931-47010-E4i201012-201308
W/O(LOCK),GREGE,TRIM18,4#
sub71931-47010
sub71931-42020
main71931-47010-E4i200801-201308
W/O(LOCK),GREGE,TRIM4#
sub71931-47010
sub71931-42020
main71931-47010-P4i200801-201308
W/O(LOCK),GRAY,TRIM1#
sub71931-47010
sub71931-42020
main71931-47010-P4i201012-201308
W/O(LOCK),GRAY,TRIM16
sub71931-47010
sub71931-42020
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-02030i200801-201308
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-02020i200801-201308
72136BSPACER, SEAT TRACK, LOWER NO.3
main72136-02030i200801-201308
72136CSPACER, SEAT TRACK, LOWER NO.4
main72136-02090i200801-201308
72138COVER, SEAT TRACK, OUTER LH
main72138-02110i200801-201012
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-02130i200801-201012
72211HANDLE, SEAT TRACK ADJUSTING
main72211-02080i200801-201012
FRONT SEAT SLIDE-240MM,D:POWER(8WAY)
main72211-02080i201012-201308
FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER)
72272CLAMP, SEAT TRACK CONTROL CABLE
main72272-02060i200801-201012
FRONT SEAT SLIDE-240MM,D:POWER(8WAY)
main72272-02060i201012-201308
FRONT SEAT SLIDE-240MM,D:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER)
72459CAP, VERTICAL SEAT ADJUSTER KNOB
main72459-06010-B0i200801-201308
GRAY,TRIM1#
main72459-06010-B0i201012-201308
GRAY,TRIM16
main72459-06010-B2i200801-201308
DK.GRAY,TRIM1#
main72459-06010-E0i200801-201308
GREGE,TRIM4#
main72459-06010-E0i201012-201308
GREGE,TRIM18,4#
72493HANDLE, VERTICAL ADJUSTING, NO.2
main72493-02010-B0i200801-201308
DK.GRAY,TRIM1#
main72493-02010-B1i201012-201308
GRAY,TRIM16
main72493-02010-B1i200801-201308
GRAY,TRIM1#
main72493-02010-E0i200801-201308
GREGE,TRIM4#
main72493-02010-E0i201012-201308
GREGE,TRIM18,4#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06020-B0i200801-201308
GRAY,TRIM1#
main72526-06020-B0i201012-201308
GRAY,TRIM16
main72526-06020-B2i200801-201308
DK.GRAY,TRIM1#
main72526-06020-E0i200801-201308
GREGE,TRIM4#
main72526-06020-E0i201012-201308
GREGE,TRIM18,4#
72773PLATE, LUMBAR SUPPORT
main72773-02010i200801-201308
8421
7117358010PLATE, FRONT SEATBACK SPRING SET, INSIDE NO.1 LH
main71173-58010
9008016089
main90080-16089
9008046007
main90080-46007
9008416010
main90084-16010
90119A0112
main90119-A0112
9016850078
main90168-50078

39 parts on this diagram · 8 diagrams in section
