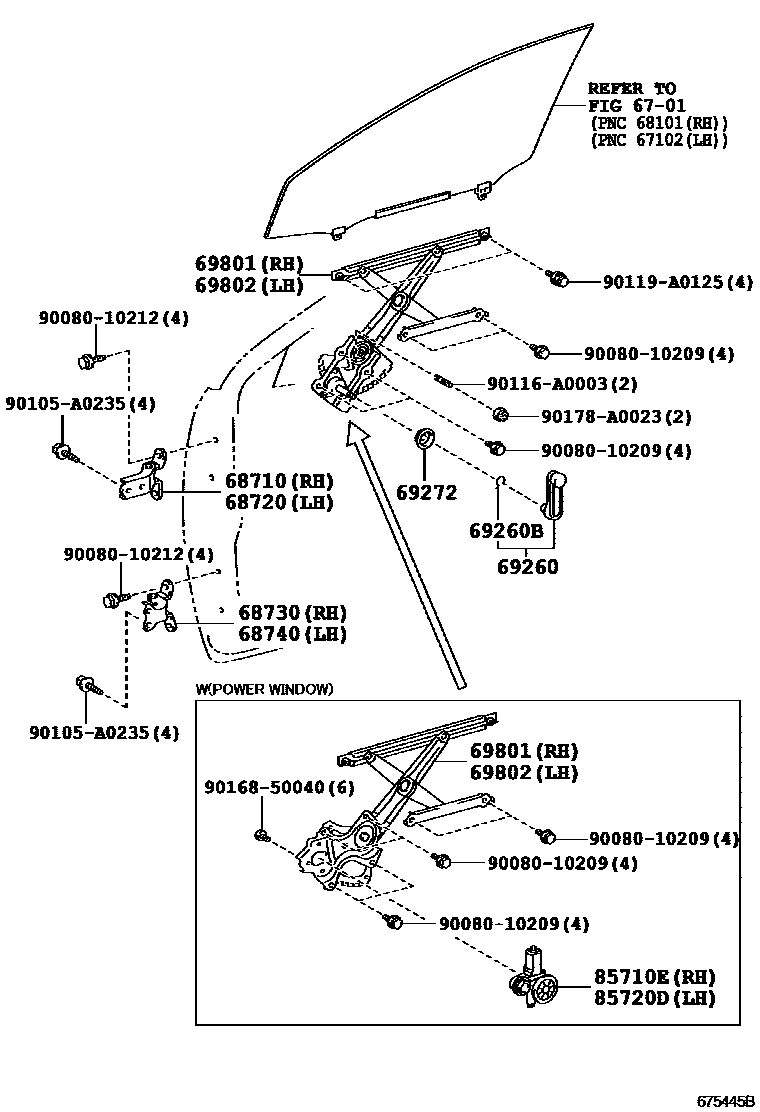

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iAZE141,ZRE142..NAP200801-201012

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iAZE141,ZRE142..NAP200801-201012

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02080iAZE141,ZRE142..NAP200801-201012

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02080iAZE141,ZRE142..NAP200801-201012

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-01020-B5×2supersedes 69260-01020-B5iAZE141..NAP201012-201112

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52001×2supersedes 90080-52001iAZE141..NAP201012-201112

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-12020×2supersedes 69268-12020iAZE141..NAP201012-201112

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02170supersedes 69810-02350iAZE141,ZRE142..NAP..(CE,S,STD,XRS)200801-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02180supersedes 69820-02360iAZE141,ZRE142..NAP..(CE,S,STD,XRS)200801-201012

POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AE010iAZE141,ZRE142..NAP..(S,XRS)201112

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AE010iAZE141,ZRE142..NAP..(S,XRS)201112

9008010209

main90080-10209

9008010212

main90080-10212

90105A0235

main90105-A0235

90116A0003

main90116-A0003

90119A0125

main90119-A0125

9016850040

main90168-50040

90178A0023

main90178-A0023

19 parts on this diagram · 1 diagram in section
