SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
5701
58745PROTECTOR, QUARTER PANEL, FRONT RH
HAWAII SPEC OR PUERTO RICO SPEC&WITHOUT(COLD AREA SPEC)
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61211CRAIL, ROOF SIDE, RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61605EPANEL, QUARTER, RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61667CSEAL, QAURTER PANEL, NO.1
61688BLINING, QUARTER PANEL REINFORCEMENT, RH
61697DHOUSING, QUARTER PANEL END, RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61815CCOVER, ROOF SIDE, INNER UPPER
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61826APLATE, NOISE CONTROL, NO.3
61951BRACKET, SIDE TRIM, RH
62152BPAD, COWL SIDE SILENCER, NO.2
62554BPAD, PILLAR, NO.4
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
75941ASTRIPE, CENTER PILLAR, RH
90105A0204
main90105-A0204
90119A0092
main90119-A0092
9017906308
main90179-06308
9054111010
main90541-11010

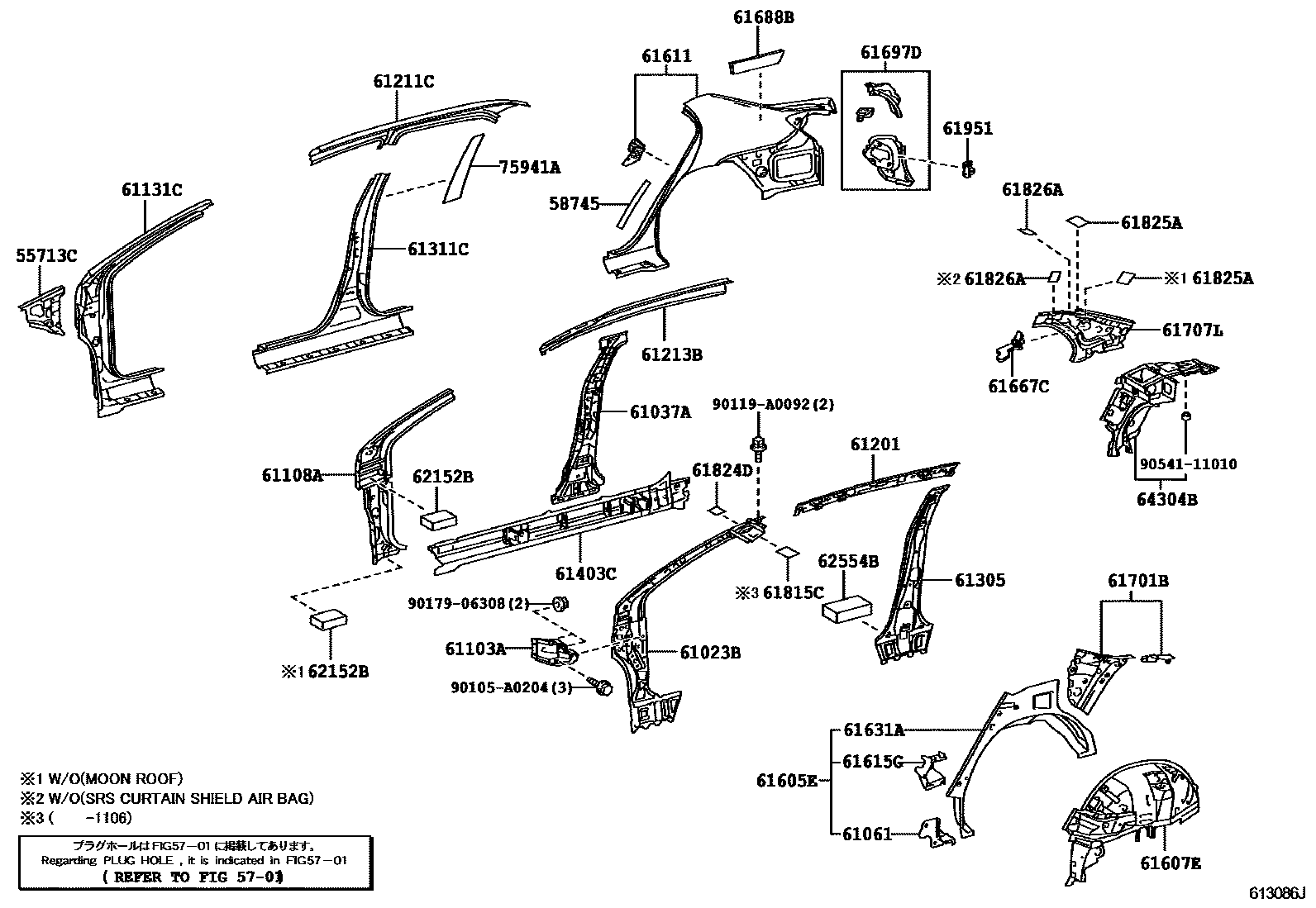

38 parts on this diagram · 2 diagrams in section
