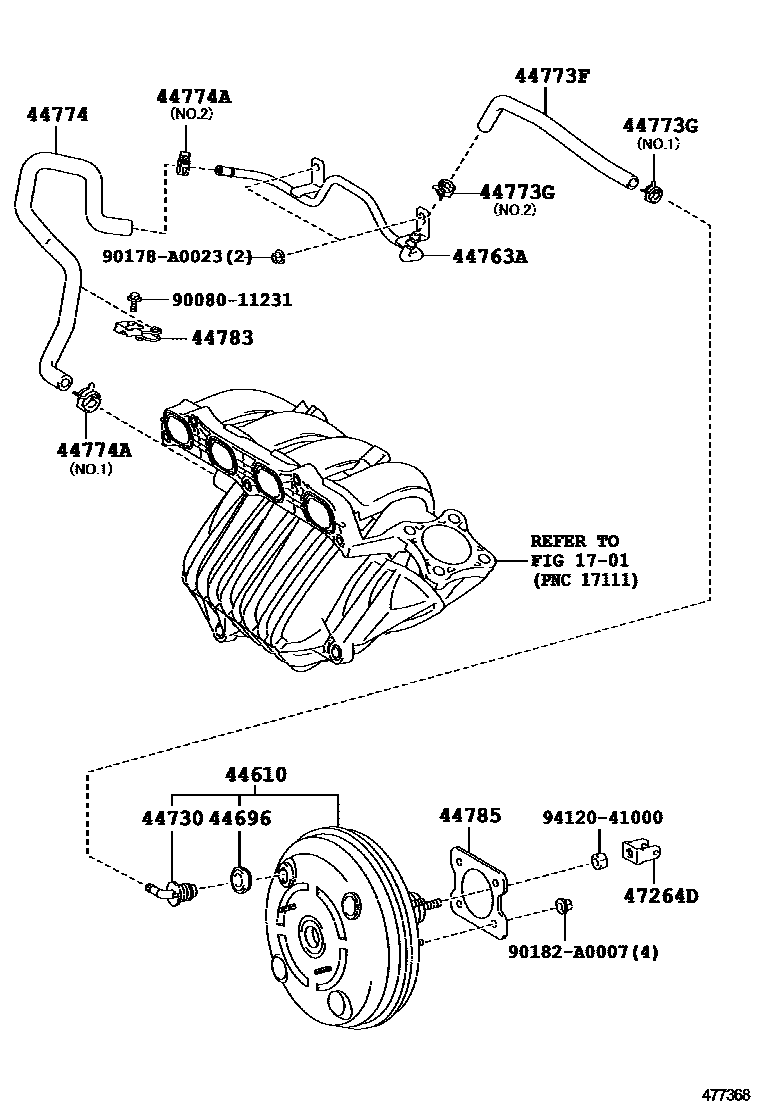

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-02440iAZE141..NAP200801-200802

VSC-WITH (W/CUT OFF SW)

sub44610-02441

main44610-02441iZRE142..NAP..USA200902-201012

VSC-WITH (W/CUT OFF SW) V2P

main44610-02441iAZE141..NAP200803-201012

main44610-02450iZRE142..NAP200801-200803

sub44610-02451

main44610-02451iZRE142..NAP..USA200803-201012

44696GROMMET, CHECK VALVE

main90080-48071iAZE141,ZRE142..NAP200801-201012

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iAZE141,ZRE142..NAP200801-200807

main44730-20170iAZE141,ZRE142..NAP200808-201012

44763ATUBE, HOSE TO HOSE, NO.1

main44763-02080iAZE141..NAP200801-201012

44773FHOSE, UNION TO CHECK VALVE

main44773-02050iZRE142..NAP200801-201012

main44773-02060iAZE141..NAP200801-201012

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iAZE141,ZRE142..NAP200801-201012

NO.1

main96133-41500iAZE141,ZRE142..NAP200801-201012

NO.2

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02080iAZE141..NAP200801-201012

main44774-02090iZRE142..NAP200801-201012

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-A0025iAZE141..NAP201201

NO.1

main96133-41500iAZE141..NAP200801-201012

NO.2

main96136-51801iAZE141..NAP200801-201112

NO.1

44783CLAMP, VACUUM HOSE

main44783-44010iAZE141..NAP200801-201012

44785GASKET, BRAKE BOOSTER

main44785-02060iAZE141,ZRE142..NAP200801-201012

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iAZE141,ZRE142..NAP200801-201012

9008011231

main90080-11231

90178A0023

main90178-A0023

90182A0007

main90182-A0007

9412041000

main94120-41000

16 parts on this diagram · 2 diagrams in section
