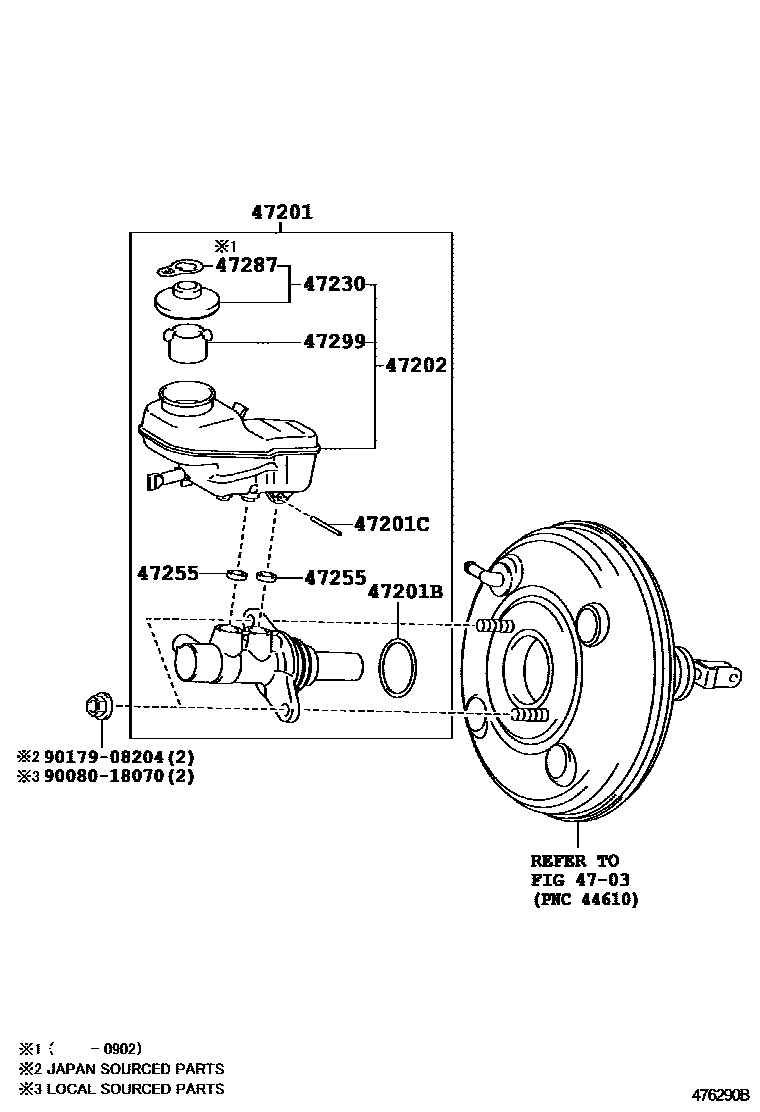

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02480iZRE142..NAP200801-200902

VSC-WITH (W/CUT OFF SW)

sub47201-02481

main47201-02490iZRE142..NAP200801-200902

sub47201-02491

main47201-02491iZRE142..NAP..CND200902-201012

MEXICO SPEC

main47201-02591iAZE141..NAP;ZRE142..NAP..USA200902-201012

VSC-WITH (W/CUT OFF SW) V2P

sub47201-02593

main47201-02591iAZE141,ZRE142..NAP201012-201205

sub47201-02593

main47201-02593iAZE141,ZRE142..NAP201206

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iAZE141,ZRE142..NAP200801-201012

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAZE141,ZRE142..NAP200801-201012

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-02270iAZE141,ZRE142..NAP200801-200902

sub47220-02271

main47220-02271iAZE141,ZRE142..NAP200902-201012

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iAZE141,ZRE142..NAP200902-201012

sub47230-01031

main47230-02270iAZE141,ZRE142..NAP200801-200902

sub47230-02271

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iAZE141,ZRE142..NAP200801-201012

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iAZE141,ZRE142..NAP200801-200902

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iAZE141,ZRE142..NAP200801-201012

9008018070

main90080-18070

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
