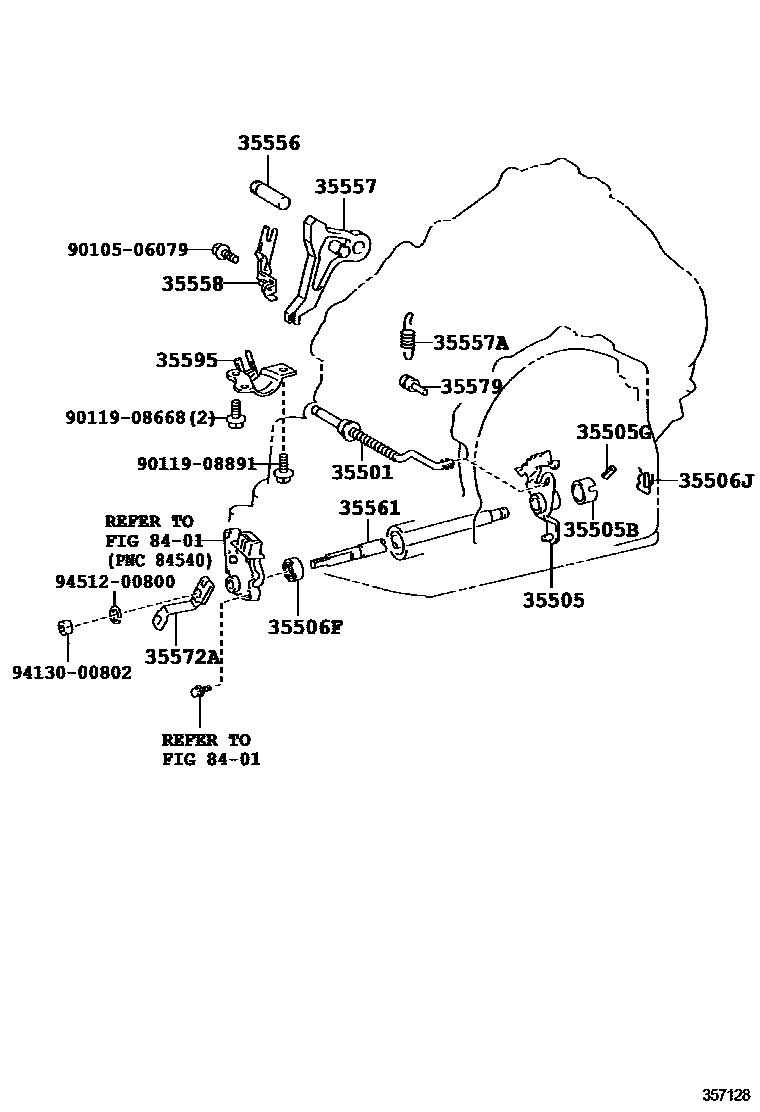

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U250E 0002 1U341E

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iAZE141..NAP..5FC200801-201012

main35501-52020iZRE142..NAP..4FC200801-201101

sub35501-52021

main35501-52021iZRE142..NAP..4FC201101

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-20030iZRE142..NAP..4FC200801-201012

main35505-21010iAZE141..NAP..5FC200801-201012

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iAZE141,ZRE142..NAP..ATM200801-201012

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iAZE141..NAP..5FC200801-201012

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAZE141,ZRE142..NAP..ATM200801-201012

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iAZE141,ZRE142..NAP..ATM200801-201012

35556SHAFT, PARKING LOCK PAWL

main35556-32020iZRE142..NAP..4FC200801-201012

main35556-32030iAZE141..NAP..5FC200801-201012

35557PAWL, PARKING LOCK

main35557-52020iZRE142..NAP..4FC200801-201106

sub35557-52021

main35557-52021iZRE142..NAP..4FC201106

main35590-32010iAZE141..NAP..5FC200801-201012

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iAZE141..NAP..5FC200801-201012

main90949-03089iZRE142..NAP..4FC200801-201012

35558CLAMP, PAWL SHAFT

main35558-32010iAZE141..NAP..5FC200801-201012

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iAZE141..NAP..5FC200801-201012

main35561-52020iZRE142..NAP..4FC200801-201012

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-28120iAZE141..NAP..5FC200801-201308

sub35572-42020

main35572-52030iZRE142..NAP..4FC200801-201308

35579PIN, PARKING LOCK PAWL

main35594-21010iAZE141..NAP..5FC200801-201012

35595BRACKET, PARKING LOCK PAWL

main35595-21010iAZE141..NAP..5FC200801-201012

main35595-52020iZRE142..NAP..4FC200801-201012

8401

9010506079

main90105-06079

9011908668

main90119-08668

9011908891

main90119-08891

9413000802

main94130-00802

9451200800

main94512-00800

20 parts on this diagram · 2 diagrams in section
