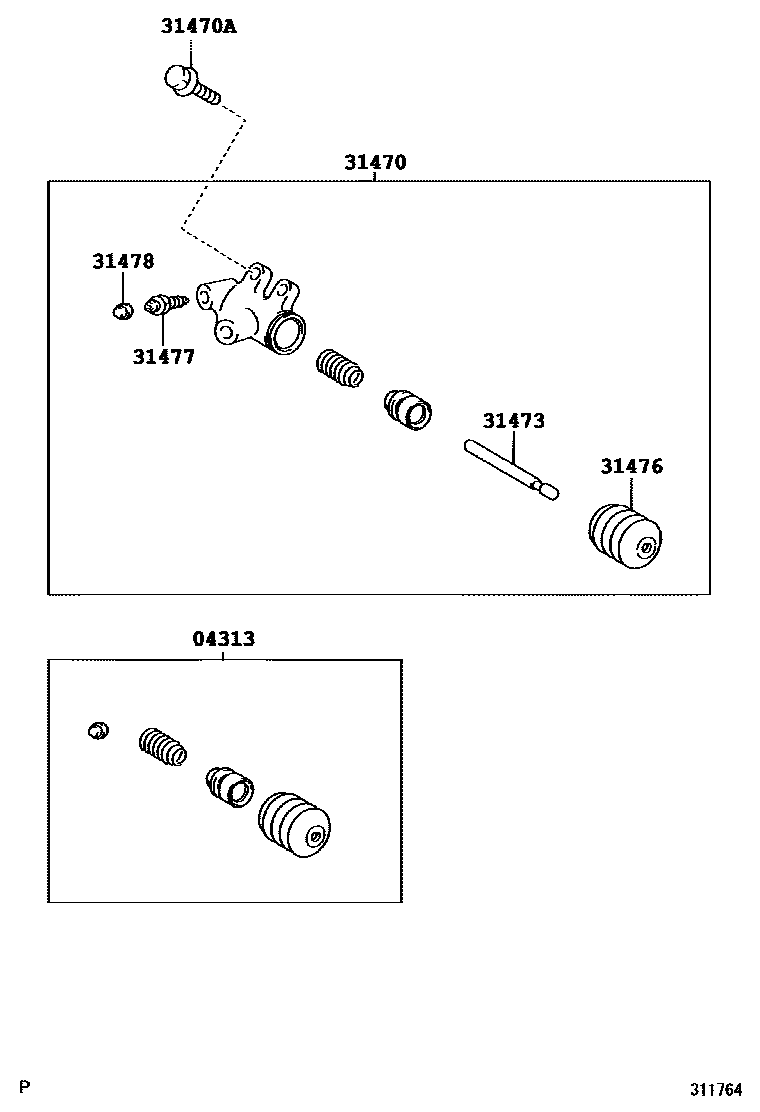

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iZRE142..NAP..5F¥780200801-201012

main04313-53010iAZE141..NAP..5F¥780200801-201012

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12160iZRE142..NAP..5F200801-201211

sub31470-12161

main31470-12161iZRE142..NAP..5F201211

main31470-42040iAZE141..NAP..5F200801-201012

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iAZE141..NAP..5F¥80200801-201308

*8-1.25PX25-20.1

main91611-60822iZRE142..NAP..5F¥170200801-201308

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iAZE141,ZRE142..NAP..5F¥520200801-201012

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAZE141,ZRE142..NAP..5F¥230200801-201012

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAZE141,ZRE142..NAP..5F¥200200801-201012

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAZE141,ZRE142..NAP..5F¥160200801-201012

7 parts on this diagram · 2 diagrams in section
