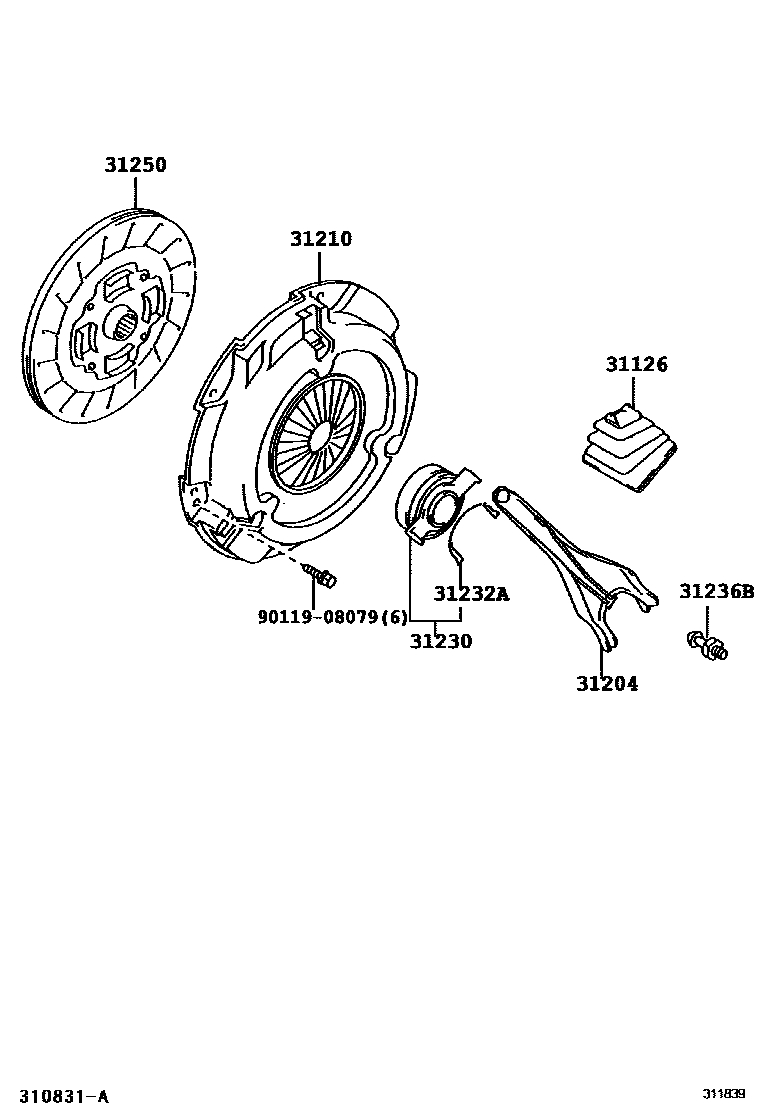

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZRE142..NAP..5F200801-201012

main31126-32010iAZE141..NAP..5F200801-201012

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iAZE141..NAP..5F200801-201012

main31204-52010iZRE142..NAP..5F200801-201012

31210COVER ASSY, CLUTCH

main31210-02300iZRE142..NAP..5F200801-201012

main31210-33042iAZE141..NAP..5F200801-201012

31230BEARING ASSY, CLUTCH RELEASE

main31230-12191iZRE142..NAP..5F200801-201012

main31230-33020iAZE141..NAP..5F200801-201012

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZRE142..NAP..5F200801-201012

main31232-20020iAZE141..NAP..5F200801-201012

31236BSUPPORT, RELEASE FORK

main31236-12020iZRE142..NAP..5F200801-201012

main31236-20060iAZE141..NAP..5F200801-201012

31250DISC ASSY, CLUTCH

main31250-02240iZRE142..NAP..5F200801-201308

main31250-33040iAZE141..NAP..5F200801-201108

sub31250-33041

main31250-33041iAZE141..NAP..5F201109-201308

sub31250-33042

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section
