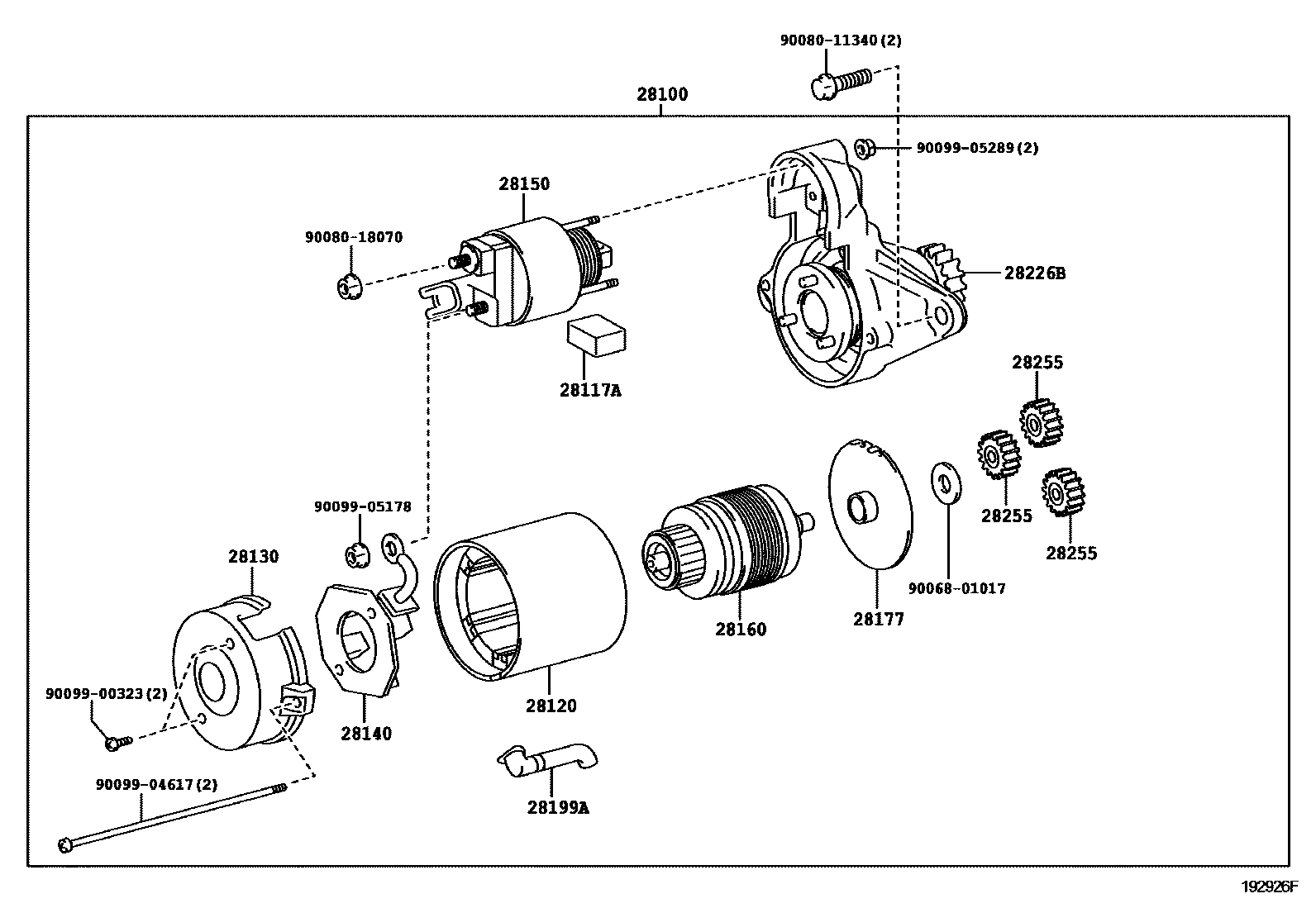

STARTER

0001 112V 1.6KW 0002 112V 1.6KW 0003 112V 1.6KW 0004 112V 1.6KW 0005 112V 1.6KW

28100STARTER ASSY

main28100-0H090i2AZFE..AZE141..NAP201012-201108

12V 1.6KW

main28100-0H091i2AZFE..AZE141..NAP201108

12V 1.6KW

main28100-0T050i2ZRFE..ZRE142..NAP201012-201108

12V 1.6KW

main28100-0T051i2ZRFE..ZRE142..NAP201108-201209

12V 1.6KW

main28100-0T260i2ZRFE..ZRE142..NAP201210

12V 1.6KW

28117ASEAL, RUBBER

main28117-0H090i2AZFE,2ZRFE..AZE141,ZRE142..NAP200801-201012

28120YOKE ASSY, STARTER

main28120-0H090i2AZFE..AZE141..NAP200801-201012

main28120-0T050i2ZRFE..ZRE142..NAP201012-201210

main28120-28060i2ZRFE..ZRE142..NAP201210

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0H090i2AZFE..AZE141..NAP200801-201012

main28130-0T050i2ZRFE..ZRE142..NAP200801-201012

main28130-37120i2ZRFE..ZRE142..NAP201210

28140HOLDER ASSY, STARTER BRUSH

main28140-0H100i2AZFE..AZE141..NAP200801-200911

main28140-31090i2AZFE..AZE141..NAP201012

main28140-37050i2ZRFE..ZRE142..NAP201012-201210

28150SWITCH ASSY, MAGNET STARTER

main28150-28060i2AZFE..AZE141..NAP201108-201201

main28150-37050i2ZRFE..ZRE142..NAP200801-200904

main28150-37060i2ZRFE..ZRE142..NAP200904-201012

main28150-40090i2AZFE..AZE141..NAP201012-201108

28160ARMATURE ASSY, STARTER

main28160-21060i2ZRFE..ZRE142..NAP201210

main28160-37050i2AZFE..AZE141..NAP201012

sub28160-75210

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2ZRFE..ZRE142..NAP201210

main28177-37050i2AZFE,2ZRFE..AZE141,ZRE142..NAP200801-201012

28199APROTECTOR, DUST STARTER

main28199-0H090i2AZFE..AZE141..NAP201012-201108

main28199-0T050i2ZRFE..ZRE142..NAP200801-201012

28226BSTARTER KIT, REPAIR SERVICE

main28226-0A010i2AZFE..AZE141..NAP201012

main28226-0H090i2AZFE..AZE141..NAP200801-200904

main28226-37120i2ZRFE..ZRE142..NAP201210

28255GEAR, PLANET

main28255-28040×3i2ZRFE..ZRE142..NAP201210

main28255-37050×3i2AZFE,2ZRFE..AZE141,ZRE142..NAP200801-201012

9006801017

main90068-01017

9008011340

main90080-11340

9008018070

main90080-18070

9009900323

main90099-00323

9009904617

main90099-04617

9009905178

main90099-05178

9009905289

main90099-05289

18 parts on this diagram · 5 diagrams in section
