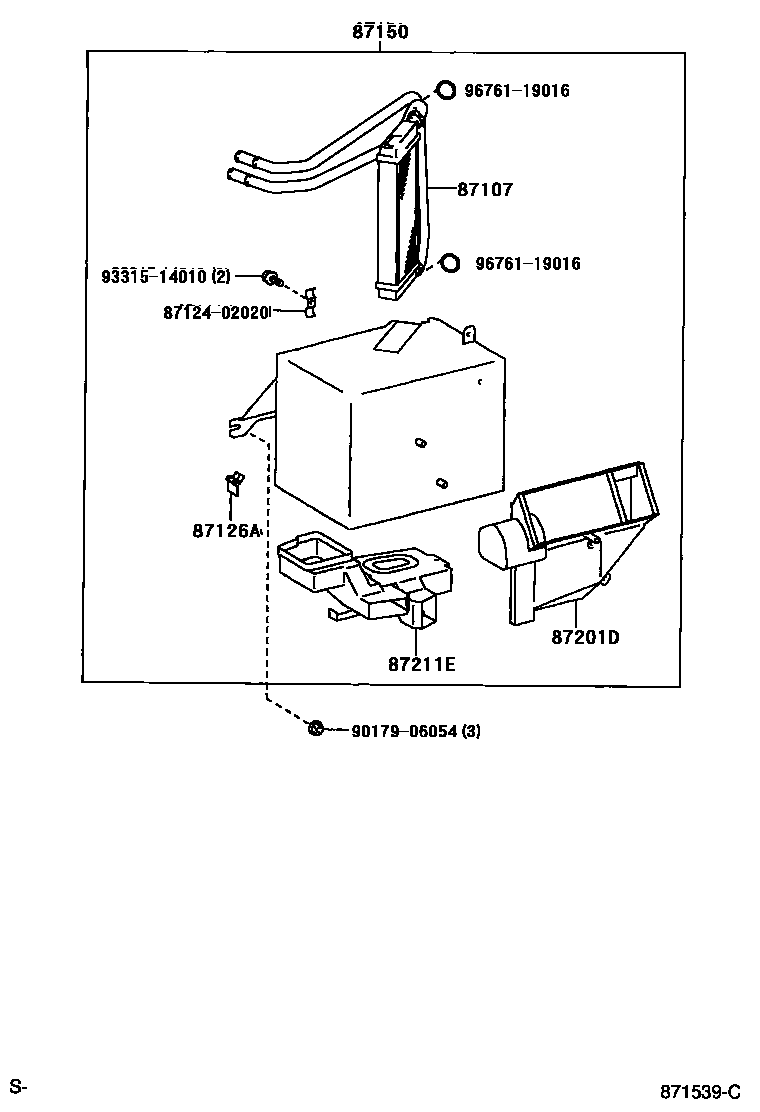

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-02050iZZE110..TAIW,USA199708

main87107-02060iZZE110..CND199708

COLD SPEC

87126ACLAMP, HEATER CONTROL

main87126-02010iZZE110199708

87150RADIATOR ASSY, HEATER

main87150-02050iZZE110..TAIW,USA199708

main87150-02060iZZE110..CND199708

COLD SPEC

87201DDUCT SUB-ASSY, AIR

main87201-02030iZZE110199708

87211EDUCT, AIR

main87211-02040iZZE110..TAIW,USA199708

main87211-02050iZZE110..CND199708

COLD SPEC

8712402020CLAMP, HEATER

main87124-02020

9017906054

main90179-06054

9331514010

main93315-14010

9676119016

main96761-19016

9 parts on this diagram · 2 diagrams in section
