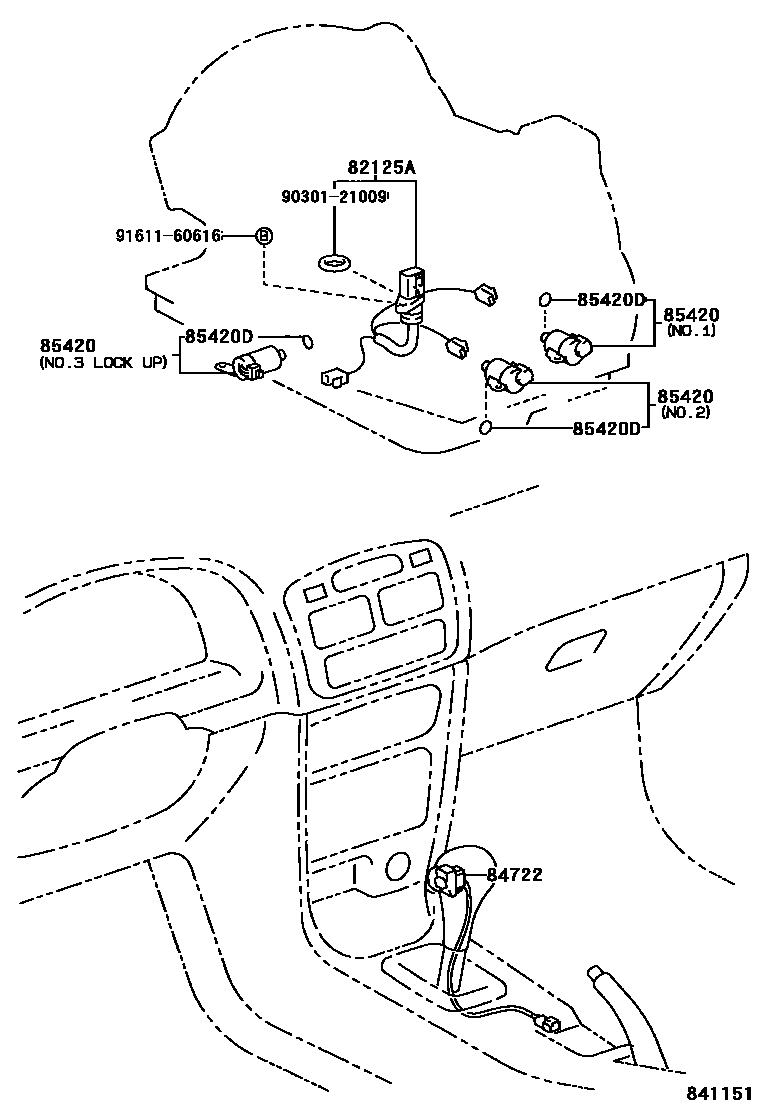

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-12350iZZE110..4FC199708

84722SWITCH, TRANSMISSION CONTROL

main84722-02030-B1iZZE110..4FC199708-199908

MD.CHARCOAL,TRIM1#

main84722-02030-E0iZZE110..4FC..(CND,USA)199708-199908

MD.NEUTRAL BONE,TRIM4#

main84722-02040-B1iZZE110..4FC..(CE1,CE2,LE1,LE2,VE)199908

MD. CHARCOAL,TRIM1#

main84722-02040-C0iZZE110..4FC..S200005

BLACK,TRIM2#

main84722-02040-E0iZZE110..4FC..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199908

MD. NEUTRAL BONE,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iZZE110..4FC199708-199809

NO.1

sub85420-21010

main85420-12120iZZE110..4FC199708-199809

NO.2

sub85420-21030

main85420-12140iZZE110..4FC199708-199809

NO.3(LOCK UP)

sub85420-21050

main85420-21010iZZE110..4FC199809-200005

NO.1,DENSO

main85420-21010iZZE110..4FC200005

NO.1

main85420-21020iZZE110..4FC199809-200005

NO.1,AISIN

sub85420-21010

main85420-21030iZZE110..4FC199809-200005

NO.2,DENSO

sub85420-21040

main85420-21040iZZE110..4FC200005

NO.2

main85420-21040iZZE110..4FC199809-200005

NO.2,AISIN

main85420-21050iZZE110..4FC199809-200005

NO.3(LOCK UP),DENSO

sub85420-21060

main85420-21060iZZE110..4FC199809-200005

NO.3(LOCK UP),AISIN

main85420-21060iZZE110..4FC200005

NO.3(LOCK UP)

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iZZE110..4FC199708

9030121009

main90301-21009

9161160616

main91611-60616

6 parts on this diagram · 1 diagram in section
