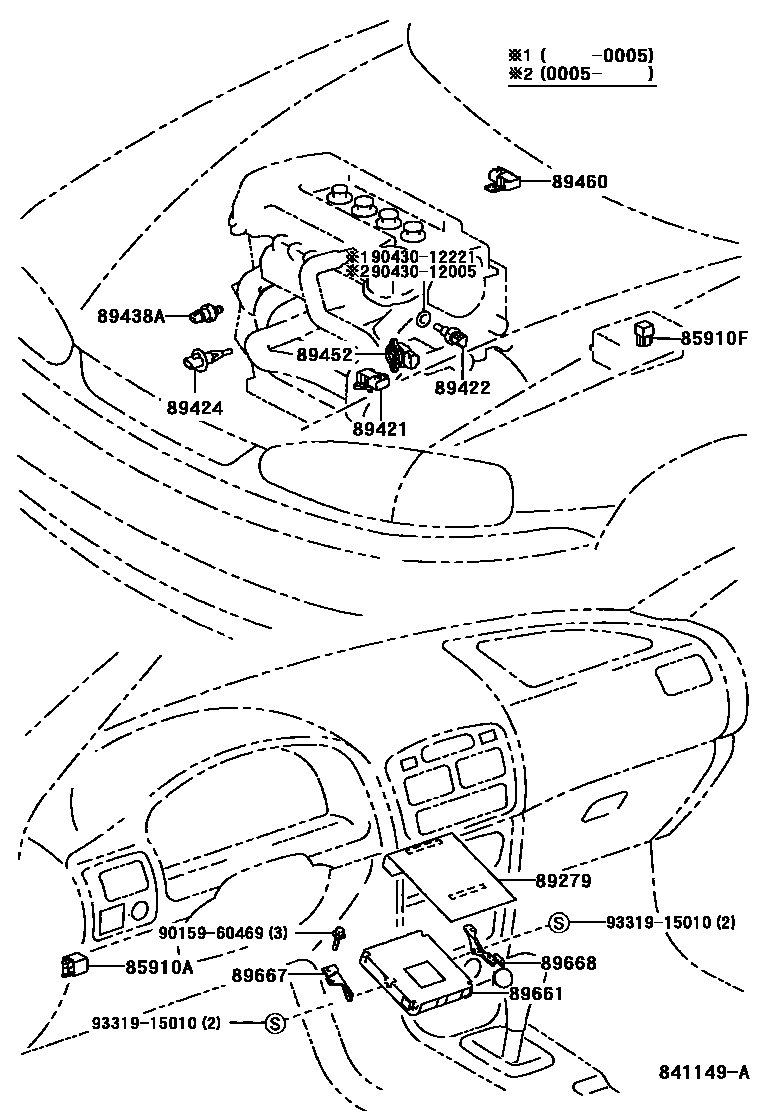

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90080-87010iZZE110199708

SIEMENS

sub90987-02027

main90084-98031iZZE110199708

DENSO USA

85910FRELAY, COMPUTER (FOR EFI)

main90080-87010iZZE110199708

SIEMENS

sub90987-02027

main90084-98031iZZE110199708

DENSO USA

89279COVER, ENGINE CONTROL COMPUTER

main89279-02050iZZE110199708

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-02030iZZE110199708-199908

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iZZE110199708

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-06010iZZE110199708-199908

main89424-12010iZZE110199708-199908

DENSO

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iZZE110199708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-02020iZZE110199808

PART NUMBER LABEL=89452-02020

main89452-20130iZZE110199708-199808

main89452-20130iZZE110199808

PART NUMBER LABEL=89452-20130

89460SENSOR ASSY, VAPOR PRESSURE

main89460-02010iZZE110199803-199908

PART NUMBER LABEL=89460-02010

main89460-02020iZZE110199908

main89460-12010iZZE110199708-199803

main89460-12010iZZE110199803-199908

PART NUMBER LABEL=89460-12010

89661COMPUTER, ENGINE CONTROL

main89661-02350iZZE110..5F199708-199801

sub89661-02351

main89661-02351iZZE110..5F199801-199808

main89661-02360iZZE110..3FC199708-199801

sub89661-02361

main89661-02361iZZE110..3FC199801-199808

main89661-02370iZZE110..4FC..(CND,USA)199708-199801

sub89661-02371

main89661-02371iZZE110..4FC..(CND,USA)199801-199808

main89661-02380iZZE110..5F..(CE1,VE)..USA199708-199801

PUERTORICO SPEC

sub89661-02381

main89661-02381iZZE110..5F..(CE1,VE)..USA199801-199808

PUERTORICO SPEC

main89661-02390iZZE110..3FC..USA199708-199801

PUERTORICO SPEC

sub89661-02391

main89661-02391iZZE110..3FC..USA199801-199808

PUERTORICO SPEC

main89661-02400iZZE110..4FC..CE1..USA199708-199801

PUERTORICO SPEC

sub89661-02401

main89661-02401iZZE110..TAIW199801-199808

PUERTORICO SPEC

main89661-02410iZZE110..5F..USA199708-199801

CALIFORNIA SPEC

sub89661-02411

main89661-02411iZZE110..5F..USA199801-199808

CALIFORNIA SPEC

main89661-02420iZZE110..3FC..USA199708-199801

CALIFORNIA SPEC

sub89661-02421

main89661-02421iZZE110..3FC..USA199801-199808

CALIFORNIA SPEC

main89661-02430iZZE110..4FC..USA199708-199801

CALIFORNIA SPEC

sub89661-02431

main89661-02431iZZE110..4FC..USA199801-199808

CALIFORNIA SPEC

main89661-02540iZZE110..5F199808-199811

sub89661-02541

main89661-02541iZZE110..5F199811-199908

main89661-02550iZZE110..3FC199808-199811

sub89661-02551

main89661-02551iZZE110..3FC199811-199908

main89661-02560iZZE110..4FC..(CND,USA)199808-199811

sub89661-02561

main89661-02561iZZE110..4FC..(CND,USA)199811-199908

main89661-02570iZZE110..5F..(CE1,VE)..USA199808-199811

PUERTORICO SPEC

sub89661-02571

main89661-02571iZZE110..5F..(CE1,VE)..USA199811-200005

PUERTORICO SPEC

main89661-02580iZZE110..3FC..USA199808-199811

PUERTORICO SPEC

sub89661-02581

main89661-02581iZZE110..3FC..USA199811-200005

PUERTORICO SPEC

main89661-02590iZZE110..4FC..CE1..USA199808-199811

PUERTORICO SPEC

sub89661-02591

main89661-02591iZZE110..4FC..CE1..USA199811-200005

TAIWAN SPEC

main89661-02591iZZE110..TAIW199811-199908

main89661-02600iZZE110..5F..USA199808-199811

CALIFORNIA SPEC

sub89661-02601

main89661-02601iZZE110..5F..USA199811-199908

CALIFORNIA SPEC

main89661-02610iZZE110..3FC..USA199808-199811

CALIFORNIA SPEC

sub89661-02611

main89661-02611iZZE110..3FC..USA199811-200005

CALIFORNIA SPEC

main89661-02620iZZE110..3FC199808-200005

CALIFORNIA SPEC

sub89661-02621

main89661-02621iZZE110..4FC..USA199811-200005

CALIFORNIA SPEC

main89661-02670iZZE110..5F199908-199912

sub89661-02672

main89661-02671iZZE110..5F199912-200002

sub89661-02672

main89661-02672iZZE110..5F200002-200005

main89661-02680iZZE110..3FC199908-199912

sub89661-02682

main89661-02681iZZE110..3FC199912-200002

sub89661-02682

main89661-02682iZZE110..3FC200002-200005

main89661-02690iZZE110..4FC..(CND,USA)199908-199912

sub89661-02692

main89661-02691iZZE110..4FC..(CND,USA)199912-200002

sub89661-02692

main89661-02692iZZE110..4FC..(CND,USA)200002-200005

main89661-02720iZZE110..TAIW199908-199912

sub89661-02722

main89661-02721iZZE110..TAIW199912-200002

sub89661-02722

main89661-02722iZZE110..TAIW200002-200005

main89661-02781iZZE110..5F200005-200010

sub89661-02782

main89661-02782iZZE110..5F200010-200111

main89661-02783iZZE110..5F200111-200201

main89661-02791iZZE110..3FC200005-200010

sub89661-02792

main89661-02792iZZE110..3FC200010-200201

main89661-02801iZZE110..4FC..(CND,USA)200005-200010

sub89661-02802

main89661-02802iZZE110..4FC200010-200201

main89661-02811iZZE110..TAIW200005-200010

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02050iZZE110199708

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02020iZZE110199708

9015960469

main90159-60469

9043012005

main90430-12005

9043012221

main90430-12221

9331915010

main93319-15010

16 parts on this diagram · 1 diagram in section
