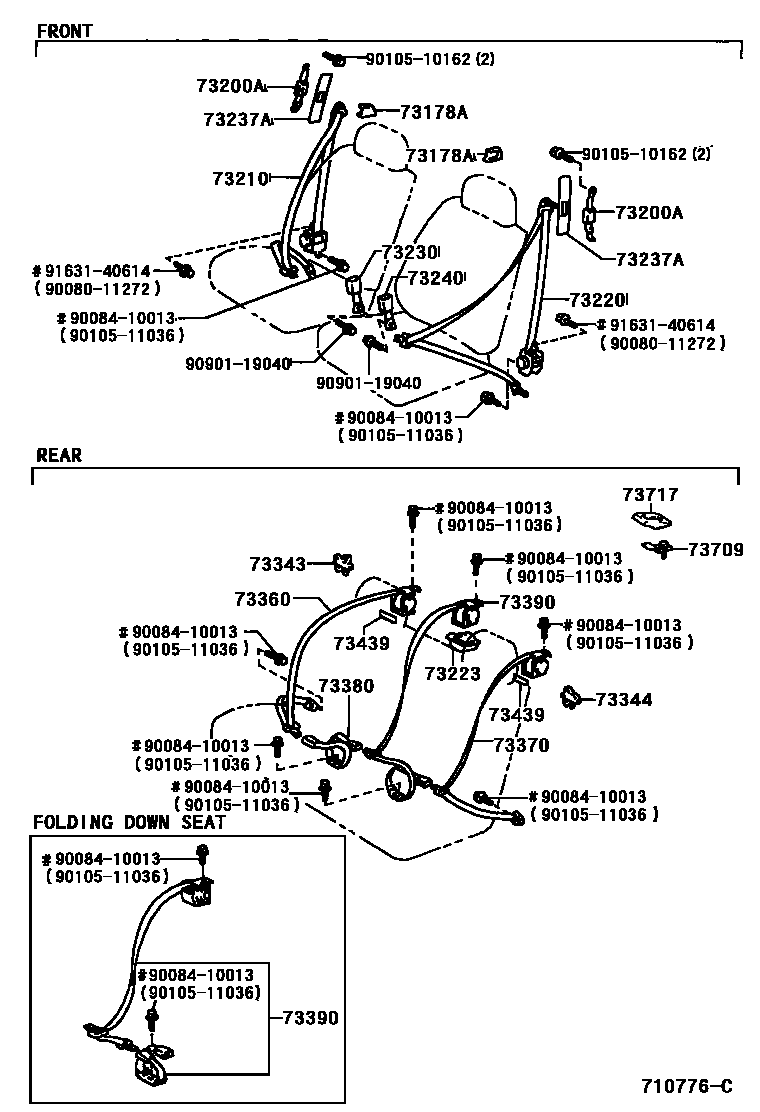

SEAT BELT & CHILD RESTRAINT SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-07020-B3iZZE110199708-200005

MD.CHARCOAL,TRIM1#

sub73178-07020

main73178-07020-E4iZZE110..CND,USA199708-200005

MD.NEUTRAL BONE,TRIM4#

sub73178-07020

main73178-AA010-B1iZZE110..S200005-200201

MD.CHARCOAL,TRIM1#

sub73178-AA010

sub73178-33020

main73178-AA010-B1iZZE110..CE2,LE2200005-200201

MD.CHARCOAL,TRIM2#

sub73178-AA010

sub73178-33020

main73178-AA010-E0iZZE110..(CE2,LE2)..(CND,USA)200005-200201

MD.NEUTRAL BONE,TRIM4#

sub73178-AA010

sub73178-33020

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-AA010-B3iZZE110..CE1,CE2,LE1,LE2,VE199708

MD.CHARCOAL,TRIM1#

main73200-AA010-B4iZZE110..S200005

LT.GRAY,TRIM2#

main73200-AA010-E2iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02040-B0iZZE110199708-199905

LABEL = 51188,SHADOW GRAY,TRIM1#

sub73210-02040

main73210-02040-E0iZZE110..CND,USA199708-199905

LABEL = 51188,OAK,TRIM4#

sub73210-02040

main73210-02041-B0iZZE110199905-200005

LABEL = A0110,SHADOW GRAY,TRIM1#

main73210-02041-E0iZZE110..CND,USA199905-200005

LABEL = A0110,OAK,TRIM4#

main73210-02042-B0iZZE110..CE2,LE2200005

SHADOW GRAY,TRIM1#

sub73210-02042

main73210-02042-C0iZZE110..S200005

BLACK,TRIM2#

sub73210-02042

main73210-02042-E0iZZE110..(CE2,LE2)..(CND,USA)200005

OAK,TRIM4#

sub73210-02042

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02030-B0iZZE110199708-199905

LABEL = 51189,SHADOW GRAY,TRIM1#

sub73220-02030

main73220-02030-E1iZZE110..CND,USA199708-199905

LABEL = 51189,OAK,TRIM4#

sub73220-02030

main73220-02031-B0iZZE110199905-200005

LABEL = A0109,SHADOW GRAY,TRIM1#

sub73220-02031

main73220-02031-E1iZZE110..CND,USA199905-200005

LABEL = A0109,OAK,TRIM4#

sub73220-02031

main73220-02032-B0iZZE110..CE2,LE2200005

SHADOW GRAY,TRIM1#

sub73220-02032

main73220-02032-C0iZZE110..S200005

BLACK,TRIM2#

sub73220-02032

main73220-02032-E1iZZE110..(CE2,LE2)..(CND,USA)200005

OAK,TRIM4#

sub73220-02032

73223COVER, SEAT BELT RETRACTOR

main73223-02010iZZE110199708

PLANT TMMC

main73223-02020iZZE110199708

PLANT NUMMI

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02020-B0iZZE110..CE1,CE2,LE1,LE2,VE199708

MD.CHARCOAL,TRIM1#

sub73230-02020

main73230-02020-C0iZZE110..S200005

BLACK,TRIM2#

sub73230-02020

main73230-02020-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

sub73230-02020

73237ACOVER, SHOULDER BELT ANCHOR

main73237-07010-B1iZZE110..S200005

LT.GRAY,TRIM2#

main73237-07010-B2iZZE110..CE1,CE2,LE1,LE2,VE199708

MD.CHARCOAL,TRIM1#

main73237-07010-E2iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02020-B0iZZE110199708-200005

MD.CHARCOAL,TRIM1#

sub73230-02020

main73230-02020-E0iZZE110..CND,USA199708-200005

MD.NEUTRAL BONE,TRIM4#

sub73230-02020

main73230-02040-B0iZZE110..CE2,LE2200005

MD.CHARCOAL,TRIM1#

sub73230-02040

main73230-02040-C0iZZE110..S200005

BLACK,TRIM2#

sub73230-02040

main73230-02040-E0iZZE110..(CE2,LE2)..(CND,USA)200005

MD.NEUTRAL BONE,TRIM4#

sub73230-02040

73343GUIDE, REAR SEAT SHOULDER BELT, RH

main73343-02010-B1iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

MD.CHARCOAL,TRIM1#

main73343-02010-C0iZZE110..S..CND200005

BLACK,TRIM2#

main73343-02010-E0iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

73344GUIDE, REAR SEAT SHOULDER BELT, LH

main73343-02010-B1iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

MD.CHARCOAL,TRIM1#

main73343-02010-C0iZZE110..S..CND200005

BLACK,TRIM2#

main73343-02010-E0iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-02090-B0iZZE110199708-199905

LABEL = 50198,SHADOW GRAY,TRIM1#,PLANT TMMC

sub73360-02090

main73360-02090-E0iZZE110..CND,USA199708-199905

LABEL = 50198,OAK,TRIM4#,PLANT TMMC

sub73360-02090

main73360-02091-B0iZZE110..CE1,CE2,LE1,LE2,VE199905

LABEL = A0112,SHADOW GRAY,TRIM1#,PLANT TMMC

sub73360-02091

main73360-02091-C0iZZE110..S200005

BLACK,TRIM2#,PLANT TMMC

sub73360-02091

main73360-02091-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199905

LABEL = A0112,OAK,TRIM4#,PLANT TMMC

sub73360-02091

main73360-02100-B0iZZE110199708-199905

LABEL = 16789,SHADOW GRAY,TRIM1#,PLANT NUMMI

main73360-02100-E0iZZE110..CND,USA199708-199905

LABEL = 16789,OAK,TRIM4#,PLANT NUMMI

main73360-02101-B0iZZE110..CE1,CE2,LE1,LE2,VE199905

LABEL = 21136,SHADOW GRAY,TRIM1#,PLANT NUMMI

main73360-02101-C0iZZE110..S200005

BLACK,TRIM2#,PLANT NUMMI

main73360-02101-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199905

LABEL = 21136,OAK,TRIM4#,PLANT NUMMI

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-02090-B0iZZE110199708-199905

LABEL = 50199,SHADOW GRAY,TRIM1#,PLANT TMMC

sub73370-02090

main73370-02090-E0iZZE110..CND,USA199708-199905

LABEL = 50199,OAK,TRIM4#,PLANT TMMC

sub73370-02090

main73370-02091-B0iZZE110..CE1,CE2,LE1,LE2,VE199905

LABEL = A0111,SHADOW GRAY,TRIM1#,PLANT TMMC

sub73370-02091

main73370-02091-C0iZZE110..S200005

BLACK,TRIM2#,PLANT TMMC

sub73370-02091

main73370-02091-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199905

LABEL = A0111,OAK,TRIM4#,PLANT TMMC

sub73370-02091

main73370-02100-B0iZZE110199708-199905

LABEL = 15405,SHADOW GRAY,TRIM1#,PLANT NUMMI

main73370-02100-E0iZZE110..CND,USA199708-199905

LABEL = 15405,OAK,TRIM4#,PLANT NUMMI

main73370-02101-B0iZZE110..CE1,CE2,LE1,LE2,VE199905

LABEL = 18382,SHADOW GRAY,TRIM1#,PLANT NUMMI

main73370-02101-C0iZZE110..S200005

BLACK,TRIM2#,PLANT NUMMI

main73370-02101-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199905

LABEL = 18382,OAK,TRIM4#,PLANT NUMMI

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73470-02030-B0iZZE110..CE1,CE2,LE1,LE2,VE199708

SHADOW GRAY,TRIM1#,PLANT TMMC

sub73470-02030

main73470-02030-C0iZZE110..S200005

BLACK,TRIM2#,PLANT TMMC

sub73470-02030

main73470-02030-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

OAK,TRIM4#,PLANT TMMC

sub73470-02030

main73470-02040-B0iZZE110..CE1,CE2,LE1,LE2,VE199708

SHADOW GRAY,TRIM1#,PLANT NUMMI

main73470-02040-C0iZZE110..S200005

BLACK,TRIM2#,PLANT NUMMI

main73470-02040-E1iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

OAK,TRIM4#,PLANT NUMMI

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73480-02030-B0iZZE110..VE;ZZE110..TAIW199708-199905

LABEL = A0029,SHADOW GRAY,TRIM1#,PLANT TMMC

main73480-02030-E0iZZE110..VE199708-199905

LABEL = A0029,OAK,TRIM4#,PLANT TMMC

main73480-02031-B0iZZE110..VE;ZZE110..TAIW199905-200005

LABEL = A0113,SHADOW GRAY,TRIM1#,PLANT TMMC

sub73480-02031

main73480-02031-B0iZZE110..CE2..(CND,USA);ZZE110..(CE2,LE2)..TAIW200005

W(FIXED TYPE REAR SEAT),SHADOW GRAY,TRIM1#,PLANT TMMC

sub73480-02031

main73480-02031-C0iZZE110..S200005

W(FIXED TYPE REAR SEAT),BLACK,TRIM2#,PLANT TMMC

sub73480-02031

main73480-02031-E0iZZE110..CE2..(CND,USA)200005

W(FIXED TYPE REAR SEAT),OAK,TRIM4#,PLANT TMMC

sub73480-02031

main73480-02031-E0iZZE110..VE199905-200005

LABEL = A0113,OAK,TRIM4#,PLANT TMMC

sub73480-02031

main73480-02040-B0iZZE110..VE;ZZE110..TAIW199708-199905

LABEL = 15414,SHADOW GRAY,TRIM1#,PLANT NUMMI

main73480-02040-E0iZZE110..VE199708-199905

LABEL = 15414,OAK,TRIM4#,PLANT NUMMI

main73480-02041-B0iZZE110..VE;ZZE110..TAIW199905-200005

LABEL = 19182,SHADOW GRAY,TRIM1#,PLANT NUMMI

main73480-02041-B0iZZE110..CE2..(CND,USA);ZZE110..(CE2,LE2)..TAIW200005

W(FIXED TYPE REAR SEAT),SHADOW GRAY,TRIM1#,PLANT NUMMI

main73480-02041-C0iZZE110..S200005

W(FIXED TYPE REAR SEAT),BLACK,TRIM2#,PLANT NUMMI

main73480-02041-E0iZZE110..VE199905-200005

LABEL = 19182,OAK,TRIM4#,PLANT NUMMI

main73480-02041-E0iZZE110..CE2..(CND,USA)200005

W(FIXED TYPE REAR SEAT),OAK,TRIM4#,PLANT NUMMI

main73480-02050-B0iZZE110..(CE1,LE1)..(CND,USA)199708-199905

LABEL = A0031,SHADOW GRAY,TRIM1#,PLANT TMMC

main73480-02050-E0iZZE110..(CE1,LE1)..(CND,USA)199708-199905

LABEL = A0031,OAK,TRIM4#,PLANT TMMC

main73480-02051-B0iZZE110..CE2..CND;ZZE110..LE2..(CND,USA)200005

W(FOLDING REAR SEAT),SHADOW GRAY,TRIM1#,PLANT TMMC

sub73480-02051

main73480-02051-B0iZZE110..(CE1,LE1)..(CND,USA)199905-200005

LABEL = A0117,SHADOW GRAY,TRIM1#,PLANT TMMC

sub73480-02051

main73480-02051-C0iZZE110..S..CND200005

W(FOLDING REAR SEAT),BLACK,TRIM2#,PLANT TMMC

sub73480-02051

main73480-02051-E0iZZE110..CE2..CND;ZZE110..LE2..(CND,USA)200005

W(FOLDING REAR SEAT),OAK,TRIM4#,PLANT TMMC

sub73480-02051

main73480-02051-E0iZZE110..(CE1,LE1)..(CND,USA)199905-200005

LABEL = A0117,OAK,TRIM4#,PLANT TMMC

sub73480-02051

main73480-02060-B0iZZE110..(CE1,LE1)..(CND,USA)199708-199905

LABEL = 15654,SHADOW GRAY,TRIM1#,PLANT NUMMI

main73480-02060-E0iZZE110..(CE1,LE1)..(CND,USA)199708-199905

LABEL = 15654,OAK,TRIM4#,PLANT NUMMI

main73480-02061-B0iZZE110..(CE1,LE1)..(CND,USA)199905-200005

LABEL = 18387,SHADOW GRAY,TRIM1#,PLANT NUMMI

main73480-02061-B0iZZE110..CE2..CND;ZZE110..LE2..(CND,USA)200005

W(FOLDING REAR SEAT),SHADOW GRAY,TRIM1#,PLANT NUMMI

main73480-02061-C0iZZE110..S..CND200005

W(FOLDING REAR SEAT),BLACK,TRIM2#,PLANT NUMMI

main73480-02061-E0iZZE110..(CE1,LE1)..(CND,USA)199905-200005

LABEL = 18387,OAK,TRIM4#,PLANT NUMMI

main73480-02061-E0iZZE110..CE2..CND;ZZE110..LE2..(CND,USA)200005

W(FOLDING REAR SEAT),OAK,TRIM4#,PLANT NUMMI

73439CUSHION, REAR SEAT BELT RETRACTOR

main73439-02010iZZE110199708

73709BRACKET SUB-ASSY, TETHER ANCHOR

main73708-12060iZZE110199908

RH & LH

main73708-50020iZZE110199908

CENTER

main73709-20010iZZE110..CND199708-199908

73717COVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-50011-B1iZZE110..CE1,CE2,LE1,LE2,VE199908

MD.CHARCOAL,TRIM1#

sub73717-50011

main73717-50011-C0iZZE110..S200005

BLACK,TRIM2#

sub73717-50011

main73717-50011-E1iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199908

MD.NEUTRAL BONE,TRIM4#

sub73717-50011

9008011272

main90080-11272

9008410013

main90084-10013

9010510162

main90105-10162

9010511036

main90105-11036

9090119040

main90901-19040

9163140614

main91631-40614

23 parts on this diagram · 1 diagram in section
