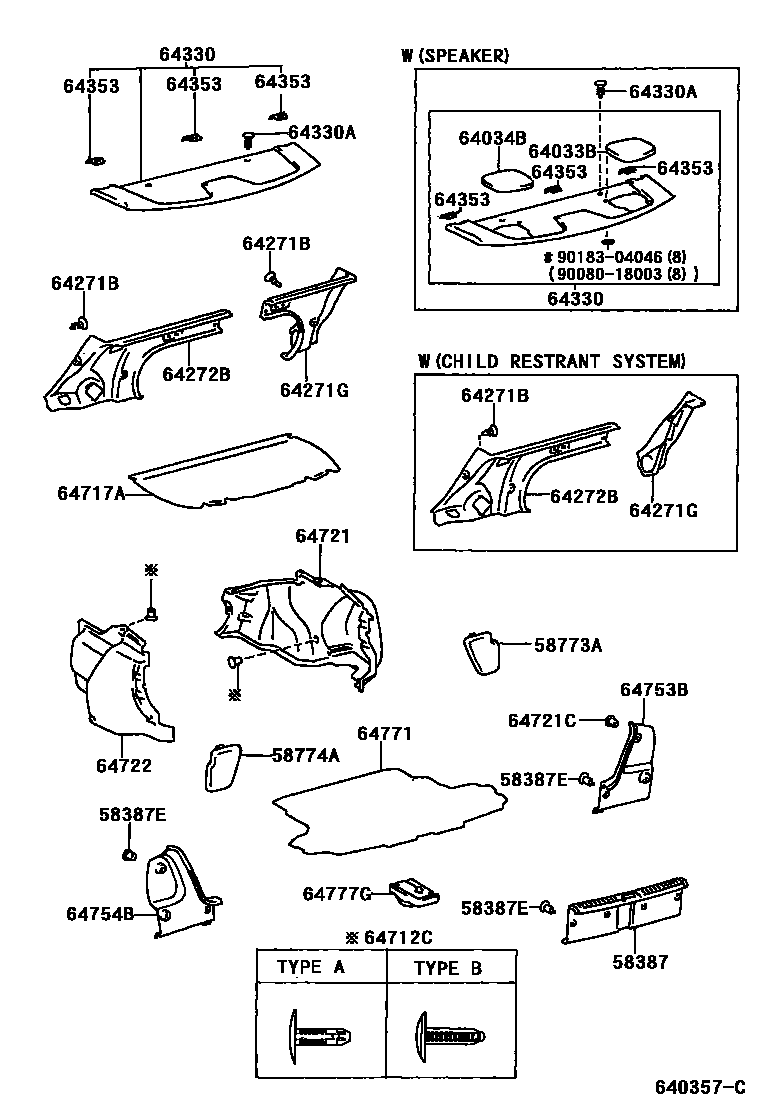

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02020-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#,4#

main58387-02020-C0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

BLACK,TRIM1#

main58387-02020-C0iZZE110..S200005

BLACK,TRIM2#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-06133-C0iZZE110..CND,USA199708-199808

BLACK,TRIM1#,4#&040 ,205 ,3L3 ,3M5 ,4N4 ,6P5 ,760 ,8K8 ,932

sub90467-06133

main90467-06133-C0iZZE110..CND,USA199708-199808

BLACK,TRIM1#&040 ,205 ,3L3 ,3M5 ,4N4 ,6P5 ,760 ,8K8 ,932

sub90467-06133

main90467-06133-C0iZZE110..CND,USA199808-199908

BLACK,TRIM1#,4#&040 ,1C4 ,205 ,3M5 ,3M8 ,6M1 ,760 ,762 ,8M8

sub90467-06133

main90467-06133-C0iZZE110..CND,USA199808-199908

BLACK,TRIM1#&040 ,1C4 ,205 ,3M5 ,3M8 ,6M1 ,760 ,762 ,8M8

sub90467-06133

main90467-06133-C0iZZE110..TAIW199908-200005

BLACK,TRIM1#&040 ,1C4 ,209 ,3M5 ,3M8 ,6R1 ,760 ,762 ,8M8

sub90467-06133

main90467-06133-C0iZZE110..TAIW199908-200005

BLACK,TRIM1#,4#&040 ,1C4 ,209 ,3M5 ,3M8 ,6R1 ,760 ,762 ,8M8

sub90467-06133

main90467-06133-C0iZZE110..S200005

BLACK,TRIM2#&040 ,1C4 ,209 ,3M5 ,3P1 ,6R1 ,760 ,762 ,8P4

sub90467-06133

main90467-06133-C0iZZE110..S200005

BLACK,TRIM1#&040 ,1C4 ,209 ,3M5 ,3P1 ,6R1 ,760 ,762 ,8P4

sub90467-06133

main90467-06133-C0iZZE110..S200005

BLACK,TRIM1#,4#&040 ,1C4 ,209 ,3M5 ,3P1 ,6R1 ,760 ,762 ,8P4

sub90467-06133

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-02010iZZE110..TAIW199708-200005

TRIM1#,4#

main58773-02010iZZE110..CND,USA199708-200005

TRIM1#

main58773-02010iZZE110200005

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-02010iZZE110199708

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-02030-B1iZZE110..CE1,CE2,LE1,LE2,VE199708

MD.CHARCOAL,TRIM1#

main64383-02030-C0iZZE110..S200005

BLACK,TRIM2#

main64383-02030-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64384-02020-B1iZZE110..CE1,CE2,LE1,LE2,VE199708

MD.CHARCOAL,TRIM1#

main64384-02020-C0iZZE110..S200005

BLACK,TRIM2#

main64384-02020-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-05022-B2iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

W(CHILD RESTRAINT SYSTEM),MD.CHARCOAL,TRIM1#

sub90467-05022

main90467-05022-B2iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

MD.CHARCOAL,TRIM1#

sub90467-05022

main90467-05022-C0iZZE110..S..CND200005

BLACK,TRIM2#

sub90467-05022

main90467-05022-E0iZZE110..(CE1,LE1,LE2)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

sub90467-05022

main90467-05022-E0iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

W(CHILD RESTRAINT SYSTEM),MD.NEUTRAL BONE,TRIM4#

sub90467-05022

64271GBOARD, ROOM PARTITION, RH

main64271-02030-B1iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

MD.CHARCOAL,TRIM1#

main64271-02030-C0iZZE110..S..CND200005

BLACK,TRIM2#

main64271-02030-E0iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

main64271-02040-B1iZZE110..(CE1,LE1,LE2)..(CND,USA)199708

W(CHILD RESTRAINT SYSTEM),MD.CHARCOAL,TRIM1#

main64271-02040-E0iZZE110..(CE1,LE1,LE2)..(CND,USA)199708

W(CHILD RESTRAINT SYSTEM),MD.NEUTRAL BONE,TRIM4#

64272BBOARD, ROOM PARTITION, LH

main64272-02020-B1iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

MD.CHARCOAL,TRIM1#

main64272-02020-C0iZZE110..S..CND200005

BLACK,TRIM2#

main64272-02020-E0iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02110iZZE110..3FC..CND199801-199808

sub64330-02111

main64330-02110-B0iZZE110..USA;ZZE110..(4FC,5F)..(CE1,VE)..CND199801-199808

MEDIUM CHARCOAL,TRIM4#

sub64330-02111

main64330-02110-B0iZZE110..USA;ZZE110..(CE1,VE)..CND199708-199801

MEDIUM CHARCOAL,TRIM1#

sub64330-02111

main64330-02110-E1iZZE110..USA;ZZE110..(CE1,VE)..CND199708-199801

MEDIUM NEUTRAL BONE,TRIM4#

sub64330-02111

main64330-02110-E1iZZE110..4FC,5F;ZZE110..3FC..USA199801-199808

W(SPEAKER),MEDIUM NEUTRAL BONE,TRIM4#

sub64330-02111

main64330-02111-B0iZZE110..(CE1,VE)..CND199808-199908

MEDIUM CHARCOAL,TRIM1#

main64330-02111-E1iZZE110..(CE1,VE)..CND199808-199908

MEDIUM NEUTRAL BONE,TRIM4#

main64330-02120iZZE110199801-199808

W(SPEAKER)

sub64330-02121

main64330-02120-B0iZZE110199708-199801

W(SPEAKER),MEDIUM CHARCOAL,TRIM1#

sub64330-02121

main64330-02120-E1iZZE110..CND,USA199708-199801

W(SPEAKER),MEDIUM NEUTRAL BONE,TRIM4#

sub64330-02121

main64330-02121-B0iZZE110199808-199908

W(SPEAKER),MEDIUM CHARCOAL,TRIM1#

main64330-02121-E1iZZE110..CND,USA199808-199908

W(SPEAKER),MEDIUM NEUTRAL BONE,TRIM4#

main64330-02140-B0iZZE110..(CE1,CE2,LE2,VE)..CND199908

MEDIUM CHARCOAL,TRIM1#

main64330-02140-C0iZZE110..S..CND200005

BLACK,TRIM2#

main64330-02140-E0iZZE110..(CE1,CE2,LE2,VE)..CND199908

MEDIUM NEUTRAL BONE,TRIM4#

main64330-02150-B0iZZE110..(CE1,VE)..CND199908-200005

W(SPEAKER),MEDIUM CHARCOAL,TRIM1#,PLANT TMMC

sub64330-02190

main64330-02150-B0iZZE110..TAIW,USA;ZZE110..LE1..CND199908-200005

MEDIUM CHARCOAL,TRIM1#,PLANT TMMC

sub64330-02190

main64330-02150-E0iZZE110..(CE1,VE)..CND199908-200005

MEDIUM NEUTRAL BONE,TRIM4#,PLANT TMMC

sub64330-02190

main64330-02150-E0iZZE110..(CE1,VE)..USA;ZZE110..LE1..(CND,USA)199908-200005

W(SPEAKER),MEDIUM NEUTRAL BONE,TRIM4#,PLANT TMMC

sub64330-02190

main64330-02190-B0iZZE110..TAIW,USA;ZZE110..LE1..CND199908-200005

MEDIUM CHARCOAL,TRIM1#,PLANT NUMMI

sub64330-02190

main64330-02190-B0iZZE110..TAIW,USA;ZZE110..LE1..CND199908-200005

W(SPEAKER),MEDIUM CHARCOAL,TRIM1#,PLANT NUMMI

sub64330-02190

main64330-02190-B0iZZE110..CE2,LE2200005

W(SPEAKER),MEDIUM CHARCOAL,TRIM1#

sub64330-02190

main64330-02190-C0iZZE110..S200005

W(SPEAKER),BLACK,TRIM2#

sub64330-02190

main64330-02190-E1iZZE110..(CE1,VE)..USA;ZZE110..LE1..(CND,USA)199908-200005

W(SPEAKER),MEDIUM NEUTRAL BONE,TRIM4#,PLANT NUMMI

sub64330-02190

main64330-02190-E1iZZE110..(CE1,VE)..CND199908-200005

MEDIUM NEUTRAL BONE,TRIM4#,PLANT NUMMI

sub64330-02190

main64330-02190-E1iZZE110..(CE2,LE2)..(CND,USA)200005

W(SPEAKER),MEDIUM NEUTRAL BONE,TRIM4#

sub64330-02190

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90904-67023-B2iZZE110..CE1,CE2,LE1,LE2,VE199708

MD.CHARCOAL,TRIM1#

sub90904-67023

main90904-67023-C0iZZE110..S200005

BLACK,TRIM2#

sub90904-67023

main90904-67023-E2iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

MD.NEUTRAL BONE,TRIM4#

sub90904-67023

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-12100-B1iZZE110..CE1,CE2,LE1,LE2,VE199808

MD.CHARCOAL,TRIM1#,CENTER

main64353-12100-C0iZZE110..S200005

BLACK,TRIM2#,CENTER

main64353-12100-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199808

NEUTRAL,TRIM4#,CENTER

main64353-12110-B1iZZE110..CE1,CE2,LE1,LE2,VE199808

MD.CHARCOAL,TRIM1#,RH

sub64353-12110

main64353-12110-C0iZZE110..S200005

BLACK,TRIM2#,RH

sub64353-12110

main64353-12110-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199808

NEUTRAL,TRIM4#,RH

sub64353-12110

main64354-12080-B1iZZE110..CE1,CE2,LE1,LE2,VE199808

MD.CHARCOAL,TRIM1#,LH

main64354-12080-C0iZZE110..S200005

BLACK,TRIM2#,LH

main64354-12080-E0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199808

NEUTRAL,TRIM4#,LH

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-05096-22iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#,4#

sub90467-05096

main90467-05096-22iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

sub90467-05096

main90467-05096-22iZZE110..S200005

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM2#

sub90467-05096

main90467-06049-22iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#,4#

sub90467-06049

main90467-06049-22iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#

sub90467-06049

main90467-06049-22iZZE110..S200005

TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#

sub90467-06049

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-02020-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#

main64717-02020-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#,4#

main64717-02020-C0iZZE110..S200005

BLACK,TRIM2#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-02050-C0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

BLACK,TRIM1#,4#

main64721-02050-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#

main64721-02050-C0iZZE110..S200005

BLACK,TRIM2#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-05053-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#,4#

sub90467-05053

main90467-05053-C0iZZE110..(CE1,CE2,LE1,LE2,VE)..(CND,USA)199708

BLACK,TRIM1#

sub90467-05053

main90467-05053-C0iZZE110..S200005

BLACK,TRIM2#

sub90467-05053

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-02040-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#

main64722-02040-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#,4#

main64722-02040-C0iZZE110..S200005

BLACK,TRIM2#

64753BPLATE, REAR FLOOR FINISH SIDE, RH

main64753-02010-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#

main64753-02010-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#,4#

main64753-02010-C0iZZE110..S200005

BLACK,TRIM2#

64754BPLATE, REAR FLOOR FINISH SIDE, LH

main64754-02010-C0iZZE110..S200005

BLACK,TRIM2#

main64754-02010-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#

main64754-02010-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#,4#

64771COVER, SPARE WHEEL

main64771-02020-C0iZZE110..S200005

W(FIXED TYPE REAR SEAT),BLACK,TRIM2#

main64771-02020-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

W(FIXED TYPE REAR SEAT),BLACK,TRIM1#

main64771-02020-C0iZZE110..(CE2,VE)..(CND,USA)199708

W(FIXED TYPE REAR SEAT),BLACK,TRIM1#,4#

main64771-02040-C0iZZE110..S..CND200005

BLACK,TRIM2#

main64771-02040-C0iZZE110..CE2..CND;ZZE110..(CE1,LE1,LE2)..(CND,USA)199708

BLACK,TRIM1#,4#

64777GCUSHION, SPARE WHEEL

main64777-02010-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#

main64777-02010-C0iZZE110..(CE1,CE2,LE1,LE2)..TAIW199708

BLACK,TRIM1#,4#

main64777-02010-C0iZZE110..S200005

BLACK,TRIM2#

9008018003

main90080-18003

9018304046

main90183-04046

23 parts on this diagram · 1 diagram in section
