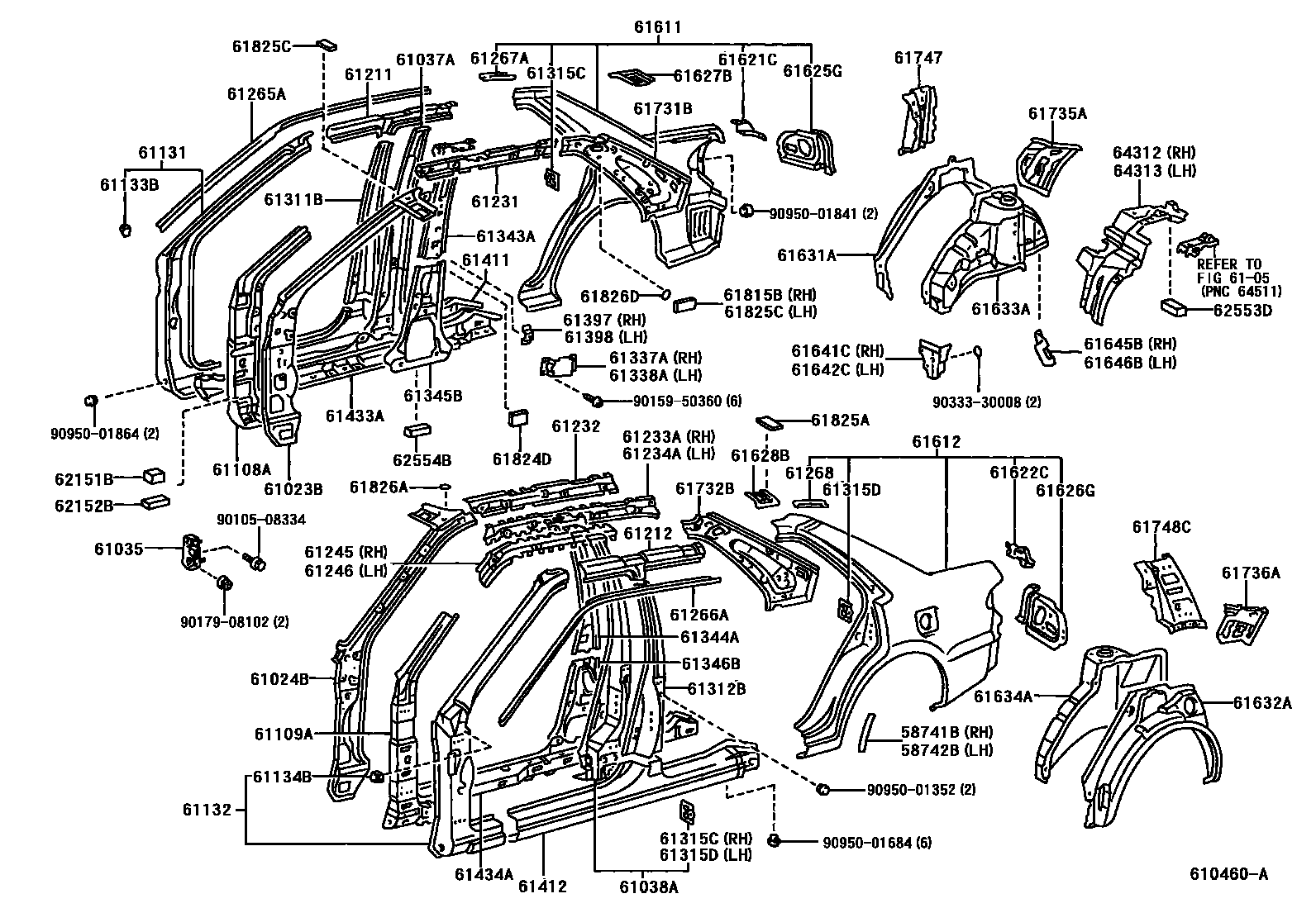

SIDE MEMBER

58741BPROTECTOR, QUARTER PANEL, RH

main58741-02010iZZE110..CND,USA199708

58742BPROTECTOR, QUARTER PANEL, LH

main58742-02010iZZE110..CND,USA199708

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-02050iZZE110199708

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-02050iZZE110199708

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12090iZZE110199708

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-12902iZZE110199708

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-12902iZZE110199708

6105

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-02020iZZE110199708

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-02020iZZE110199708

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-02030iZZE110..CE1,CE2,LE1,LE2,VE199708-200006

main61131-02040iZZE110..CE1,LE1,S,VE199708

W(SIDE MUDGUARD)

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-02040iZZE110..S..CND;ZZE110..CE2,LE2199708-200006

main61132-02050iZZE110..LE1..TAIW199708-200005

main61132-02060iZZE110..(CE1,S)..TAIW;ZZE110..(CE1,LE1,S,VE)..(CND,USA)199708

W(SIDE MUDGUARD)

main61132-02070iZZE110..LE1..TAIW199708-200005

W(SIDE MUDGUARD)

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-12190iZZE110199708

61134BBRACKET, FRONT BODY PILLAR OUTER, LH

main61133-12190iZZE110199708

61211RAIL, ROOF SIDE, OUTER RH

main61211-02030iZZE110199708

61212RAIL, ROOF SIDE, OUTER LH

main61212-02030iZZE110199708

61231RAIL, ROOF SIDE, INNER RH

main61231-02020iZZE110199708-199811

sub61231-02021

main61231-02021iZZE110199811

61232RAIL, ROOF SIDE, INNER LH

main61232-02020iZZE110199708-199811

sub61232-02021

main61232-02021iZZE110199811

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-02010iZZE110199708-199811

sub61233-02011

main61233-02011iZZE110199811

main61233-02020iZZE110..(CE1,LE1)..(CND,USA)199708-199811

W(MOON ROOF)

sub61233-02021

main61233-02021iZZE110..(CE1,LE1,LE2,S)..(CND,USA)199811

W(MOON ROOF)

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-02010iZZE110199708-199811

sub61234-02011

main61234-02011iZZE110199811

main61234-02020iZZE110..(CE1,LE1)..(CND,USA)199708-199811

W(MOON ROOF)

sub61234-02021

main61234-02021iZZE110..(CE1,LE1,LE2,S)..(CND,USA)199811

W(MOON ROOF)

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-02010iZZE110199708

main61245-02020iZZE110..(CE1,LE1,LE2,S)..(CND,USA)199708

W(MOON ROOF)

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-02010iZZE110199708

main61246-02020iZZE110..(CE1,LE1,LE2,S)..(CND,USA)199708

W(MOON ROOF)

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12230iZZE110199708

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12230iZZE110199708

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-12230iZZE110199708

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-12230iZZE110199708

61311BPILLAR, CENTER BODY, OUTER RH

main61311-02020iZZE110199708

61312BPILLAR, CENTER BODY, OUTER LH

main61312-02020iZZE110199708

61315CRETAINER, DOOR LOCK STRIKER, RH

main61315-22020iZZE110199708

61315DRETAINER, DOOR LOCK STRIKER, LH

main61315-22020iZZE110199708

61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH

main61337-12160iZZE110199708

61338AREINFORCEMENT, CENTER BODY PILLAR, INNER LH

main61338-12100iZZE110199708

61343APILLAR, CENTER BODY, INNER RH

main61343-02010iZZE110199708

main61343-02020iZZE110..(CE1,LE1,LE2,S)..(CND,USA)199708

W(MOON ROOF)

61344APILLAR, CENTER BODY, INNER LH

main61344-02010iZZE110199708

main61344-02020iZZE110..(CE1,LE1,LE2,S)..(CND,USA)199708

W(MOON ROOF)

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-02010iZZE110199708

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-02010iZZE110199708

61397PATCH, CENTER BODY PILLAR, INNER RH

main61397-12060iZZE110199708

61398PATCH, CENTER BODY PILLAR, INNER LH

main61397-12060iZZE110199708

61411PANEL, ROCKER, OUTER RH

main61411-02040iZZE110..CE1,CE2,LE1,LE2,VE199708-200006

main61411-02050iZZE110..CE1,LE1,S,VE199708

W(SIDE MUDGUARD)

61412PANEL, ROCKER, OUTER LH

main61412-02040iZZE110..CE1,CE2,LE1,LE2,VE199708-200006

main61412-02050iZZE110..CE1,LE1,S,VE199708

W(SIDE MUDGUARD)

61433AREINFORCEMENT, ROCKER PANEL, OUTER RH

main61433-02900iZZE110199708

61434AREINFORCEMENT, ROCKER PANEL, OUTER LH

main61434-02900iZZE110199708

61611PANEL, QUARTER, RH

main61601-02906iZZE110..S..CND;ZZE110..CE2,LE2199708-200006

main61601-02907iZZE110..LE1..TAIW199708-200005

W(ANTENNA)

main61601-02908iZZE110..(CE1,S)..TAIW;ZZE110..(CE1,LE1,S,VE)..(CND,USA)199708

W(SIDE MUDGUARD)

main61601-02909iZZE110..LE1..TAIW199708-200005

W(SIDE MUDGUARD)

61612PANEL, QUARTER, LH

main61602-02906iZZE110..CE1,CE2,LE1,LE2,VE199708-200006

main61602-02907iZZE110..CE1,LE1,S,VE199708

W(SIDE MUDGUARD)

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-02020iZZE110199708

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-02020iZZE110199708

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-02010iZZE110199708

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-02010iZZE110199708

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-02010iZZE110199708

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-02010iZZE110199708

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-02030iZZE110199708

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-02030iZZE110199708

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-02907iZZE110199708

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-02907iZZE110199708

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-02010iZZE110199708

(L)

main61641-12070iZZE110199708

(J)

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-02010iZZE110199708

(L)

main61642-12070iZZE110199708

(J)

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-02010iZZE110199708

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-02010iZZE110199708

61731BPANEL, ROOF SIDE, INNER RH

main61731-02030iZZE110199708

61732BPANEL, ROOF SIDE, INNER LH

main61732-02030iZZE110199708

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-02020iZZE110199708

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-02020iZZE110199708

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-02030iZZE110199708

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-02030iZZE110199708

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-02020iZZE110199708

61824DPLATE, NOISE CONTROL, NO.1

main61824-50020iZZE110199708

61825APLATE, NOISE CONTROL, NO.2

main61815-32020iZZE110199708

61825CPAD, NOISE SHUTTER, NO.2

main61815-32020iZZE110199708

61826APLATE, NOISE CONTROL, NO.3

main61824-12040iZZE110199708

61826DPLATE, NOISE CONTROL, NO.3

main61824-12040iZZE110199708

62151BPAD, COWL SIDE SILENCER

main62151-12130iZZE110199708

62152BPAD, COWL SIDE SILENCER, NO.2

main62152-12050iZZE110199708

62553DPAD, PILLAR, NO.3

main62555-12050iZZE110199708

62554BPAD, PILLAR, NO.4

main62554-12150iZZE110199708

64312BRACKET, PACKAGE TRAY, RH

main64301-02030iZZE110199708

sub64301-02040

main64301-02040iZZE110..(CE1,LE1,LE2)..(CND,USA)199708

W(CHILD SEAT)

64313BRACKET, PACKAGE TRAY, LH

main64302-02030iZZE110199708

9010508334

main90105-08334

9015950360

main90159-50360

9017908102

main90179-08102

9033330008

main90333-30008

9095001352

main90950-01352

9095001684

main90950-01684

9095001841

main90950-01841

9095001864

main90950-01864

84 parts on this diagram · 1 diagram in section
