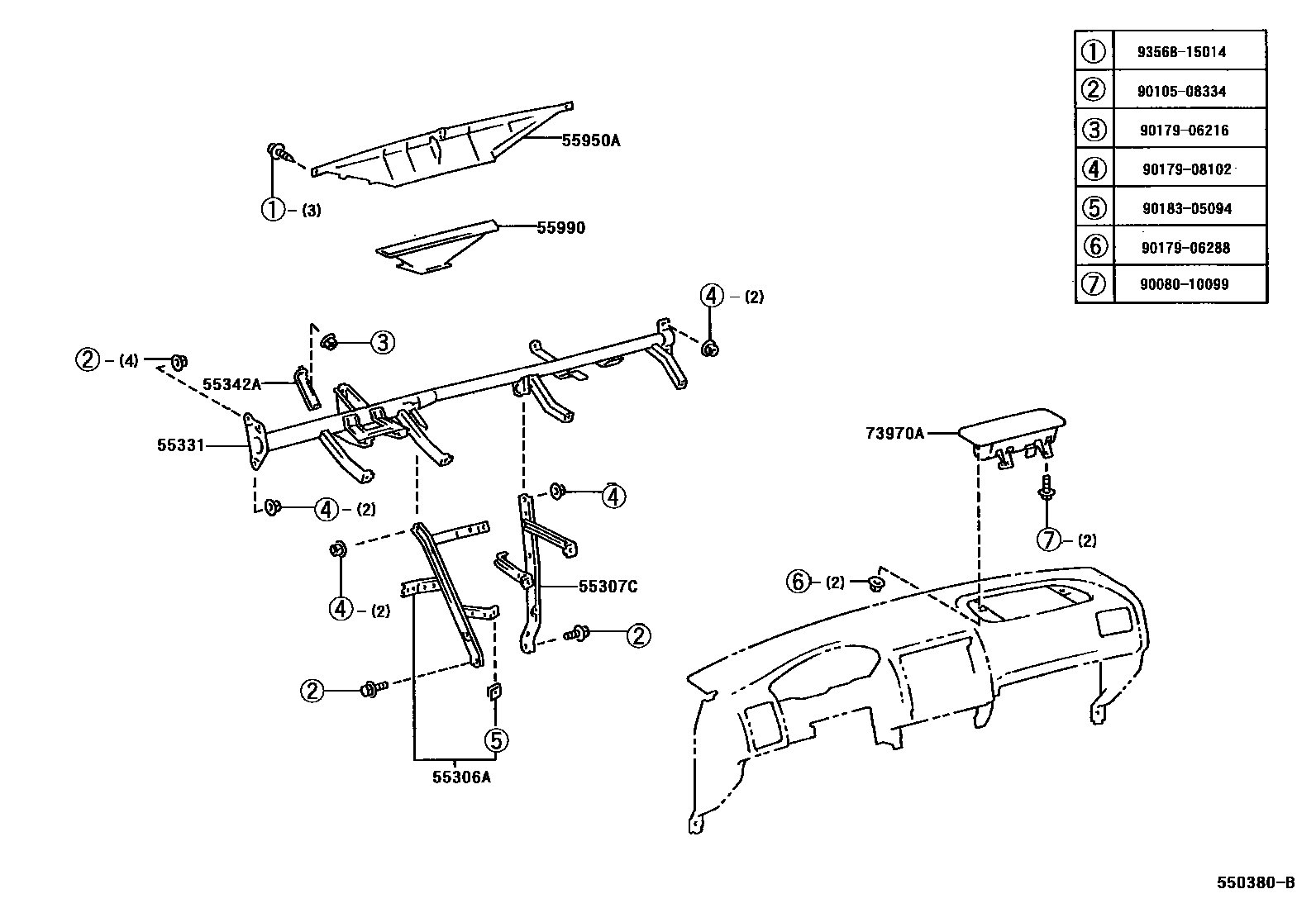

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02020iZZE110199708

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02030iZZE110199708

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-02030iZZE110199708

55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2

main55342-02020iZZE110199708

55950ANOZZLE ASSY, DEFROSTER

main55950-01030iZZE110199708

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-02020iZZE110199708

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-02030-B0iZZE110199708-199908

DK.CHARCOAL,TRIM1#

sub73970-02031

main73970-02030-E0iZZE110199708-199908

DK.NEUTRAL BONE,TRIM4#

sub73970-02031

main73970-02031-B0iZZE110..S..TAIW;ZZE110..(CE1,CE2,LE2,VE)..CND;ZZE110..(CE1,CE2,LE1,LE2,VE)..(TAIW,USA)199908

DK.CHARCOAL,TRIM1#

main73970-02031-C0iZZE110..S200005

BLACK,TRIM2#

main73970-02031-E0iZZE110..S..TAIW;ZZE110..CE1,CE2,LE1,LE2,VE199908

DK.NEUTRAL BONE,TRIM4#

9008010099

main90080-10099

9010508334

main90105-08334

9017906216

main90179-06216

9017906288

main90179-06288

9017908102

main90179-08102

9018305094

main90183-05094

9356815014

main93568-15014

14 parts on this diagram · 2 diagrams in section
