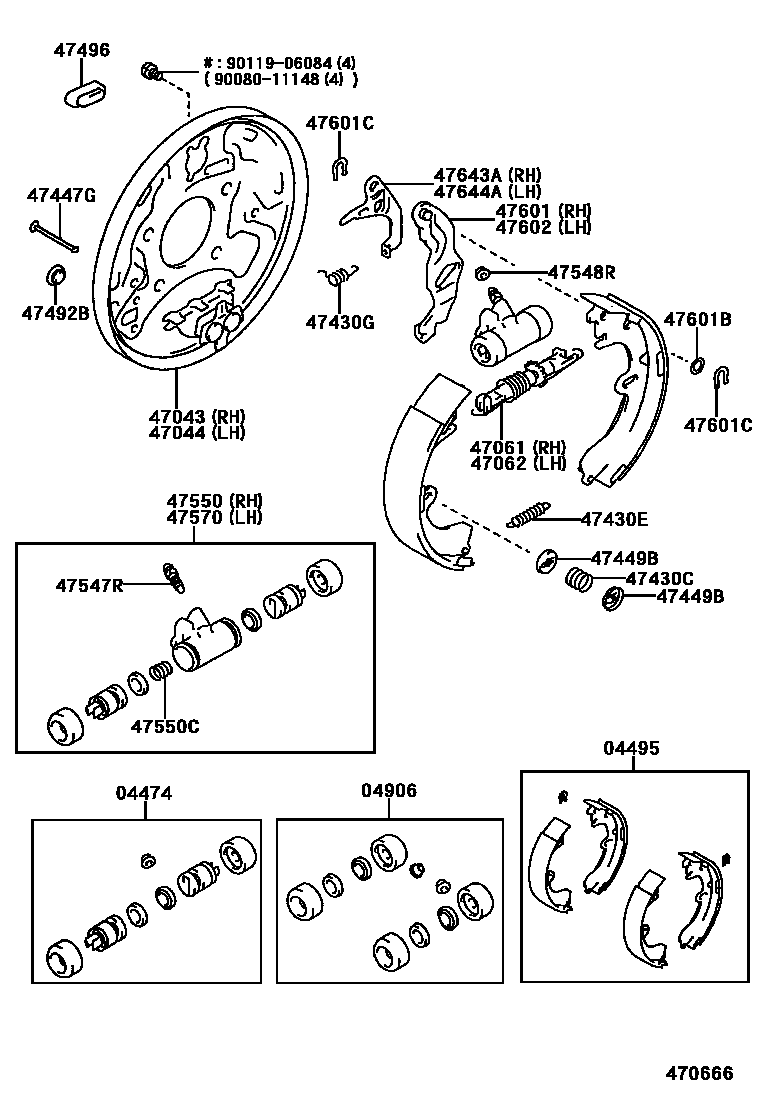

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-10032iZZE110199708-200103

W(ABS)

sub04474-63020

main04474-16020iZZE110..CND,USA199708-199904

main04474-63020iZZE110200103

W(ABS)

04495SHOE KIT, REAR BRAKE

main04495-02010iZZE110199708-199901

sub04495-02030

main04495-02030iZZE110199901

sub04495-02090

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iZZE110199708-199904

W(ABS)

main04906-16020iZZE110..CND,USA199708-199904

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-02010iZZE110199708

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-02010iZZE110199708

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-02010iZZE110199805

main47061-20020iZZE110199708-199805

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-02010iZZE110199805

main47062-20020iZZE110199708-199805

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90080-50066iZZE110199708

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90080-50130iZZE110199708

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90080-50129iZZE110199708

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-02010iZZE110199708

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-02010iZZE110199708

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-02010iZZE110199708

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-02010iZZE110199708

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iZZE110199708-199904

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-01030iZZE110199708

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-02030iZZE110..CE1,CE2,S,VE;ZZE110..(LE1,LE2)..(CND,USA)199708-199904

main47550-02040iZZE110..LE1,LE2,VE;ZZE110..(CE1,CE2,S)..(CND,USA)199708-199904

W(ABS)

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014iZZE110200103

main90501-07006iZZE110199708-200103

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-02010iZZE110..CE1,CE2,S,VE;ZZE110..(LE1,LE2)..(CND,USA)199708-199904

main47570-02040iZZE110199708-199904

W(ABS)

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-02020iZZE110199708

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90080-56047iZZE110199708

T=0.3

main90080-56048iZZE110199708

T=0.2

main90080-56049iZZE110199708

T=0.4

47601CWASHER, C(FOR REAR BRAKE)

main90080-20012iZZE110199708

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-02020iZZE110199708

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-02010iZZE110199708

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-02010iZZE110199708

9008011148

main90080-11148

9011906084

main90119-06084
