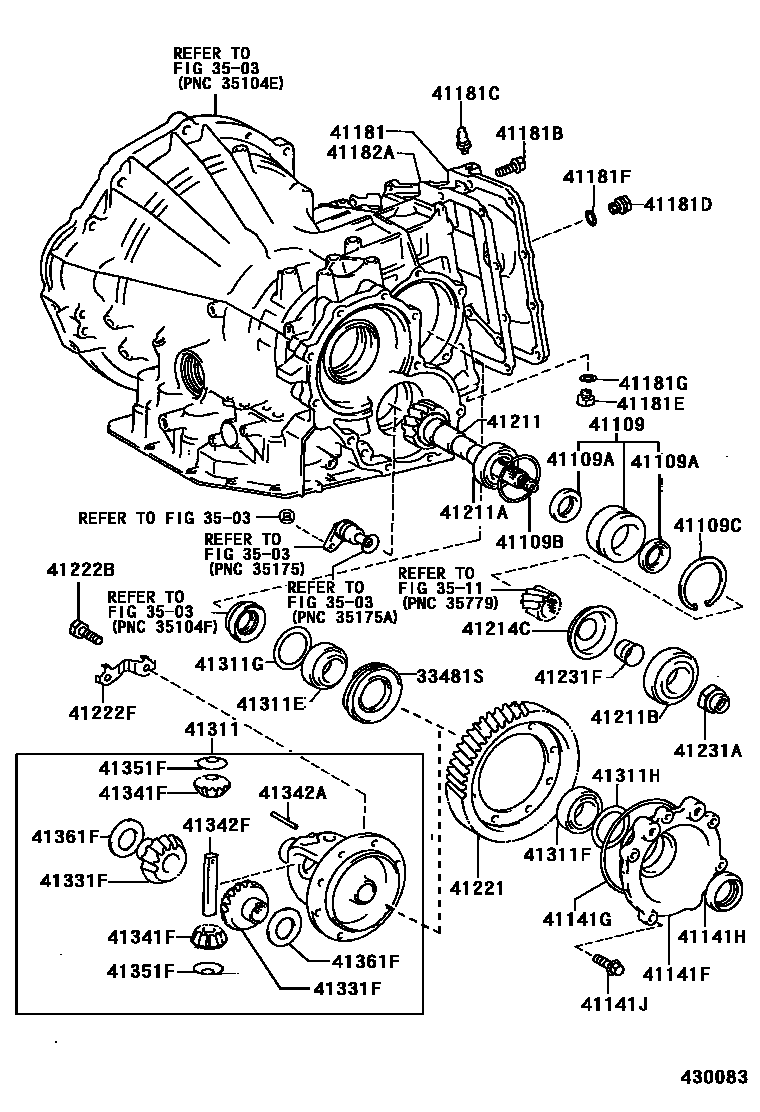

FRONT AXLE HOUSING & DIFFERENTIAL
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=35,MARK 35X29-31
33481SGEAR, SPEEDOMETER DRIVE (ATM)
N=35,MARK 35X29-31
N=25,NO MARK
3503
3511
41109CAGE SUB-ASSY, DIFFERENTIAL DRIVE PINION BEARING
41109ASEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
41109BRING, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
41109CRING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE)
41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING
41141GRING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
sub90301-99142
41141HSEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
41181COVER, FRONT DIFFERENTIAL CARRIER
41181BBOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING)
41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41182AGASKET, DIFFERENTIAL CARRIER COVER
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231ANUT, DRIVE PINION LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41311CASE, FRONT DIFFERENTIAL
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=2.50
T=2.55
T=2.60
T=2.65
T=2.00,MARK V
T=2.1
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10
T=2.00,MARK V
T=2.35,MARK A
T=2.40,MARK B
T=2.45,MARK C
T=2.50,MARK D
T=2.55,MARK E
T=2.60,MARK F
T=2.65,MARK G
T=2.70,MARK H
T=2.75,MARK J
T=2.80,MARK K
T=2.85,MARK L
T=2.90,MARK M
T=2.10,MARK Q
T=2.15,MARK R
T=2.20,MARK S
T=2.25,MARK T
T=2.30,MARK U
T=2.05,MARK W
T=2.10,MARK AA
T=2.15,MARK BB
T=2.20,MARK CC
T=2.25,MARK DD
T=2.30,MARK EE
T=2.35,MARK FF
T=2.40,MARK GG
T=2.45,MARK HH
T=2.50,MARK JJ
T=2.55,MARK KK
T=2.60,MARK LL
T=2.65,MARK MM
T=2.70,MARK NN
T=2.75,MARK PP
T=2.80,MARK QQ
T=2.85,MARK RR
T=2.90,MARK SS
T=2.95,MARK TT
T=3.00,MARK UU
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
40 parts on this diagram · 3 diagrams in section
