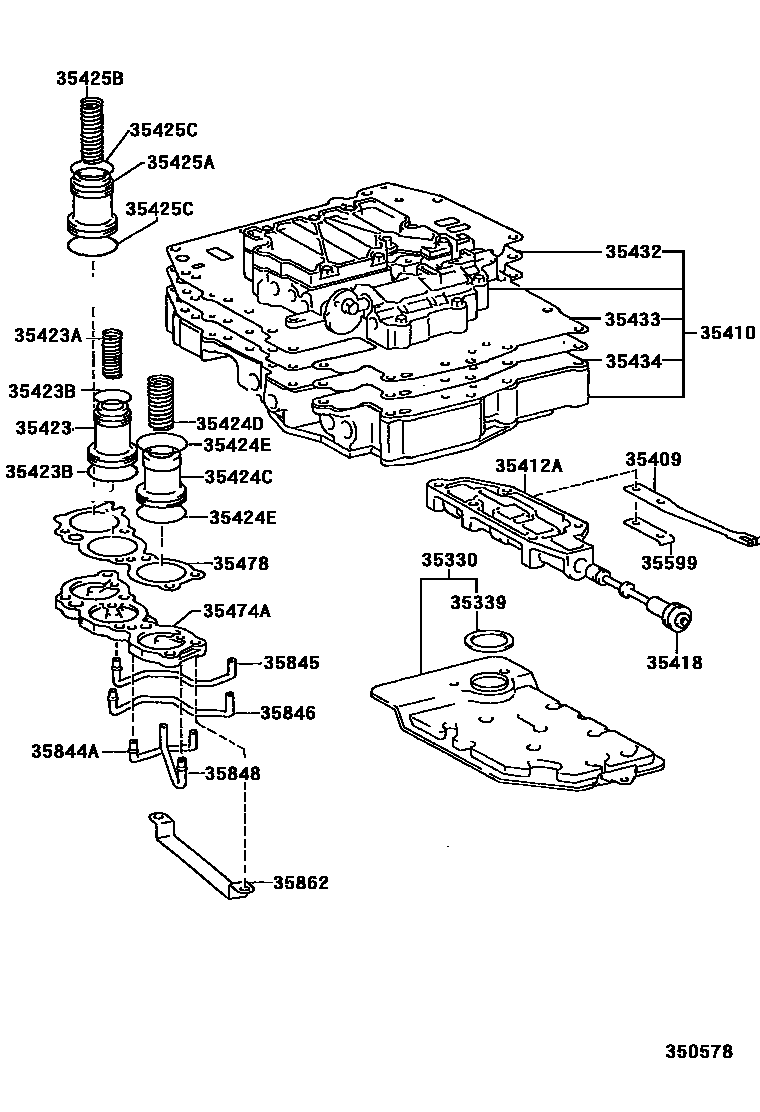

VALVE BODY & OIL STRAINER (ATM)

0001 1A131L 0002 1A131L 0003 1A131L 0004 1A131L 0005 1A245E 0006 1A245E 0007 1A245E 0008 1A245E 0009 1A245E

35330STRAINER ASSY, VALVE BODY OIL

main35330-12030iZZE110..4FC199708

main35330-20012iZZE110..3FC199708

35339GASKET, OIL STRAINER

main35339-12020iZZE110..4FC199708

main35339-32010iZZE110..3FC199708

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-12030iZZE110..4FC199708

sub35409-12060

main35409-32030iZZE110..3FC199708

35410BODY ASSY, TRANSMISSION VALVE

main35410-12610iZZE110..4FC199708-199810

sub35410-12611

main35410-12611iZZE110..4FC199810

main35410-12620iZZE110..3FC199708

35412ABODY, MANUAL VALVE

main35412-12010iZZE110..3FC200002

main35412-32010iZZE110..3FC199708-200002

35418VALVE, MANUAL

main35418-12030iZZE110..4FC199708

main35418-32010iZZE110..3FC199708

35423PISTON, B-2 ACCUMULATOR

main35403-20010iZZE110..3FC199708

main35423-12010iZZE110..4FC199708

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-20128iZZE110..3FC199708

main90501-23126iZZE110..4FC199708

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-21012iZZE110..4FC200008

UPPER

main90301-22185iZZE110..3FC199708-200008

UPPER

main90301-29011iZZE110..3FC199710-200008

LOWER

main90301-29187iZZE110..4FC199708-200008

LOWER

35424CPISTON, C-1 ACCUMULATOR

main35424-12030iZZE110..4FC199708

main35424-20021iZZE110..3FC199708

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-20136iZZE110..4FC199708

OUTER

main90501-20140iZZE110..3FC199708

main90501-24027iZZE110..4FC199708

INNER

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-23010iZZE110..4FC200008

UPPER

main90301-23194iZZE110..4FC199708-200008

UPPER

main90301-24009iZZE110..3FC199708

UPPER

main90301-29011iZZE110..3FC199708-200008

LOWER

main90301-29187iZZE110..4FC199708-200008

LOWER

35425APISTON, C-2 ACCUMULATOR

main35405-12010iZZE110..3FC199708

main35425-12040iZZE110..4FC199708

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-23120iZZE110..3FC199708

main90501-23124iZZE110..4FC199708-200005

main90501-24028iZZE110..4FC200005

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-26012iZZE110..4FC200008

UPPER

main90301-26190iZZE110..ATM199708-200008

UPPER

main90301-29011iZZE110..ATM199710-200008

LOWER

main90301-29187iZZE110..ATM199708-200008

LOWER

35432PLATE, VALVE BODY, NO.1

main35432-12200iZZE110..4FC199708

main35432-12250iZZE110..3FC199708

35433GASKET, VALVE BODY, NO.1

main35433-12050iZZE110..4FC199708

main35433-20020iZZE110..3FC199708

35434GASKET, VALVE BODY, NO.2

main35434-12030iZZE110..4FC199708

main35434-32020iZZE110..3FC199708

35474ACOVER, ACCUMULATOR

main35474-20010iZZE110..3FC199708

35478GASKET, ACCUMULATOR COVER

main35478-32010iZZE110..3FC199708

35599COVER, MANUAL DETENT SPRING

main35599-12020iZZE110..4FC199708

sub35599-12040

sub35409-12060

main35599-32010iZZE110..3FC199708

35844ATUBE, ACCUMULATOR BACK PRESSURE, NO.1

main35844-32021iZZE110..3FC199708

35845TUBE, RR CLUTCH ACCUMULATOR

main35845-32012iZZE110..3FC199708

35846TUBE, BRAKE ACCUMULATOR

main35846-20020iZZE110..3FC199708

35848TUBE, FORWARD CLUTCH ACCUMULATOR

main35848-32011iZZE110..3FC199708

35862BRACKET, ACCUMULATOR APPLY TUBE

main35862-32011iZZE110..3FC199708

26 parts on this diagram · 9 diagrams in section
