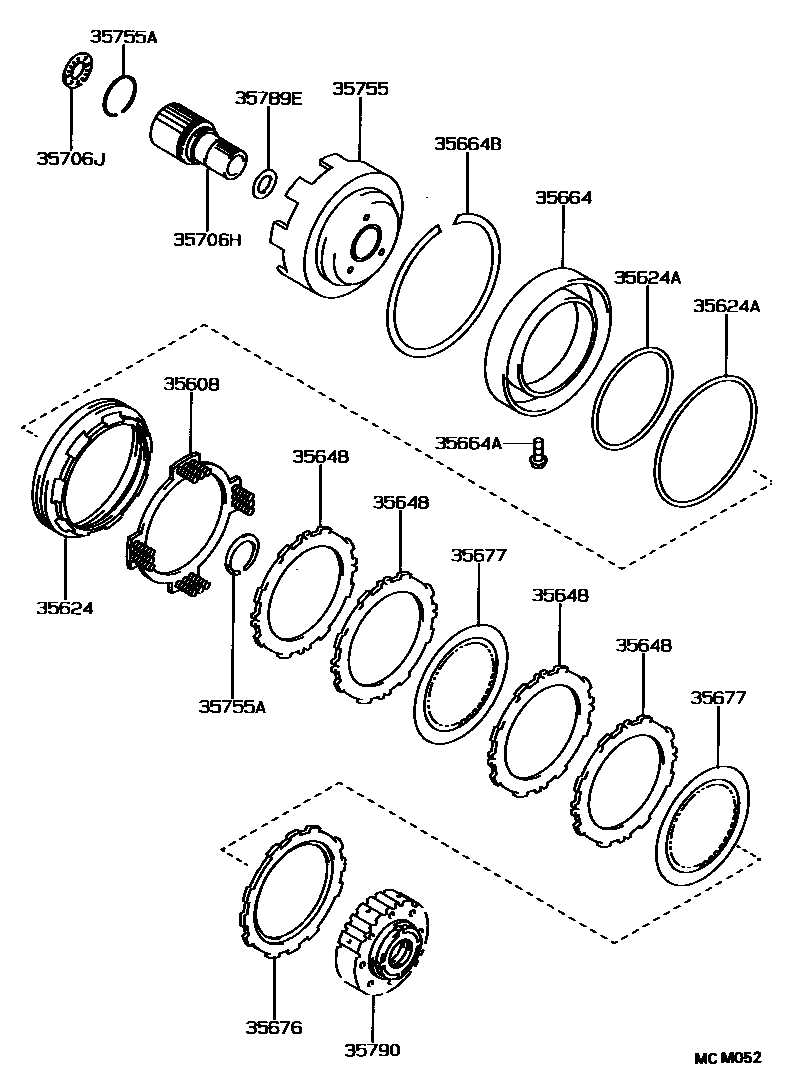

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A131L 0002 1A245E

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iZZE110..ATM199708

35624PISTON, 2ND BRAKE

main35624-32010iZZE110..ATM199708

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iZZE110..3FC200008

INNER

main90301-99023iZZE110..ATM199708-200008

OUTER

main90301-99100iZZE110..4FC200008

INNER

main90301-99132iZZE110..4FC200008

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-12010×3iZZE110..4FC199708

T=1.8

main35648-32010×3iZZE110..3FC199708

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iZZE110..ATM199708

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iZZE110..3FC199708

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90520-99013iZZE110..4FC199708

main90521-99013iZZE110..3FC199708

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12030iZZE110..3FC199810-199908

T=3.5

main35676-32010iZZE110..4FC199810-199908

T=3.5

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-12070×3iZZE110..4FC199708

main35677-30040×3iZZE110..3FC199708-200012

sub35677-43010

main35677-32031×3iZZE110..3FC200012

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iZZE110..ATM199708

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-28011iZZE110..4FC199708

main90374-30006iZZE110..3FC199708

35755DRUM, SUN GEAR INPUT

main35755-32020iZZE110..ATM199708

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iZZE110..ATM199708

T=1.2,ID=44.0

main90520-46010iZZE110..4FC199708

T=2.3,ID=46.0

main90520-47003iZZE110..3FC199708

T=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iZZE110..ATM199708

35790CLUTCH ASSY, 1 WAY

main35790-32050iZZE110..ATM199708-200110

main35790-44010iZZE110..ATM200110

15 parts on this diagram · 2 diagrams in section
