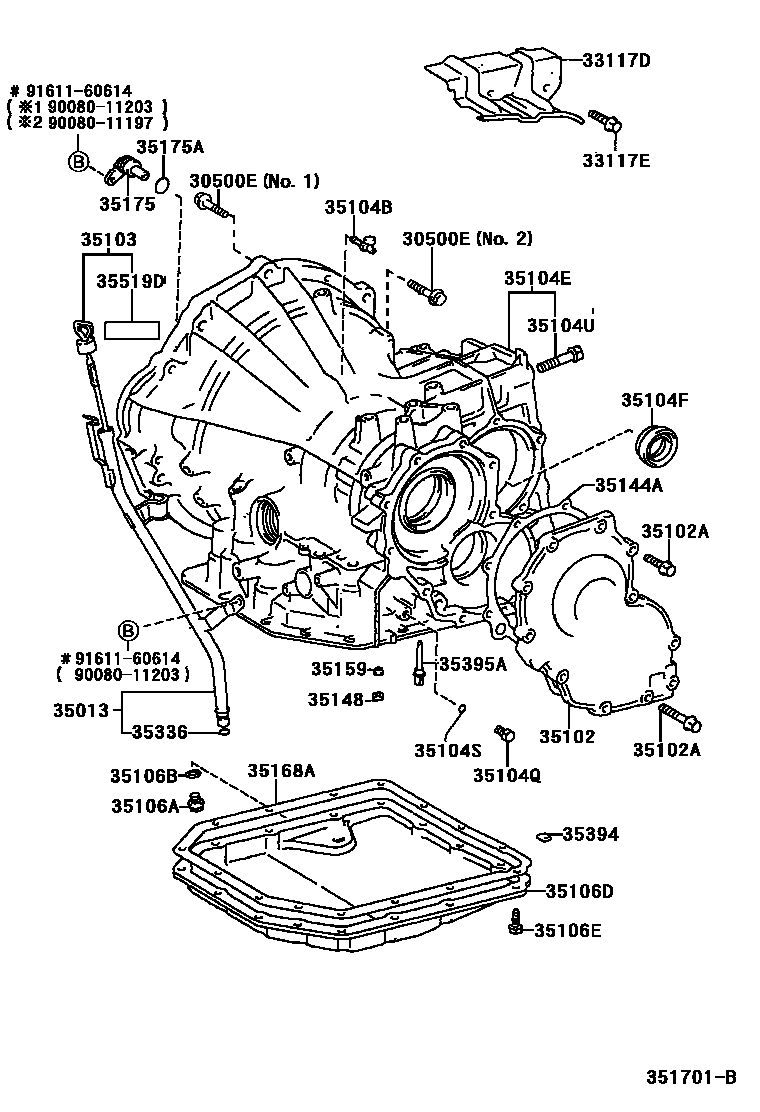

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A131L 0002 1A245E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-11423×2iZZE110..ATM199912

*12-1.25PX55-30,(L),NO.1

main91619-61255×2iZZE110..ATM199708-199912

*12-1.25PX55-30,NO.1

main91642-81055×2iZZE110..ATM199708

*10-1.25PX55-30,NO.2

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-02030iZZE110..4FC199708

main33117-02050iZZE110..3FC199708

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90080-10083×2iZZE110..ATM200009

main90105-08040×2iZZE110..ATM199803-200009

(J)

sub91641-H0820

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-02020iZZE110..4FC199708

main35013-02030iZZE110..3FC199708

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iZZE110..3FC199708

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198×2iZZE110..4FC199708

*6-1.00PX32-32

main90105-08050×9iZZE110..3FC199708

*8-1.25PX28-28

main90105-08056×2iZZE110..3FC199708

*8-1.25PX40-40

main91511-80625×11iZZE110..4FC199708

*6-1.0PX25-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-02040iZZE110..3FC199708

main35103-02050iZZE110..4FC199708

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iZZE110..3FC199708

main90930-03132iZZE110..4FC199708

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12230iZZE110..4FC199708

main35104-12260iZZE110..3FC199708

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34012iZZE110..3FC199708-199803

main90311-34013iZZE110..4FC199708-199908

main90311-34023iZZE110..3FC199803

main90311-34026iZZE110..4FC199908

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×2iZZE110..ATM199708

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×2iZZE110..ATM199708

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008×2iZZE110..3FC199708

*10-1.25PX53-26

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iZZE110..4FC199708

main90341-18016iZZE110..3FC199708

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iZZE110..4FC199708

main90430-18008iZZE110..3FC199708

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10022iZZE110..3FC199708

main35106-12090iZZE110..4FC199708

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×15iZZE110..3FC199708

35144AGASKET, TRANSAXLE REAR COVER

main35144-12020iZZE110..3FC199708-199808

main35144-12030iZZE110..3FC199808

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iZZE110..ATM199708

35159GASKET, BRAKE DRUM

main35159-20010iZZE110..4FC199708

main35159-32011iZZE110..3FC199708

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12030iZZE110..4FC199708

main35168-32010iZZE110..3FC199708

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iZZE110..3FC199708

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iZZE110..3FC199708

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iZZE110..ATM199708

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iZZE110..ATM199708

35395ASTRAINER, GOVERNOR OIL

main35395-32030iZZE110..3FC199708

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-32040iZZE110..3FC199708

9008011197

main90080-11197

9008011203

main90080-11203

9161160614

main91611-60614

30 parts on this diagram · 2 diagrams in section
