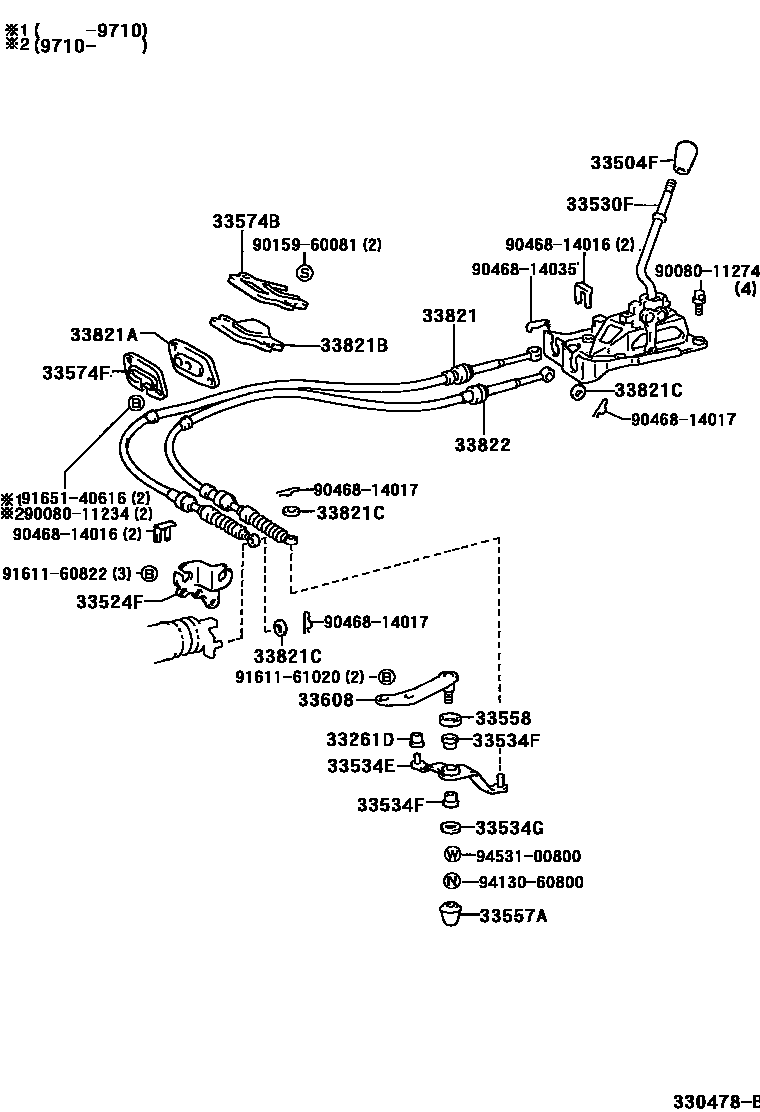

SHIFT LEVER & RETAINER
33261DBUSH (FOR SHIFT & SELECT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
MD.NEUTRAL BONE,TRIM4#
sub33542-02031
MD.CHARCOAL,TRIM1#
MD.NEUTRAL BONE,TRIM4#
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
sub33530-12681
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33574BRETAINER, SHIFT CABLE GROMMET, NO.2
33574FRETAINER, DUST SEAL (FOR FLOOR SHIFT)
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821AGROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33821BGROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
OD=28
OD=28,TRANSAXLE SIDE
SHIFT LEVER SIDE
33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
9008011234
main90080-11234
9008011274
main90080-11274
9015960081
main90159-60081
9046814016
main90468-14016
9046814017
main90468-14017
9046814035
main90468-14035
9161160822
main91611-60822
9161161020
main91611-61020
9165140616
main91651-40616
9413060800
main94130-60800
9453100800
main94531-00800
28 parts on this diagram · 3 diagrams in section
