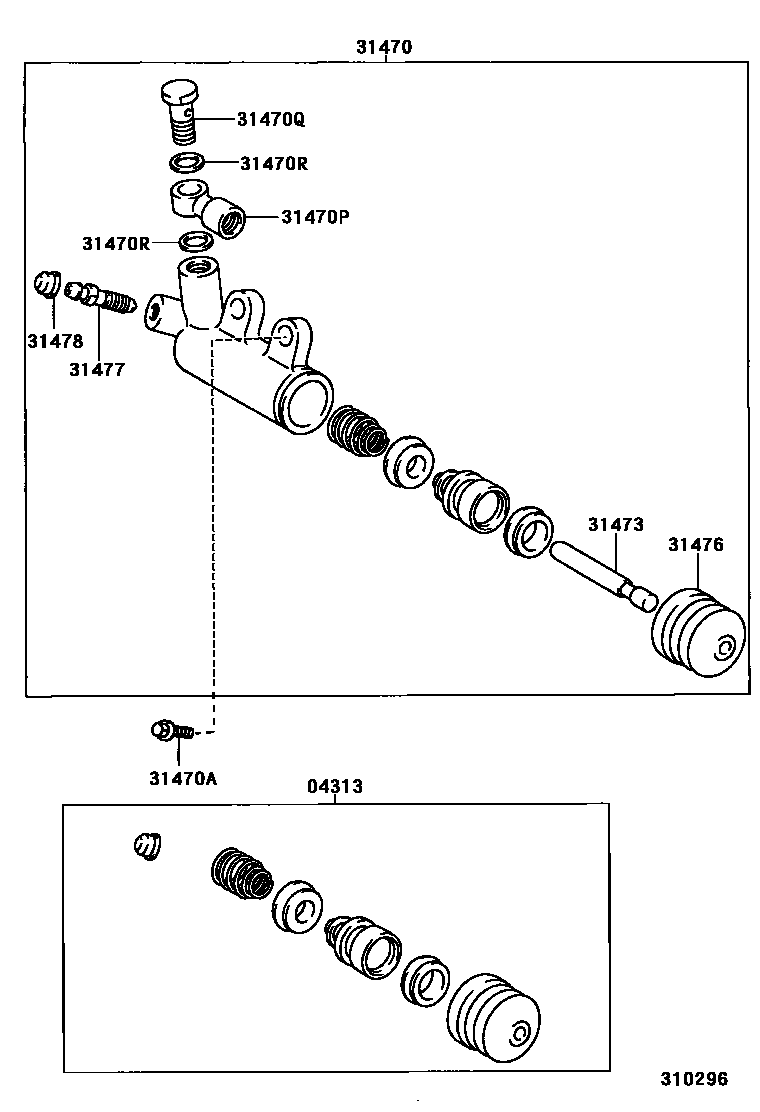

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17020iZZE110..5F¥990199708-200201

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12100iZZE110..5F¥8,600199708-200201

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iZZE110..5F¥170199708

*8-1.25PX22-17.1

31470PUNION(FOR CLUTCH RELEASE)

main90405-10045iZZE110..5F¥510199708-200201

31470QBOLT, UNION(FOR CLUTCH RELEASE)

main90401-10060iZZE110..5F¥260199708-200201

31470RGASKET(FOR CLUTCH RELEASE)

main90430-10074iZZE110..5F¥100199708-200201

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iZZE110..5F¥450199708-200201

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iZZE110..5F¥230199708-200201

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iZZE110..5F¥200199708-200201

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-01030iZZE110..5F¥160199708-200201

*86

main31478-30010iZZE110..5F¥160199708-200201

*86&87

10 parts on this diagram · 1 diagram in section
