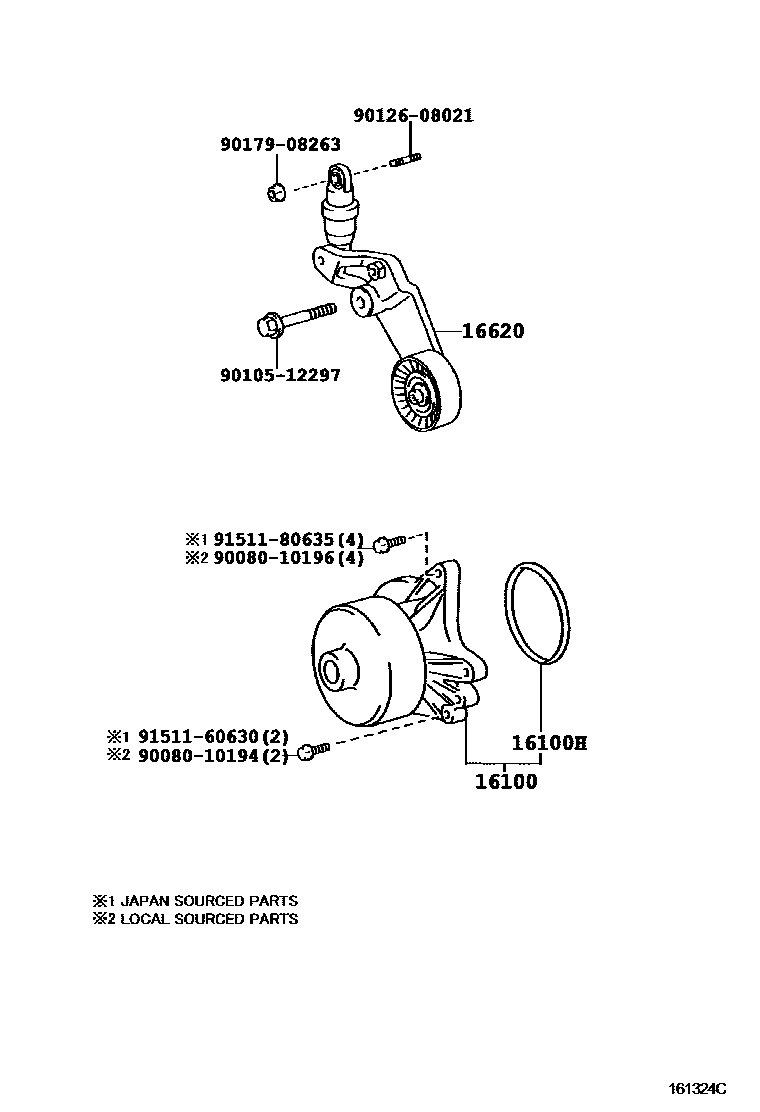

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-09080i1ZZFE..ZZE110199708-199808

(L)

sub16100-09170

sub91511-60622

main16100-09080i1ZZFE..ZZE110199808

sub16100-09170

sub91511-60622

main16100-29095i1ZZFE..ZZE110199708-199808

(J)

sub16100-29175

sub91511-60622

16100HRING, O(FOR WATER PUMP)

main90301-69006i1ZZFE..ZZE110199708

16620TENSIONER ASSY, V-RIBBED BELT

main16620-22010i1ZZFE..ZZE110199708-200106

sub16620-22011

main16620-22011i1ZZFE..ZZE110200106

sub16620-22012

9008010194

main90080-10194

9008010196

main90080-10196

9010512297

main90105-12297

9012608021

main90126-08021

9017908263

main90179-08263

9151160630

main91511-60630

9151180635

main91511-80635

10 parts on this diagram · 1 diagram in section
