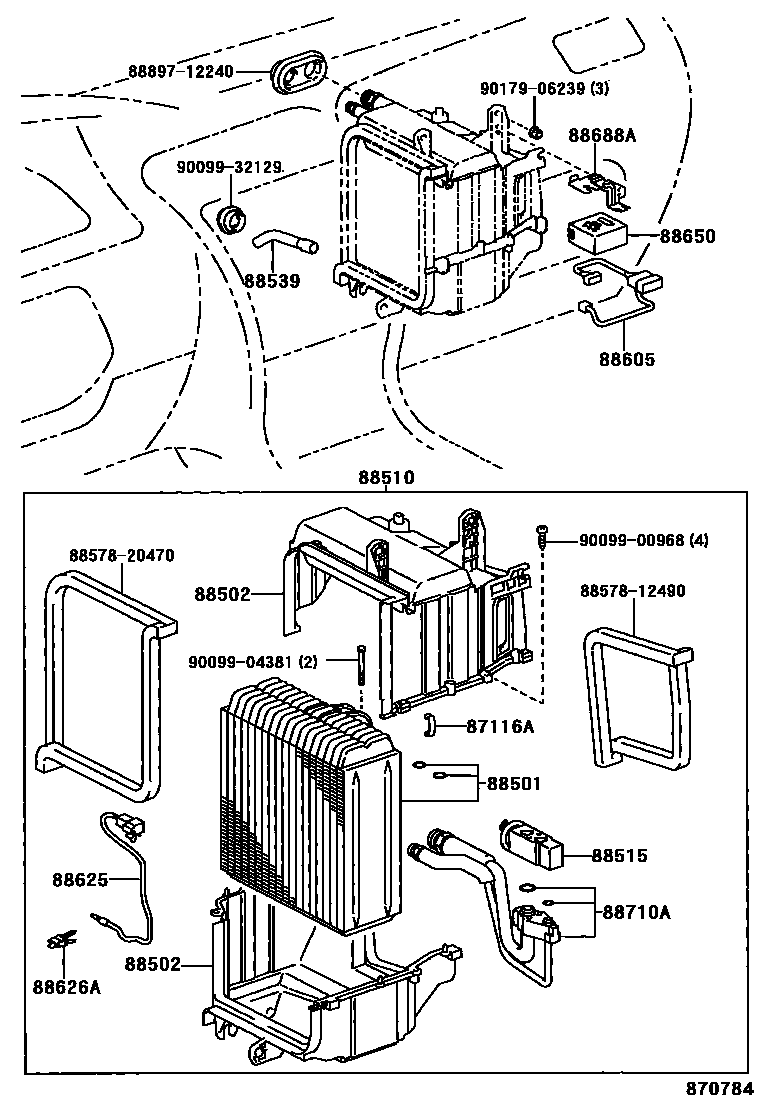

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1DEALER OPTION 0002 1MAKER OPTION 0003 1 0004 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199708

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02010iAE10#..NAP199209-199308

main88501-02020iAE10#..NAP199308-199504

sub88501-02021

main88501-02021iAE10#..NAP199504-199508

main88501-02021iAE102..NAP..E;AE101..NAP..N..USA199508-199708

MAKER OPTION

main88501-12411iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199708

DEALER OPTION

88502CASE SUB-ASSY, COOLING UNIT

main88502-02010iAE10#..NAP199209-199508

UPPER

sub88502-02011

main88502-02011iAE10#..NAP199508

UPPER

main88502-02020iAE10#..NAP199209-199508

LOWER

sub88502-02021

main88502-02021iAE10#..NAP199508

LOWER

88510UNIT ASSY, COOLER

main88510-02030iAE10#..NAP199209-199308

main88510-02040iAE10#..NAP199308-199508

sub88510-02041

main88510-02041iAE102..NAP..E;AE101..NAP..N..USA199508-199708

MAKER OPTION

sub88510-1A241

main88510-02060iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199708

DEALER OPTION

88515VALVE, COOLER EXPANSION

main88515-06020iAE102..NAP..E;AE101..NAP..N..USA199508-199708

MAKER OPTION

main88515-06020iAE10#..NAP199308-199508

main88515-06030iAE10#..NAP199211-199308

main88515-20100iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199708

DEALER OPTION

sub88515-22240

main88515-33010iAE10#..NAP199209-199211

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-02020iAE10#..NAP199209

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-02050iAE10#..NAP199209

88625THERMISTOR, COOLER, NO.1

main88625-02010iAE102..NAP..E;AE101..NAP..N..USA199508-199708

MAKER OPTION

main88625-02010iAE10#..NAP199209-199508

main88625-12280iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199708

DEALER OPTION

88626AHOLDER, THERMISTOR

main88626-28010iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199708

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-02150iAE10#..NAP199209

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-02140iAE10#..NAP..(D,N)199209-199708

88710ATUBE ASSY, AIR CONDITIONER

main88710-02030iAE10#..NAP199209-199308

main88710-02060iAE102..NAP..E;AE101..NAP..N..USA199508-199708

MAKER OPTION

main88710-02060iAE10#..NAP199308-199508

main88710-12340iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508-199708

DEALER OPTION

8857812490PAKING, COOLER AIR DUCT

main88578-12490

8857820470PAKING, COOLER AIR DUCT

main88578-20470

8889712240VALVE, COOLER MAGNET

main88897-12240

9009900968

main90099-00968

9009904381

main90099-04381

9009932129

main90099-32129

9017906239

main90179-06239

19 parts on this diagram · 4 diagrams in section
