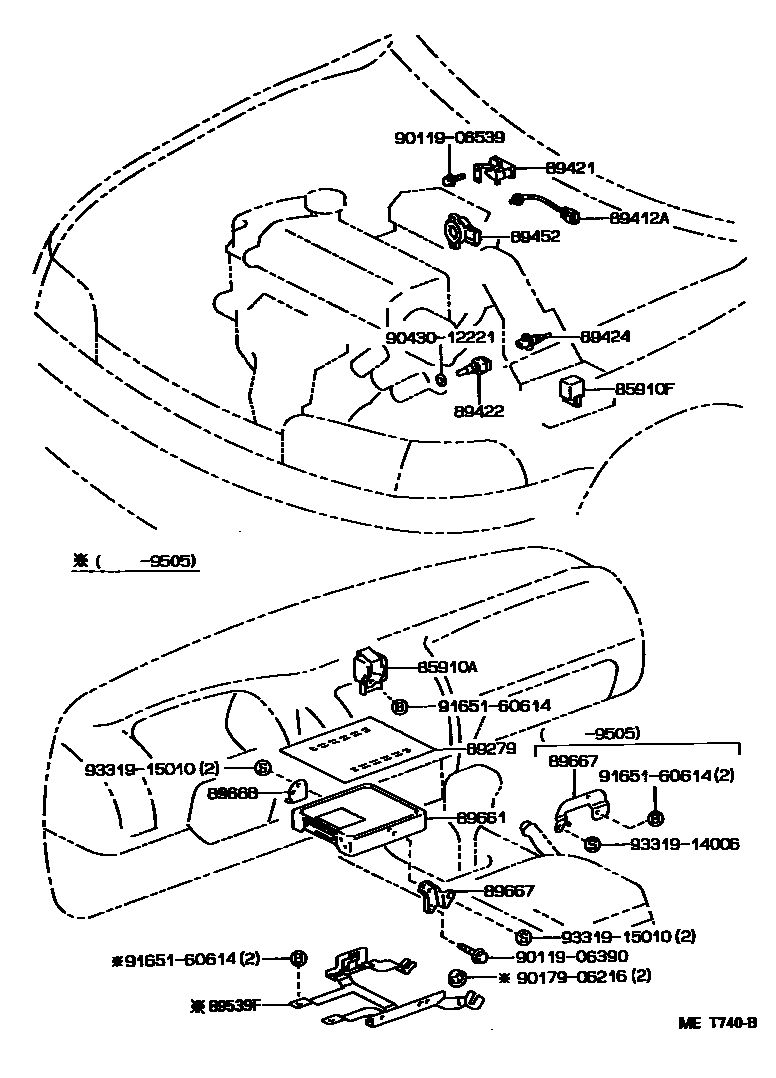

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12060iAE10#..NAP199209

85910FRELAY, COMPUTER (FOR EFI)

main90084-98009iAE10#..NAP199503

BOSCH

main90084-98009iAE10#..NAP199409-199503

main90987-02009iAE10#..NAP199209-199409

main90987-02009iAE10#..NAP199503

MARUKO

89279COVER, ENGINE CONTROL COMPUTER

main89279-02020iAE10#..NAP199209-199308

sub89279-02030

sub89279-02040

main89279-02030iAE102..NAP199308-199508

main89279-02040iAE10#..NAP199508

(L)

main89279-02040iAE101..NAP199308-199508

main89279-12110iAE102..NAP..4FC199508-199608

(J)

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-33040iAE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA199209-199508

CALIFORNIA SPEC

sub89412-33030

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-02010iAE10#..NAP199209-199703

DELCO

main89420-12090iAE101..NAP199209-199703

NIPPONDENSO

sub89420-02010

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iAE10#..NAP199209

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE10#..NAP199209

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iAE10#..NAP199209

89539FBRACKET, COMPUTER

main89539-12050iAE10#..NAP199209-199508

89661COMPUTER, ENGINE CONTROL

main89661-02030iAE101..NAP199209-199302

sub89661-02110

main89661-02040iAE101..NAP..D..USA199209-199308

CALIFORNIA SPEC

sub89661-02140

main89661-02050iAE102..NAP..4FC199209-199302

sub89661-02090

main89661-02060iAE102..NAP..5F199209-199302

sub89661-02100

main89661-02070iAE102..NAP..4FC..USA199209-199308

CALIFORNIA SPEC

sub89661-02120

main89661-02080iAE102..NAP..5F..N..USA199209-199308

CALIFORNIA SPEC

sub89661-02130

main89661-02090iAE102..NAP..4FC199302-199308

sub89661-02091

main89661-02091iAE102..NAP..4FC199308-199409

main89661-02100iAE102..NAP..5F199302-199308

sub89661-02101

main89661-02101iAE102..NAP..5F199308-199409

main89661-02110iAE101..NAP199302-199308

sub89661-02111

main89661-02111iAE101..NAP199308-199409

main89661-02120iAE102..NAP..4FC..USA199308-199409

CALIFORNIA SPEC

main89661-02130iAE102..NAP..5F..N..USA199308-199409

CALIFORNIA SPEC

main89661-02140iAE101..NAP..D..USA199308-199409

CALIFORNIA SPEC

main89661-02150iAE102..NAP..4FC199409-199508

main89661-02160iAE102..NAP..5F199409-199508

main89661-02170iAE101..NAP199409-199508

main89661-02180iAE101..NAP..D..USA199409-199508

CALIFORNIA SPEC

main89661-02190iAE101..NAP..5F..D;AE101..NAP..5F..N..CND199508-199608

main89661-02200iAE101..NAP..3FC..D;AE101..NAP..3FC..N..CND199508-199601

sub89661-02201

main89661-02201iAE101..NAP..3FC..D;AE101..NAP..3FC..N..CND199601-199608

main89661-02210iAE102..NAP..5F..N199508-199608

main89661-02220iAE102..NAP..4FC..N199508-199608

PART NUMBER LABEL=89661-02220

main89661-02230iAE101..NAP..5F..D..USA199508-199608

TAIWAN SPEC

main89661-02240iAE101..NAP..3FC..D..USA199508-199601

TAIWAN SPEC

sub89661-02241

main89661-02241iAE101..NAP..3FC..N..USA199601-199608

TAIWAN SPEC

main89661-02250iAE102..NAP..5F..E199508-199608

main89661-02260iAE102..NAP..4FC..E199508-199608

PART NUMBER LABEL=89661-02260

main89661-02270iAE101..NAP..5F..D;AE101..NAP..5F..N..CND199608

main89661-02280iAE101..NAP..3FC..D;AE101..NAP..3FC..N..CND199608

main89661-02290iAE102..NAP..5F..N199608

main89661-02300iAE102..NAP..4FC..N199608

main89661-02310iAE101..NAP..5F..D..USA199608

TAIWAN SPEC

main89661-02320iAE101..NAP..3FC..D..USA199608

TAIWAN SPEC

main89661-02330iAE102..NAP..5F..E199608

main89661-02340iAE102..NAP..4FC..E199608

main89661-1A540iAE102..NAP..4FC..N199508-199608

PART NUMBER LABEL=89661-1A540

main89661-1A640iAE102..NAP..4FC..E199508-199608

PART NUMBER LABEL=89661-1A640

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02030iAE10#..NAP199209-199508

main89667-02040iAE10#..NAP199508

(L)

main89667-12120iAE102..NAP..4FC199508-199608

(J)

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02010iAE10#..NAP199209

(L)

main89668-12050iAE102..NAP..4FC199508-199608

(J)

9011906390

main90119-06390

9011906539

main90119-06539

9017906216

main90179-06216

9043012221

main90430-12221

9165160614

main91651-60614

9331914006

main93319-14006

9331915010

main93319-15010

19 parts on this diagram · 1 diagram in section
