EPC Data

REAR DOOR LOCK & HANDLE

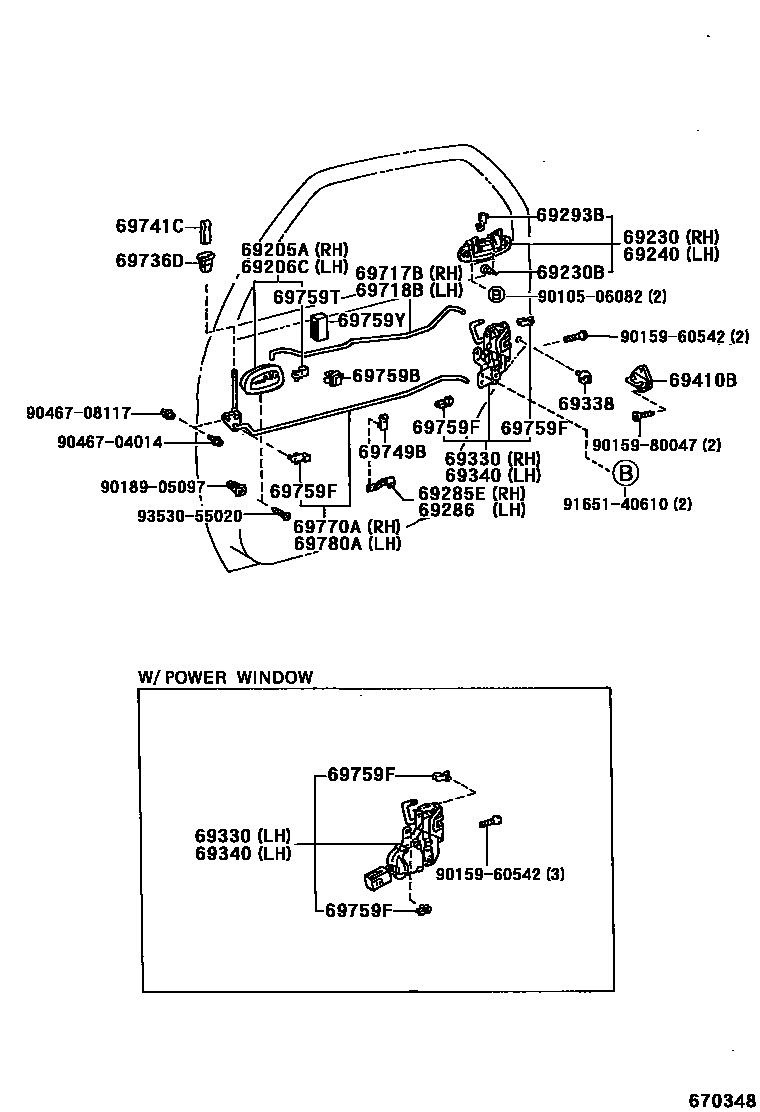

Parts diagram
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-02030-B0i199209-199405
SHADOW GRAY,TRIM1#
sub69205-02031
main69205-02030-J0i199209-199405
DARK BLUE,TRIM8#
sub69205-02031
main69205-02030-K0i199209-199405
TAUPE,TRIM9#
sub69205-02031
main69205-02031-B0i199405-199608
SHADOW GRAY,TRIM1#
main69205-02031-E1i199508-199608
OAK,TRIM4#
main69205-02031-J0i199405-199608
DARK BLUE,TRIM8#
main69205-02031-K0i199405-199508
TAUPE,TRIM9#
main69205-12140-E1i199608
OAK,TRIM4#
sub69205-12140
main69205-12140-P0i199608
SHADOW GRAY,TRIM1#
sub69205-12140
main69205-12140-W3i199608
DARK BLUE,TRIM8#
sub69205-12140
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-02030-B0i199209-199405
SHADOW GRAY,TRIM1#
sub69206-02031
main69206-02030-J0i199209-199405
DARK BLUE,TRIM8#
sub69206-02031
main69206-02030-K0i199209-199405
TAUPE,TRIM9#
sub69206-02031
main69206-02031-B0i199405-199608
SHADOW GRAY,TRIM1#
main69206-02031-E1i199508-199608
OAK,TRIM4#
main69206-02031-J0i199405-199608
DARK BLUE,TRIM8#
main69206-02031-K0i199405-199508
TAUPE,TRIM9#
main69206-12140-E1i199608
OAK,TRIM4#
sub69206-12140
main69206-12140-P0i199608
SHADOW GRAY,TRIM1#
sub69206-12140
main69206-12140-W3i199608
DARK BLUE,TRIM8#
sub69206-12140
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-02010i199209-199508
main69230-02020-A0i199409-199508
SUPER WHITE 2,040,(L)
main69230-02020-A0i199508
W(SIDE PROTECTION MOULDING(COLOR)),SUPER WHITE 2,040,(L)
main69230-02020-C0i199508
W(SIDE PROTECTION MOULDING(COLOR)),BLACK METALLIC,205
main69230-02020-C0i199409-199508
BLACK METALLIC,205
main69230-02020-D0i199409-199508
SUPER RED 2,3E5,(L)
main69230-02020-D0i199508
W(SIDE PROTECTION MOULDING(COLOR)),SUPER RED 2,3E5,(L)
main69230-02020-D1i199508
W(SIDE PROTECTION MOULDING(COLOR)),RED MICA M,3K4
main69230-02020-D1i199409-199508
RED MICA M,3K4
main69230-02020-D2i199409-199508
LT BEIGE M,3K9
main69230-02020-E0i199508
BEIGE ME,4M9
main69230-02020-E0i199508
W(SIDE PROTECTION MOULDING(COLOR)),BEIGE ME,4M9
main69230-02020-G0i199409-199508
LIGHT GREEN ME,6M8
main69230-02020-G2i199409-199608
MD GRAISHGREEN MC.GR,6N1,(L)
main69230-02020-G2i199508-199608
W(SIDE PROTECTION MOULDING(COLOR)),MD GRAISHGREEN MC.GR,6N1,(L)
main69230-02020-G3i199508
DARK GREEN MICA,6M1
main69230-02020-G3i199508
W(SIDE PROTECTION MOULDING(COLOR)),DARK GREEN MICA,6M1
main69230-02020-G4i199608
GREEN M.M.,6P5,(L)
main69230-02020-G4i199608
W(SIDE PROTECTION MOULDING(COLOR)),GREEN M.M.,6P5,(L)
main69230-02020-J4i199508-199608
W(SIDE PROTECTION MOULDING(COLOR)),LT PURPLISH BLUE M.M,8K1,(L)
main69230-02020-J4i199409-199608
LT PURPLISH BLUE M.M,8K1,(L)
main69230-02020-J5i199508
DARK BLUE MICA,8K8
main69230-02020-J5i199508
W(SIDE PROTECTION MOULDING(COLOR)),DARK BLUE MICA,8K8
main69230-02020-K0i199409-199508
GRAYISH PURPLE ME,923,(L)
main69230-02020-K1i199608
W(SIDE PROTECTION MOULDING(COLOR)),LAVENDER ME.,932,(L)
main69230-02020-K1i199608
LAVENDER ME.,932,(L)
main69230-12150-A0i199508
W(SIDE PROTECTION MOULDING(COLOR)),SUPER WHITE 2,040,(J)
sub69230-12150
main69230-12150-A0i199209-199508
SUPER WHITE 2,040,(J)
sub69230-12150
main69230-12150-B0i199209-199409
SILVER MICA M,192
sub69230-12150
main69230-12150-C0i199508
W(SIDE PROTECTION MOULDING(COLOR)),BLACK M,205
sub69230-12150
main69230-12150-C0i199209-199508
BLACK M,205
sub69230-12150
main69230-12150-D0i199209-199508
SUPER RED 2,3E5,(J)
sub69230-12150
main69230-12150-D0i199508
W(SIDE PROTECTION MOULDING(COLOR)),SUPER RED 2,3E5,(J)
sub69230-12150
main69230-12150-D2i199209-199508
RED MICA ME,3K4
sub69230-12150
main69230-12150-D2i199508
W(SIDE PROTECTION MOULDING(COLOR)),RED MICA ME,3K4
sub69230-12150
main69230-12150-D3i199209-199309
ROSE GRAPHITE MI ME,3K5
sub69230-12150
main69230-12150-D4i199209-199508
LT BEIGE ME,3K9
sub69230-12150
main69230-12150-E1i199508
W(SIDE PROTECTION MOULDING(COLOR)),LT. BEIGE ME,4M9
sub69230-12150
main69230-12150-E1i199508
LT. BEIGE ME,4M9
sub69230-12150
main69230-12150-G1i199409-199608
MD GRAISHGREEN MC.GR,6N1,(J)
sub69230-12150
main69230-12150-G1i199508-199608
W(SIDE PROTECTION MOULDING(COLOR)),MD GRAISHGREEN MC.GR,6N1,(J)
sub69230-12150
main69230-12150-G2i199309-199508
LIGHT GREEN ME.,6M8
sub69230-12150
main69230-12150-G5i199508
W(SIDE PROTECTION MOULDING(COLOR)),DK GREEN MICA,6M1
sub69230-12150
main69230-12150-G5i199508
DK GREEN MICA,6M1
sub69230-12150
main69230-12150-G9i199608
GREEN M.M.,6P5,(J)
sub69230-12150
main69230-12150-G9i199608
W(SIDE PROTECTION MOULDING(COLOR)),GREEN M.M.,6P5,(J)
sub69230-12150
main69230-12150-H0i199209-199408
DEEP TURQUOISE ME,747
sub69230-12150
main69230-12150-J0i199209-199409
LIGHT BLUE M M,8J6
sub69230-12150
main69230-12150-J1i199209-199409
DARK BLUE MICA M,8J7
sub69230-12150
main69230-12150-J5i199409-199608
LT PURPLISH BLUE M.M,8K1,(J)
sub69230-12150
main69230-12150-J5i199508-199608
W(SIDE PROTECTION MOULDING(COLOR)),LT PURPLISH BLUE M.M,8K1,(J)
sub69230-12150
main69230-12150-J7i199508
DARK BLUE MC.,8K8
sub69230-12150
main69230-12150-J7i199508
W(SIDE PROTECTION MOULDING(COLOR)),DARK BLUE MC.,8K8
sub69230-12150
main69230-12150-K1i199409-199508
GRAYISH PURPLE ME,923,(J)
sub69230-12150
main69230-12150-K2i199608
LAVENDER ME.,932,(J)
sub69230-12150
main69230-12150-K2i199608
W(SIDE PROTECTION MOULDING(COLOR)),LAVENDER ME.,932,(J)
sub69230-12150
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
main90080-54005i199209-199508
main90541-04014i199508
W(SIDE PROTECTION MOULDING(COLOR))
main90541-04014i199209-199508
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-02010i199209-199508
main69240-02020-A0i199409-199508
SUPER WHITE 2,040,(L)
main69240-02020-A0i199508
W(SIDE PROTECTION MOULDING(COLOR)),SUPER WHITE 2,040,(L)
main69240-02020-C0i199508
W(SIDE PROTECTION MOULDING(COLOR)),BLACK METALLIC,205
main69240-02020-C0i199409-199508
BLACK METALLIC,205
main69240-02020-D0i199409-199508
SUPER RED 2,3E5,(L)
main69240-02020-D0i199508
W(SIDE PROTECTION MOULDING(COLOR)),SUPER RED 2,3E5,(L)
main69240-02020-D1i199409-199508
RED MICA M,3K4
main69240-02020-D1i199508
W(SIDE PROTECTION MOULDING(COLOR)),RED MICA M,3K4
main69240-02020-D2i199409-199508
LT BEIGE M,3K9
main69240-02020-E0i199508
W(SIDE PROTECTION MOULDING(COLOR)),BEIGE ME,4M9
main69240-02020-E0i199508
BEIGE ME,4M9
main69240-02020-G0i199409-199508
LIGHT GREEN ME,6M8
main69240-02020-G2i199508-199608
W(SIDE PROTECTION MOULDING(COLOR)),MD GRAISHGREEN MC.GR,6N1,(L)
main69240-02020-G2i199409-199608
MD GRAISHGREEN MC.GR,6N1,(L)
main69240-02020-G3i199508
W(SIDE PROTECTION MOULDING(COLOR)),DARK GREEN MICA,6M1
main69240-02020-G3i199508
DARK GREEN MICA,6M1
main69240-02020-G4i199608
W(SIDE PROTECTION MOULDING(COLOR)),GREEN M.M.,6P5,(L)
main69240-02020-G4i199608
GREEN M.M.,6P5,(L)
main69240-02020-J4i199409-199608
LT PURPLISH BLUE M.M,8K1,(L)
main69240-02020-J4i199508-199608
W(SIDE PROTECTION MOULDING(COLOR)),LT PURPLISH BLUE M.M,8K1,(L)
main69240-02020-J5i199508
W(SIDE PROTECTION MOULDING(COLOR)),DARK BLUE MICA,8K8
main69240-02020-J5i199508
DARK BLUE MICA,8K8
main69240-02020-K0i199409-199508
GRAYISH PURPLE ME,923,(L)
main69240-02020-K1i199608
LAVENDER ME.,932,(L)
main69240-02020-K1i199608
W(SIDE PROTECTION MOULDING(COLOR)),LAVENDER ME.,932,(L)
main69240-12150-A0i199508
W(SIDE PROTECTION MOULDING(COLOR)),SUPER WHITE 2,040,(J)
sub69240-12150
main69240-12150-A0i199209-199508
SUPER WHITE 2,040,(J)
sub69240-12150
main69240-12150-B0i199209-199408
SILVER MICA M,192
sub69240-12150
main69240-12150-C0i199209-199508
BLACK M,205
sub69240-12150
main69240-12150-C0i199508
W(SIDE PROTECTION MOULDING(COLOR)),BLACK M,205
sub69240-12150
main69240-12150-D0i199209-199508
SUPER RED 2,3E5,(J)
sub69240-12150
main69240-12150-D0i199508
W(SIDE PROTECTION MOULDING(COLOR)),SUPER RED 2,3E5,(J)
sub69240-12150
main69240-12150-D2i199508
W(SIDE PROTECTION MOULDING(COLOR)),RED MICA ME,3K4
sub69240-12150
main69240-12150-D2i199209-199508
RED MICA ME,3K4
sub69240-12150
main69240-12150-D3i199209-199309
ROSE GRAPHITE MI ME,3K5
sub69240-12150
main69240-12150-D4i199209-199508
LT BEIGE ME,3K9
sub69240-12150
main69240-12150-E1i199508
W(SIDE PROTECTION MOULDING(COLOR)),LT. BEIGE ME,4M9
sub69240-12150
main69240-12150-E1i199508
LT. BEIGE ME,4M9
sub69240-12150
main69240-12150-G1i199409-199608
MD GRAISHGREEN MC.GR,6N1,(J)
sub69240-12150
main69240-12150-G1i199508-199608
W(SIDE PROTECTION MOULDING(COLOR)),MD GRAISHGREEN MC.GR,6N1,(J)
sub69240-12150
main69240-12150-G2i199309-199508
LIGHT GREEN ME.,6M8
sub69240-12150
main69240-12150-G5i199508
W(SIDE PROTECTION MOULDING(COLOR)),DK GREEN MICA,6M1
sub69240-12150
main69240-12150-G5i199508
DK GREEN MICA,6M1
sub69240-12150
main69240-12150-G9i199608
W(SIDE PROTECTION MOULDING(COLOR)),GREEN M.M.,6P5,(J)
sub69240-12150
main69240-12150-G9i199608
GREEN M.M.,6P5,(J)
sub69240-12150
main69240-12150-H0i199209-199408
DEEP TURQUOISE ME,747
sub69240-12150
main69240-12150-J0i199209-199409
LIGHT BLUE M M,8J6
sub69240-12150
main69240-12150-J1i199209-199409
DARK BLUE MICA M,8J7
sub69240-12150
main69240-12150-J5i199409-199608
LT PURPLISH BLUE M.M,8K1,(J)
sub69240-12150
main69240-12150-J5i199508-199608
W(SIDE PROTECTION MOULDING(COLOR)),LT PURPLISH BLUE M.M,8K1,(J)
sub69240-12150
main69240-12150-J6i199508
DARK BLUE MC,8K8
sub69240-12150
main69240-12150-J6i199508
W(SIDE PROTECTION MOULDING(COLOR)),DARK BLUE MC,8K8
sub69240-12150
main69240-12150-K1i199409-199508
GRAYISH PURPLE ME,923,(J)
sub69240-12150
main69240-12150-K2i199608
LAVENDER ME.,932,(J)
sub69240-12150
main69240-12150-K2i199608
W(SIDE PROTECTION MOULDING(COLOR)),LAVENDER ME.,932,(J)
sub69240-12150
69285EPLATE, REAR DOOR INSIDE LOCKING CONTROL, RH
main69285-02010i199209
69286PLATE, REAR DOOR INSIDE LOCKING CONTROL, LH
main69286-02010i199209
69293BSNAP, REAR DOOR OUTSIDE HANDLE
main69293-01050i199209-199508
RH
main69293-01050i199409-199508
RH,NATURAL
main69293-01050i199508
W(SIDE PROTECTION MOULDING(COLOR)),RH,NATURAL
main69293-01060i199209-199508
LH
main69293-01060i199409-199508
LH,YELLOW
main69293-01060i199508
W(SIDE PROTECTION MOULDING(COLOR)),LH,YELLOW
main69293-12030i199508
W(SIDE PROTECTION MOULDING(COLOR)),RH
main69293-12030i199209-199508
RH
main69293-12040i199508
W(SIDE PROTECTION MOULDING(COLOR)),LH
main69293-12040i199209-199508
LH
69330LOCK ASSY, REAR DOOR, RH
main69305-02010i199209-199403
sub69305-02011
main69305-02011i199403
main69305-02020i199209-199403
W(*PW)
sub69305-02021
main69305-02020i199209-199403
W(*EL)
sub69305-02021
main69305-02021i199403-199608
W(*PW)
main69305-02021i199403
W(*EL)
main69305-02030i199608
W(ANTI-THEFT DEVICE)
69338KNOB, CHILD PROTECTOR LOCK LEVER
main69338-02010i199209
69340LOCK ASSY, REAR DOOR, LH
main69306-02010i199209-199403
sub69306-02011
main69306-02011i199403
main69306-02020i199209-199403
W(*PW)
sub69306-02021
main69306-02020i199209-199403
W(*EL)
sub69306-02021
main69306-02021i199403-199608
W(*PW)
main69306-02021i199403
W(*EL)
main69306-02030i199608
W(ANTI-THEFT DEVICE)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-02010i199209-199308
sub69410-02011
main69410-02011i199308
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
main69713-02010i199209
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
main69714-02010i199209
69736DGUIDE, REAR DOOR LOCKING LINK
main69736-01010i199209
69741CKNOB, REAR DOOR LOCK CONTROL
main69741-02020-B0i199209
SHADOW GRAY,TRIM1#
main69741-02020-E1i199508
OAK,TRIM4#
main69741-02020-J0i199209
DARK BLUE,TRIM8#
main69741-02020-K0i199209-199508
TAUPE,TRIM9#
69749BCLAMP, REAR DOOR LOCK LINK
main69749-12080i199209
69759BSNAP, REAR DOOR LOCK CYLINDER
main69749-12070i199211
main69749-50020i199209-199211
69759FSNAP, REAR DOOR LOCK CONTROL LINK
main69759-20020i199209
NATURAL
main69759-20030i199209
LIGHT BLUE
main69759-20080i199209
ORANGE
main69759-20090i199209
PINK
69759TSNAP, REAR DOOR INSIDE HANDLE
main69759-01030i199209-199608
LH
main69759-01040i199209-199608
RH
main69759-22040i199608
LH
main69759-22050i199608
RH
69759YSILENCER, REAR DOOR LOCK LINK
main69759-12100i199605
60 X 40
main69759-30021i199605
80 X 40
main69759-30021i199209-199605
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-02010i199209
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
main69780-02010i199209
9010506082
main90105-06082
9015960542
main90159-60542
9015980047
main90159-80047
9018905097
main90189-05097
9046704014
main90467-04014
9046708117
main90467-08117
9165140610
main91651-40610
9353055020
main93530-55020

31 parts on this diagram · 1 diagram in section

REAR DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
