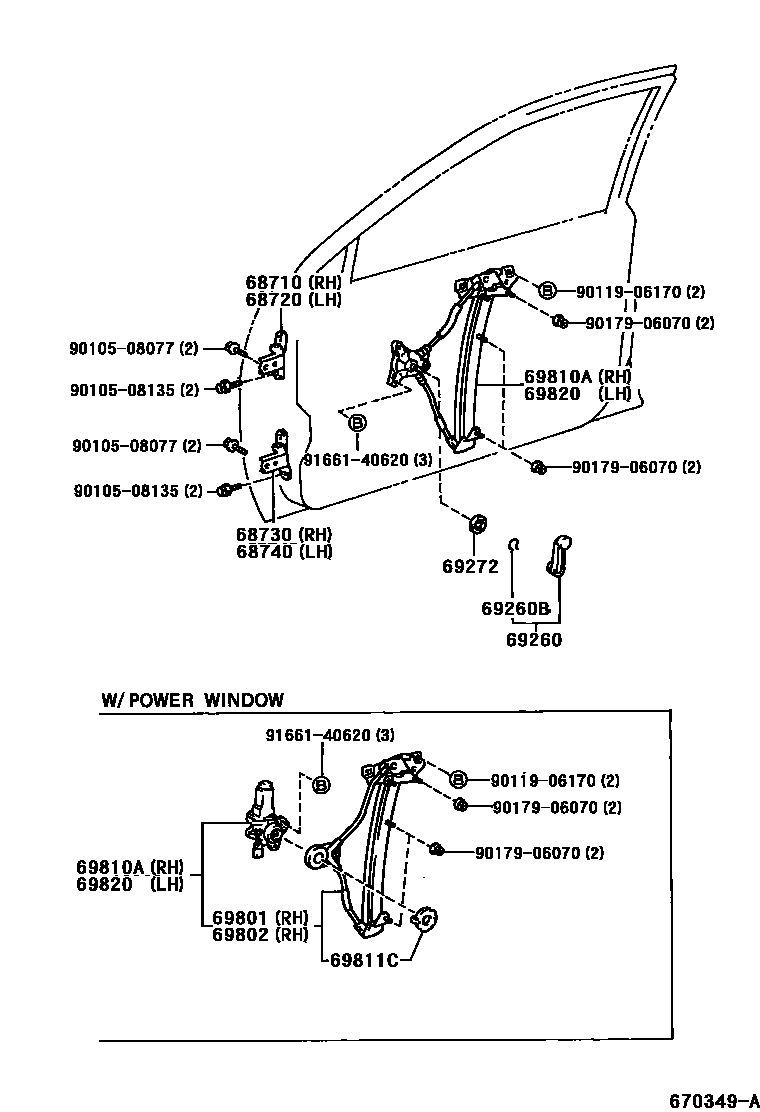

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02010iAE10#..NAP199209

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02010iAE10#..NAP199209

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02010iAE10#..NAP199209

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02010iAE10#..NAP199209

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-01020-B0iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199209

SHADOW GRAY,TRIM1#

main69260-01020-E4iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199508

OAK,TRIM4#

main69260-01020-J1iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199209

DARK BLUE,TRIM8#

main69260-01020-K0iAE101..NAP..D;AE102..NAP..N199209-199508

TAUPE,TRIM9#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52001iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199209

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-01020iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199209

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02030iAE101..NAP..D..USA199608

W(*PW) OR (TAIWAN SPEC & W(ANTI-THEFT DEVICE)

main69801-02030iAE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND199209-199508

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02030iAE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND199209-199508

main69802-02030iAE101..NAP..D..USA199608

W(*PW) OR (TAIWAN SPEC & W(ANTI-THEFT DEVICE)

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02030iAE101..NAP..D;AE102..NAP..N199209-199312

sub69810-02031

main69810-02031iAE101..NAP..D;AE102..NAP..N199312-199402

sub69810-02032

main69810-02032iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199402

main69810-02050iAE102..NAP..CND;AE101..NAP..D..USA199209-199402

W(POWER WINDOW)

sub69810-02051

main69810-02050iAE101..NAP..N;AE102..NAP..E199209-199402

sub69810-02051

main69810-02051iAE101..NAP..D;AE102..NAP..N199402-199608

W(POWER WINDOW)

main69810-02051iAE102..NAP..E;AE101..NAP..N..USA199402

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-02060iAE101..NAP..D..USA199608

W(*PW) OR (TAIWAN SPEC & W(ANTI-THEFT DEVICE),RH

main69811-02060iAE10#..NAP..(E,N)199506-199508

RH

main69812-02050iAE101..NAP..D..USA199608

W(*PW) OR (TAIWAN SPEC & W(ANTI-THEFT DEVICE),LH

main69812-02050iAE10#..NAP199506-199508

LH

main69813-06010iAE10#..NAP199209-199506

sub69813-AA010

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02030iAE101..NAP..D;AE102..NAP..N199209-199312

sub69820-02031

main69820-02031iAE101..NAP..D;AE102..NAP..N199312-199402

sub69820-02032

main69820-02032iAE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND199402

main69820-02050iAE101..NAP..D;AE102..NAP..N199209-199402

W(POWER WINDOW)

sub69820-02051

main69820-02050iAE101..NAP..N;AE102..NAP..E199209-199402

sub69820-02051

main69820-02051iAE101..NAP..D..USA199608

W(*PW) OR (TAIWAN SPEC & W(ANTI-THEFT DEVICE)

main69820-02051iAE101..NAP..D;AE102..NAP..N199402-199508

W(POWER WINDOW)

main69820-02051iAE102..NAP..E;AE101..NAP..N..USA199402

9010508077

main90105-08077

9010508135

main90105-08135

9011906170

main90119-06170

9017906070

main90179-06070

9166140620

main91661-40620

17 parts on this diagram · 1 diagram in section
