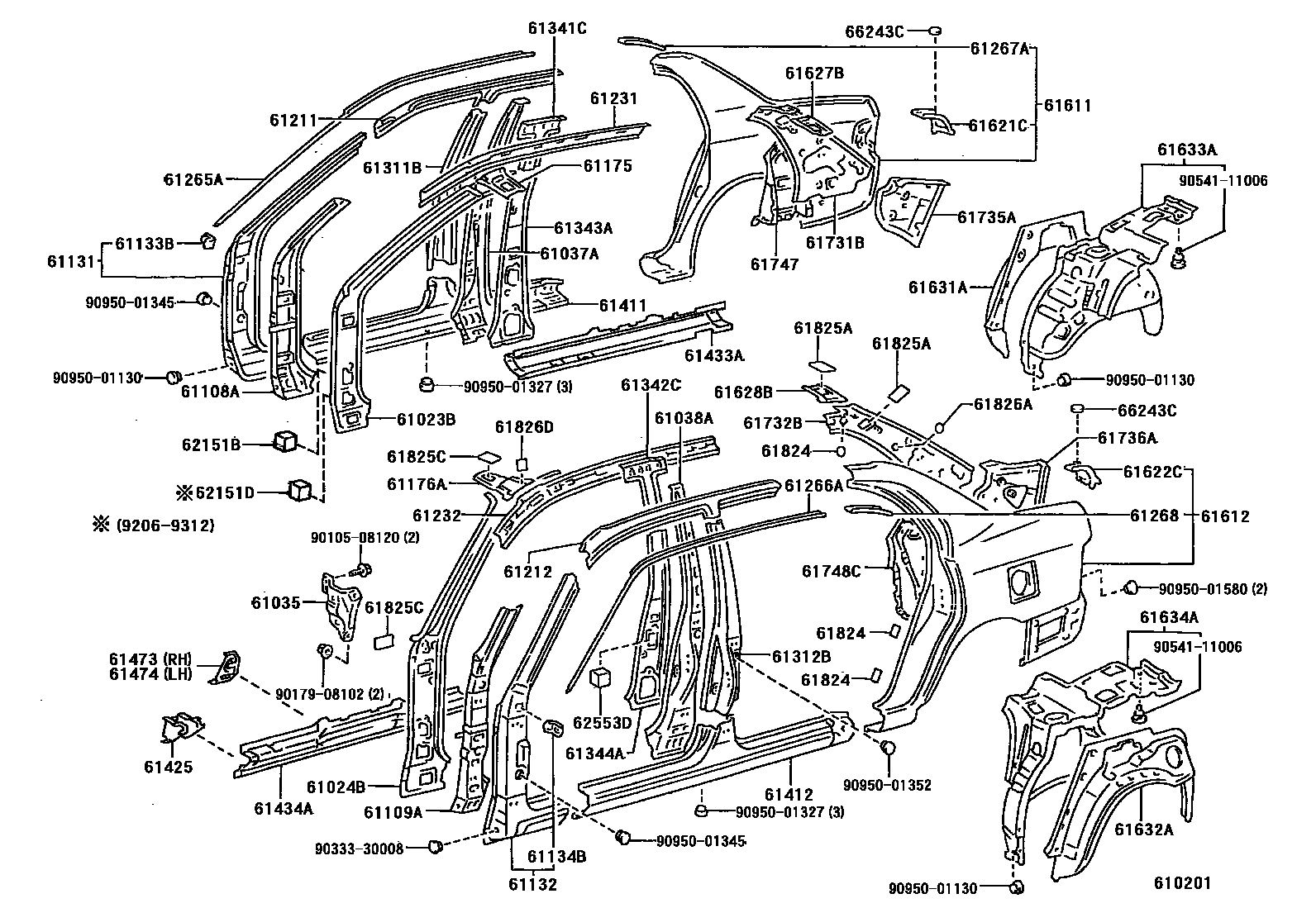

SIDE MEMBER
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61133BBRACKET, FRONT BODY PILLAR ,OUTER RH
61134BBRACKET, FRONT BODY PILLAR OUTER, LH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61265ACHANNEL, ROOF DRIP SIDE, CENTER RH
61266ACHANNEL, ROOF DRIP SIDE, CENTER LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61341CPILLAR, CENTER BODY, INNER UPPER RH
61342CPILLAR, CENTER BODY, INNER UPPER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61425REINFORCEMENT, ROCKER PANEL, NO.4 RH
61433AREINFORCEMENT, ROCKER PANEL, OUTER RH
61434AREINFORCEMENT, ROCKER PANEL, OUTER LH
61473PLATE, PILLAR NO.3, LOWER
61474PLATE, PILLAR NO.4, LOWER
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
61628BEXTENSION, QUARTER PANEL, UPPER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
CANADA STD PACKAGE
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
CANADA STD PACKAGE
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61736APANEL, ROOF SIDE, INNER REAR LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
(L)
(J)
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
(L)
(J)
61824PLATE, NOISE CONTROL, NO.1
(L)
W(SUN ROOF),(L)
(J)
61825APLATE, NOISE CONTROL, NO.2
(L)
(J)
61825CPAD, NOISE SHUTTER, NO.2
(L)
(J)
61826APLATE, NOISE CONTROL, NO.3
(L)
(J)
W(SUN ROOF),(J)
W(*SNR)
61826DPLATE, NOISE CONTROL, NO.3
62151BPAD, COWL SIDE SILENCER
62151DPAD, COWL SIDE SILENCER
62553DPAD, PILLAR, NO.3
66243CPROTECTOR, REAR BODY, NO.1
9010508120
main90105-08120
9017908102
main90179-08102
9033330008
main90333-30008
9054111006
main90541-11006
9095001130
main90950-01130
9095001327
main90950-01327
9095001345
main90950-01345
9095001352
main90950-01352
9095001580
main90950-01580
68 parts on this diagram · 1 diagram in section
