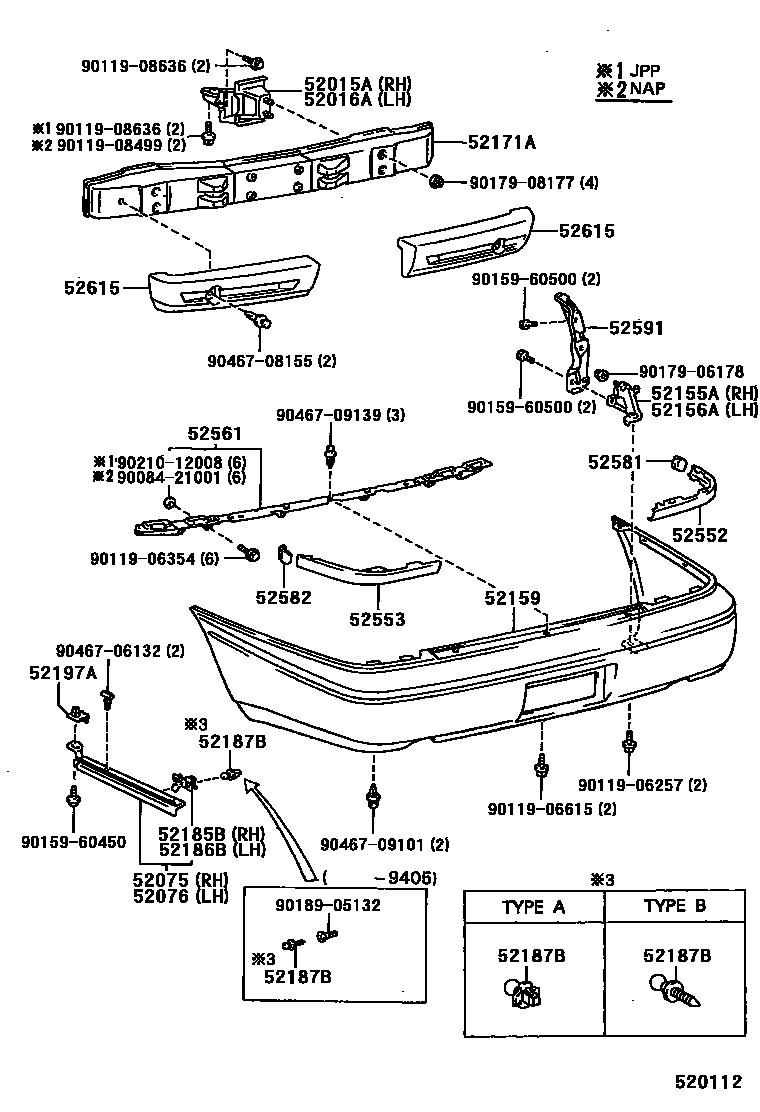

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52075RETAINER SUB-ASSY, REAR BUMPER SIDE, RH
52076RETAINER SUB-ASSY, REAR BUMPER SIDE, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
(L)
(J)
52156ASUPPORT, REAR BUMPER SIDE, LH
(L)
(J)
52159COVER, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
sub52171-12140
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52187BGUIDE, REAR BUMPER LOCATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
52197ABRACKET, REAR BUMPER SEAL, RH
52552FILLER, REAR BUMPER, RH
52553FILLER, REAR BUMPER, LH
52561RETAINER, REAR BUMPER, UPPER CENTER
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
52591SEAL, REAR BUMPER SIDE, RH
52615ABSORBER, REAR BUMPER ENERGY
RH
LH
9008421001
main90084-21001
9011906257
main90119-06257
9011906354
main90119-06354
9011906615
main90119-06615
9011908499
main90119-08499
9011908636
main90119-08636
9015960450
main90159-60450
9015960500
main90159-60500
9017906178
main90179-06178
9017908177
main90179-08177
9018905132
main90189-05132
9021012008
main90210-12008
9046706132
main90467-06132
9046708155
main90467-08155
9046709101
main90467-09101
9046709139
main90467-09139
35 parts on this diagram · 1 diagram in section
