FRONT AXLE ARM & STEERING KNUCKLE

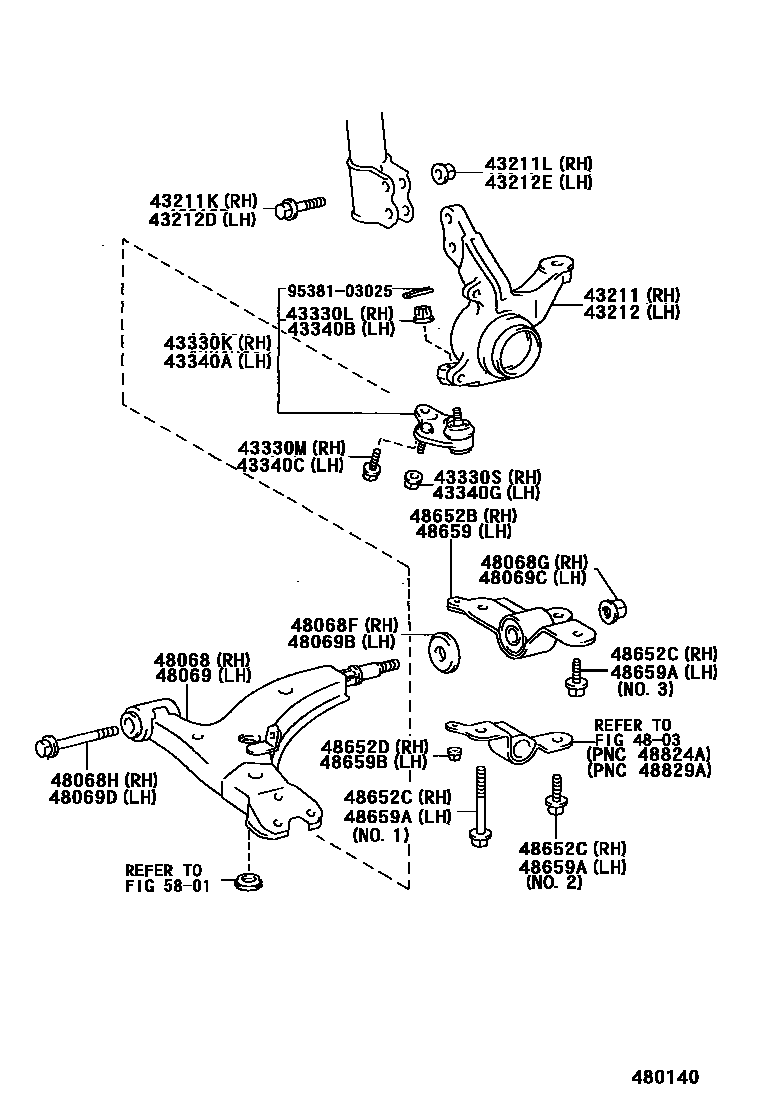

Parts diagram
43211KNUCKLE, STEERING, RH
main43211-12200i199209-199505
sub43211-12340
main43211-12220i199209-199505
W(POWER STEERING)
sub43211-12330
main43211-12230i199209-199505
W(*66)
sub43211-12320
sub90389-16020
main43211-12240i199209-199505
W(*66)
sub43211-12300
sub90389-16020
main43211-12240i199209-199505
W(*66 & POWER STEERING)
sub43211-12300
sub90389-16020
main43211-12300i199505
W(*66)
main43211-12300i199505
W(*66 & POWER STEERING)
main43211-12310i199508
main43211-12320i199505
W(*66)
main43211-12330i199505
W(POWER STEERING)
sub43211-12290
main43211-12340i199505-199508
sub43211-12310
43211KBOLT (FOR STEERING KNUCKLE RH)
main90105-15001i199408
OD=15.0
main90105-15007i199209-199408
OD=15.0
sub90105-15001
43211LNUT (FOR STEERING KNUCKLE RH)
main90179-15001i199209
43212KNUCKLE, STEERING, LH
main43212-12160i199209-199505
sub43212-12300
main43212-12180i199209-199505
W(POWER STEERING)
sub43212-12290
main43212-12190i199209-199505
W(*66)
sub43212-12280
sub90389-16020
main43212-12200i199209-199505
W(*66 & POWER STEERING)
sub43212-12260
sub90389-16020
main43212-12200i199209-199505
W(*66)
sub43212-12260
sub90389-16020
main43212-12260i199505
W(*66 & POWER STEERING)
main43212-12260i199505
W(*66)
main43212-12270i199508
main43212-12280i199505
W(*66)
main43212-12290i199505
W(POWER STEERING)
sub43212-12250
main43212-12300i199505-199508
sub43212-12270
43212DBOLT (FOR STEERING KNUCKLE LH)
main90105-15001i199408
OD=15.0
main90105-15007i199209-199408
OD=15.0
sub90105-15001
43212ENUT (FOR STEERING KNUCKLE LH)
main90179-15001i199209
43330KJOINT ASSY, LOWER BALL, FRONT RH
main43330-09040i199308-199508
main43330-09070i199508
sub43330-09230
main43330-19095i199209-199308
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
main90171-14003i199209
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
main90105-12156i199209
43330SNUT (FOR FRONT LOWER BALL JOINT RH)
main90179-12070i199209
43340AJOINT ASSY, LOWER BALL, FRONT LH
main43330-09040i199308-199508
main43330-09070i199508
sub43330-09230
main43330-19095i199209-199308
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
main90171-14003i199209
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
main90105-12156i199209
43340GNUT (FOR FRONT LOWER BALL JOINT LH)
main90179-12070i199209
4803
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
main48068-12130i199209-199508
main48068-12140i199209-199508
main48068-12160i199508
main48068-12170i199508-199610
sub48068-12171
main48068-12171i199610
48068FRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
main90080-22004i199209-199508
48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
main90179-14006i199209-199508
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
main90119-14023i199209-199508
main90119-14023i199508
NO.1
main90119-14041i199508
NO.2
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-12130i199209-199508
main48069-12140i199209-199508
main48069-12160i199508
main48069-12170i199508-199610
sub48069-12171
main48069-12171i199610
48069BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
main90080-22004i199209-199508
48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
main90179-14006i199209-199508
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
main90119-14023i199209-199508
main90119-14023i199508
NO.1
main90119-14041i199508
NO.2
48652BBRACKET, FRONT LOWER ARM, RH
main48075-02010i199209-199508
main48652-02020i199510
sub48652-12070
main48652-12070i199508-199510
48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)
main90119-10692i199209
*10-1.25PX29-23,NO.2
main90119-12125i199209
*12-1.25PX31-25.3,NO.3
main90119-12238i199209
*12-1.25PX75-38,NO.1
48652DNUT(FOR FRONT LOWER ARM BRACKET RH)
main90179-08072i199209-199408
main90179-08145i199408
sub90179-08123
48659BRACKET, FRONT LOWER ARM, LH
main48076-02010i199209-199508
main48659-02020i199510
main48659-12070i199508-199510
48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)
main90119-10692i199209
*10-1.25PX29-23,NO.2
main90119-12125i199209
*12-1.25PX31-25.3,NO.3
main90119-12238i199209
*12-1.25PX75-38,NO.1
48659BNUT(FOR FRONT LOWER ARM BRACKET LH)
main90179-08072i199209-199408
main90179-08145i199408
sub90179-08123
5801
9538103025
main95381-03025

31 parts on this diagram · 2 diagrams in section
