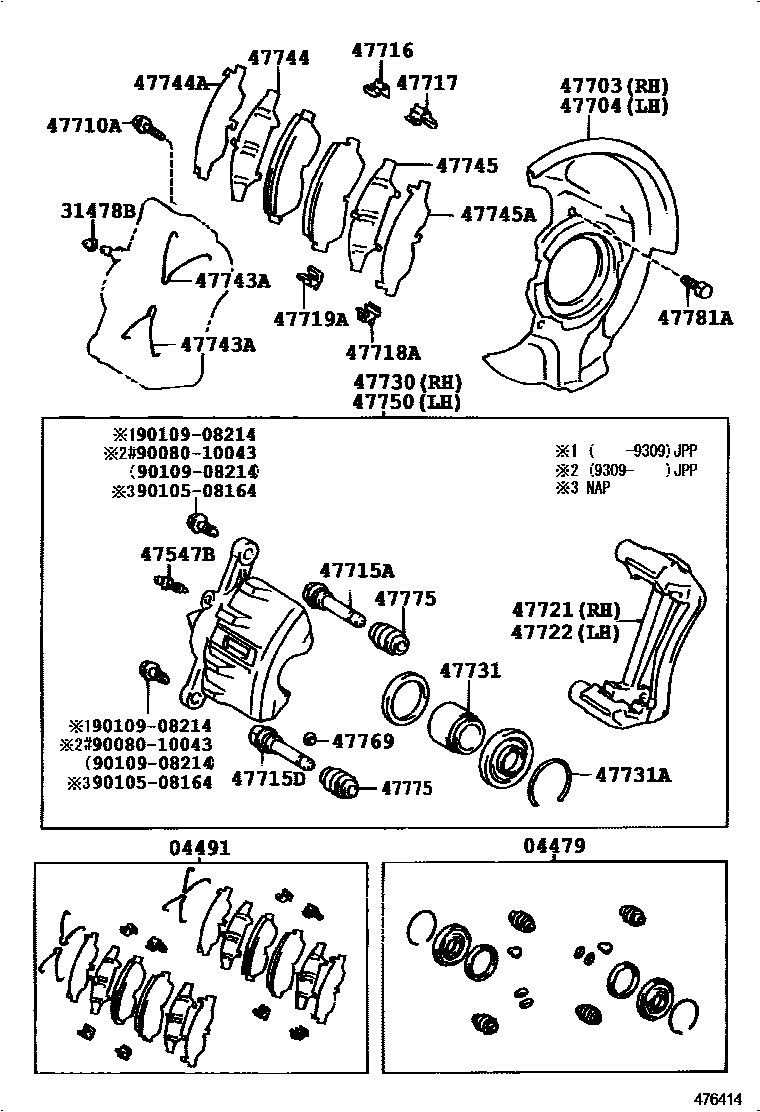

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-02030iAE10#..NAP199209

04491PAD KIT, DISC BRAKE, FRONT

main04491-02030iAE10#..NAP199209-199505

(L)

main04491-12640iAE10#..NAP199309-199505

(J)

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-01030×2iAE10#..NAP199209-199708

(L)

main31478-30010×2iAE10#..NAP199601-199708

(J)

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-01030×2iAE10#..NAP199209-199609

(L)

main47547-06010×2iAE10#..NAP199609-199708

(L)

main47547-20010×2iAE10#..NAP199309-199708

(J)

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-02010iAE10#..NAP199209

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-02010iAE10#..NAP199209

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAE10#..NAP199209

*12-1.25PX25.8-19.5

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-02010×2iAE10#..NAP199309-199507

(L)

main47715-02020×2iAE10#..NAP199507

(L)

main47715-24010×2iAE10#..NAP199209-199309

main47715-50030×2iAE10#..NAP199309-199508

(J)

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-02010×2iAE10#..NAP199507

(L)

main47715-24010×2iAE10#..NAP199209-199309

main47715-50010×2iAE10#..NAP199309-199508

(J)

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-02010×2iAE10#..NAP199508

main47716-33010×2iAE10#..NAP199209-199508

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-02020×2iAE10#..NAP199508

main47716-33020×2iAE10#..NAP199209-199508

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-02010×2iAE10#..NAP199508

main47717-33010×2iAE10#..NAP199209-199508

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-02020×2iAE10#..NAP199508

main47717-33020×2iAE10#..NAP199209-199508

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02030iAE10#..NAP199508

main47721-12210iAE10#..NAP199309-199508

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-02010iAE10#..NAP199209

(L)

main47722-12030iAE10#..NAP199309-199508

(J)

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02030iAE10#..NAP199209-199309

main47730-02040iAE10#..NAP199309

(L)

main47730-12450iAE10#..NAP199309-199508

(J)

47731PISTON, FRONT DISC BRAKE

main47731-02030×2iAE10#..NAP199209

(L)

main47731-12180×2iAE10#..NAP199309-199508

(J)

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90080-52047×2iAE10#..NAP199209

(L)

main90522-64003×2iAE10#..NAP199309-199508

(J)

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-02040×4iAE10#..NAP199209-199309

main47743-12090×4iAE10#..NAP199309-199508

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-33010×2iAE10#..NAP199209-199508

main47745-02020×2iAE10#..NAP199508

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-02030×2iAE10#..NAP199508

main47745-02020×2iAE10#..NAP199209-199309

main47745-33010×2iAE10#..NAP199309-199508

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-33010×2iAE10#..NAP199209-199508

main47745-02030×2iAE10#..NAP199508

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47744-02030×2iAE10#..NAP199508

main47745-02020×2iAE10#..NAP199209-199309

main47745-33010×2iAE10#..NAP199309-199508

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02030iAE10#..NAP199209-199309

main47750-02040iAE10#..NAP199309

(L)

main47750-12450iAE10#..NAP199309-199508

(J)

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-07010×2iAE10#..NAP199609

main47769-50010×2iAE10#..NAP199209-199609

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-07010×4iAE10#..NAP199609

main47775-20080×4iAE10#..NAP199209-199609

sub47775-30070

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iAE10#..NAP199209

9008010043

main90080-10043

9010508164

main90105-08164

9010908214

main90109-08214
