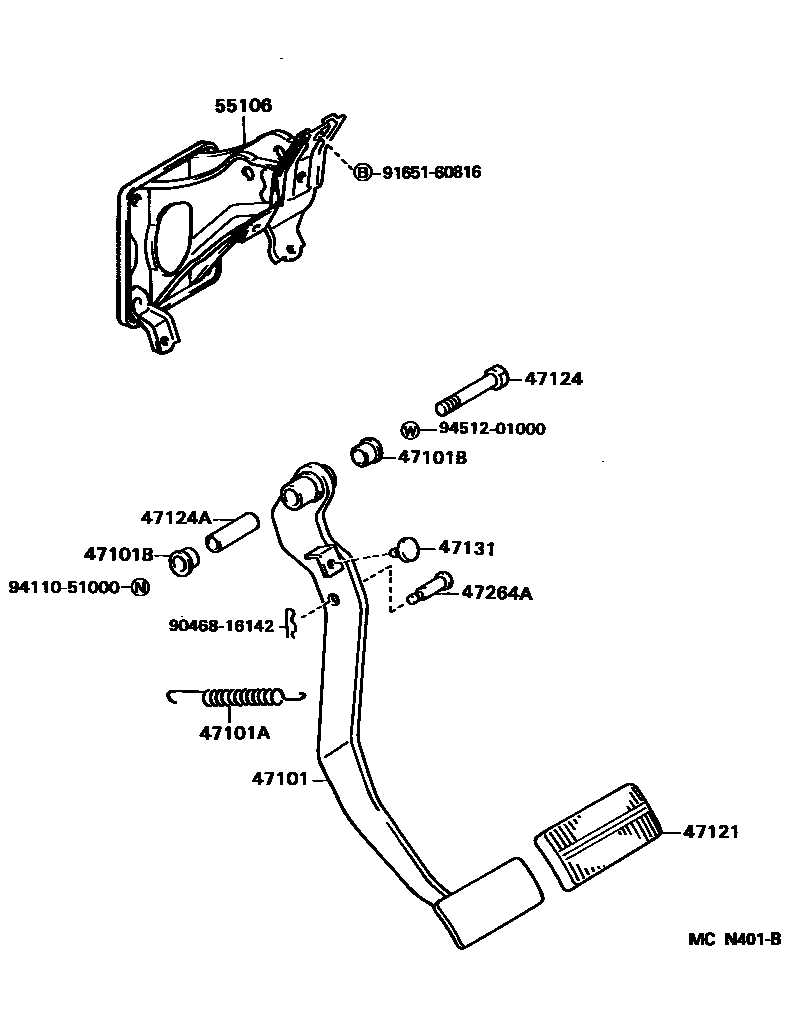

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02010iAE10#..NAP..5F199209

main47101-02020iAE10#..NAP..ATM199209

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14037iAE10#..NAP199209

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAE10#..NAP199209

47121PAD, BRAKE PEDAL

main31321-01020iAE10#..NAP..5F199209

sub31321-12040

main47121-01020iAE10#..NAP..ATM199209

47124SHAFT, BRAKE PEDAL

main90101-10015iAE10#..NAP199209

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90080-38014iAE10#..NAP199209

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAE10#..NAP199209

47264APIN(FOR PUSH ROD)

main47148-12020iAE10#..NAP199209-199210

main47148-12040iAE10#..NAP199210

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02010iAE10#..NAP199209

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
