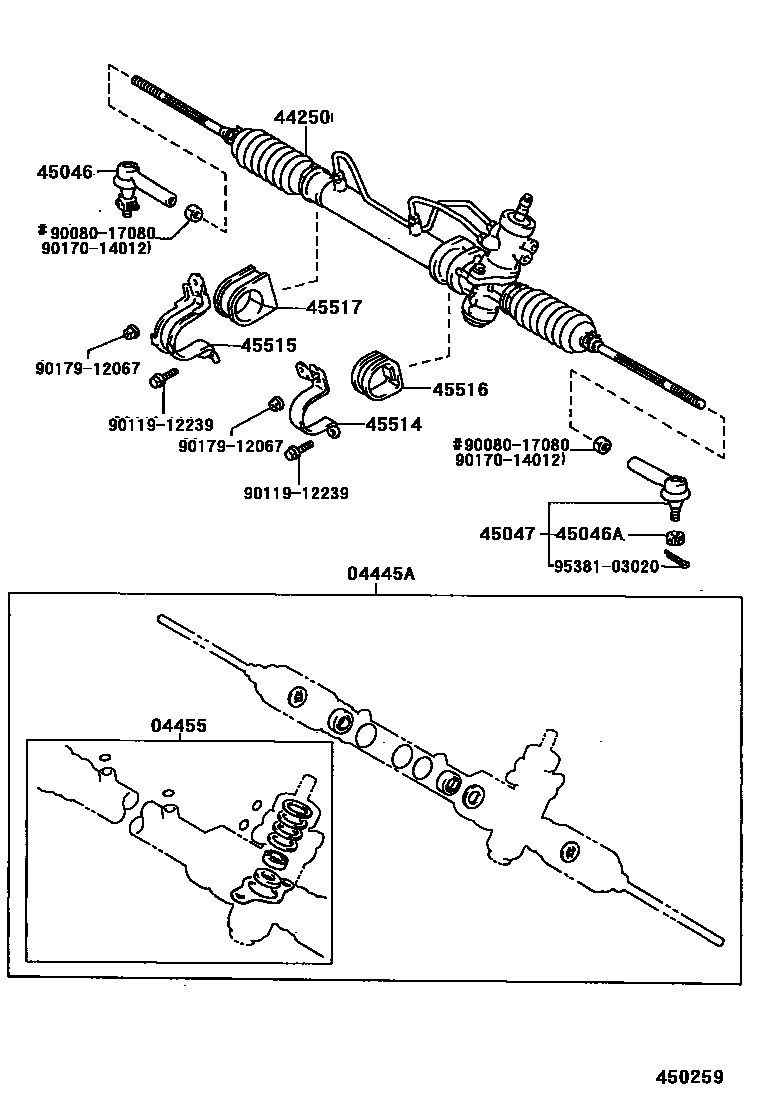

FRONT STEERING GEAR & LINK

0001 1W(POWER STEERING) 0002 1W(POWER STEERING) 0003 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-02011iAE10#..NAP199209-199708

CLAW WASHER,OD=35

main04445-02020iAE10#..NAP199408-199612

CLAW WASHER,OD=38

main04445-02040iAE10#..NAP199612-199708

CLAW WASHER,OD=38

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-02011iAE10#..NAP199209

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-02010iAE10#..NAP199209

45046END SUB-ASSY, TIE ROD, RH

main45046-09030iAE101..NAP..D199209

W(POWER STEERING)

main45046-19175iAE101..NAP..D199209-199505

main45046-29305iAE101..NAP..D199505

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAE10#..NAP199209

45047END SUB-ASSY, TIE ROD, LH

main45046-09030iAE101..NAP..D199209

W(POWER STEERING)

main45046-19175iAE101..NAP..D199209-199505

main45046-29305iAE101..NAP..D199505

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-02010iAE101..NAP..D199209

W(POWER STEERING)

main45514-02020iAE101..NAP..D199209

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-01041iAE10#..NAP199209

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-02010iAE10#..NAP199209

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-01041iAE10#..NAP199209

9008017080

main90080-17080

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

15 parts on this diagram · 3 diagrams in section
